Quick Details
-
Brand Name:
-
Rontech
-
Power:
-
5000 W
-
Dimension(L*W*H):
-
4000*2200*1560MM
-
Weight:
-
1800 KG
-
Production Capacity:
-
40-50pcs/min
-
Driven Type:
-
Electric
Quick Details
-
Voltage:
-
220V
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Rontech
-
Power:
-
5000 W
-
Dimension(L*W*H):
-
4000*2200*1560MM
-
Weight:
-
1800 KG
-
Production Capacity:
-
40-50pcs/min
-
Driven Type:
-
Electric
Product Description

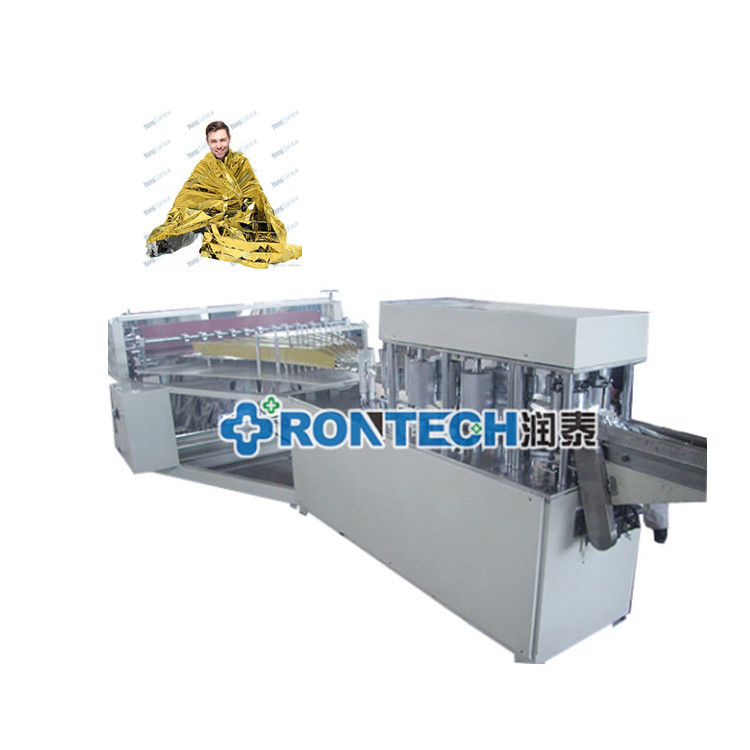

Model:YWJ-JJT -1600
Function:Folding of emergency blanket
Folding method
Width: fan fold
Length: Z folding
Discharging method:Using speed motor and conveyor belt to transport finished products
Width of raw material:1300-1600mm
Product size:1300*1900mm-1600*3100mm
Fan fold:Each fold 75mm
Z folding:Each fold 100mm
Material diameter:vacuum aluminum plating film
Inside diameter of paper tube:3 inches (75mm)
Material diameter: ≦1000mm
Production rate:less than 70 meters per minute
Supply voltage and frequency:Three-phase electricity380v，60hz Equipment power:3KW
Weight:1000kg
Production line area:6200mm*2500mm*1400mm
Air compressor:Need air compressor, buyer provid
Technical parameters
Emergency blanket folding machine production process: raw materials molding machine → Portrait → → fast
interrupt automatic folding → Release Paper Emergency blanket folding machine equipment configuration:
interrupt automatic folding → Release Paper Emergency blanket folding machine equipment configuration:
1,1.5KW Delta inverter motor drive.
2, the side of the two pairs of clamping rollers and the folding rollers is fixed and can not adjust the structure, between the rollers should ensure that the base plate parallel to each other and perpendicular. The gap between the pair of
rollers with the other side of the adjustment, adjustment range from 0 to 0.4 mm. Adjust the way with the handle with fine thread adjustment handle should be arranged outside the chassis and set tightening mechanism.
rollers with the other side of the adjustment, adjustment range from 0 to 0.4 mm. Adjust the way with the handle with fine thread adjustment handle should be arranged outside the chassis and set tightening mechanism.
3, in addition to the main motor drive and servo interrupt transmission arranged in the lower rack, other transmission should be arranged on a rack for easy adjustment and maintenance.
4, automatic counting device after a certain number of material with automatic folding quickly brought out a good
product.
5, breaking part of Panasonic 1KW servo motor, operating in the form of pre-acceleration, the pre-decelerating, and
pre-acceleration short segment, pre-decelerating long knife cut to ensure the highest speeds and accurately stop when the break after break.
pre-acceleration short segment, pre-decelerating long knife cut to ensure the highest speeds and accurately stop when the break after break.
6, the product length on the touch screen can be adjusted (adjustment range 1000mm ~ 3000mm).
7, emergency blanket folding machine production speed ≤70 meters per minute, breaking speed ≤70 meters.
8, break times count (continuous count and cleared at any time).
9, breaking length (length can be set continuously interrupted, control error of plus or minus 5 mm).
10,discharge using air shaft, raw tension from the magnetic brake. Note: Special specifications, demand-made
Specification
|
item
|
Disposable Emergency Blanket Folding Machine
|
|
Applicable Industries
|
Hotels, Home Use, Retail,Other
|
|
After Warranty Service
|
Video technical support, Online support, Spare parts, Field maintenance and repair service
|
|
Local Service Location
|
None
|
|
Showroom Location
|
None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC, Motor, Gear
|
|
Condition
|
New
|
|
Production Capacity
|
70pcs/min
|
|
Brand Name
|
rontech
|
|
Voltage
|
380v
|
|
Power
|
8kw
|
|
35Dimension(L*W*H)
|
11300*2500*2400mm
|
|
Weight
|
5000kg
|
|
Certification
|
ce
|
|
Warranty
|
1 Year
|
|
After-sales Service Provided
|
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
|

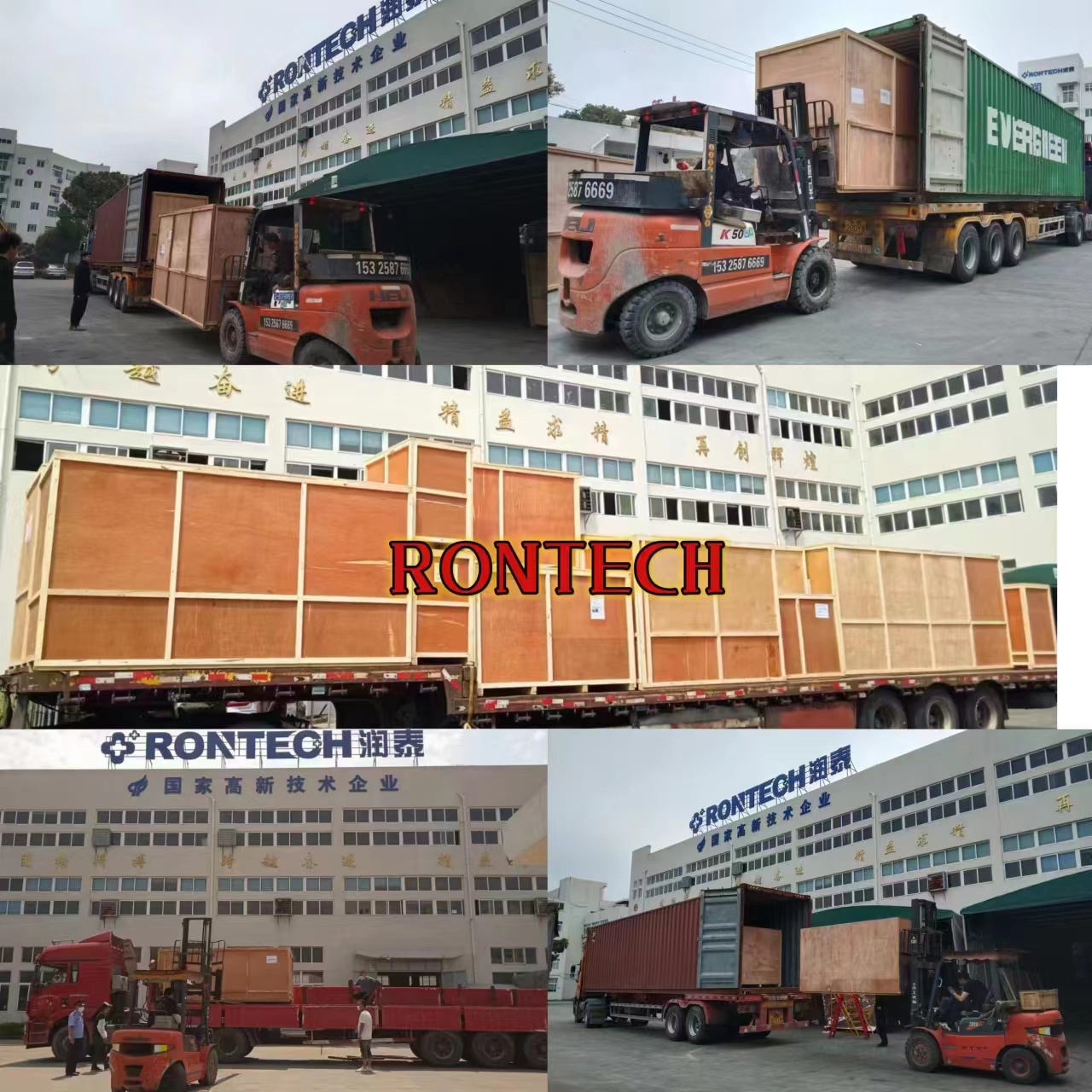

Packing & Delivery
Wooden case package
