Quick Details
-
Brand Name:
-
BAISU / SUNRAY
-
Year:
-
2019
-
Voltage:
-
440V/415V/380V/220V
-
Dimension(L*W*H):
-
5.4x3.3x4.0 m
-
Hollow part volume:
-
60L
-
Screw L/D Ratio:
-
24
-
Screw diameter (mm):
-
90 mm
-
Screw Heating Power(kW):
-
21.4 kW
-
Extruder Motor Power(kW):
-
37 kW
-
Mold Platen Size(Width)(mm):
-
900 mm
-
Mold Platen Size(Height)(mm):
-
950 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
1 m³/min
-
Die Head Heating Power(kW):
-
19 kW
-
Accumulator Capacity(L):
-
5 L
-
Power (kW):
-
100
-
Weight (T):
-
14
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
yes
-
Max Volume Application:
-
60L
-
Operation Language:
-
English
-
Machine Lifespan:
-
> 20 Years
-
Mould Lifespan:
-
> 1,000,000 Cycles
-
Production Area Dimension:
-
8.0x8.0x5.0m
-
Whole Line Pow. Consumption:
-
51.5 KW
-
Working Labor Demand:
-
2~3 Workers
-
Water Supply Demand:
-
7 Tons/hour
Quick Details
-
Clamping Force (kN):
-
360
-
Output (kg/h):
-
140 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BAISU / SUNRAY
-
Year:
-
2019
-
Voltage:
-
440V/415V/380V/220V
-
Dimension(L*W*H):
-
5.4x3.3x4.0 m
-
Hollow part volume:
-
60L
-
Screw L/D Ratio:
-
24
-
Screw diameter (mm):
-
90 mm
-
Screw Heating Power(kW):
-
21.4 kW
-
Extruder Motor Power(kW):
-
37 kW
-
Mold Platen Size(Width)(mm):
-
900 mm
-
Mold Platen Size(Height)(mm):
-
950 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
1 m³/min
-
Die Head Heating Power(kW):
-
19 kW
-
Accumulator Capacity(L):
-
5 L
-
Power (kW):
-
100
-
Weight (T):
-
14
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
yes
-
Max Volume Application:
-
60L
-
Operation Language:
-
English
-
Machine Lifespan:
-
> 20 Years
-
Mould Lifespan:
-
> 1,000,000 Cycles
-
Production Area Dimension:
-
8.0x8.0x5.0m
-
Whole Line Pow. Consumption:
-
51.5 KW
-
Working Labor Demand:
-
2~3 Workers
-
Water Supply Demand:
-
7 Tons/hour
Product Description

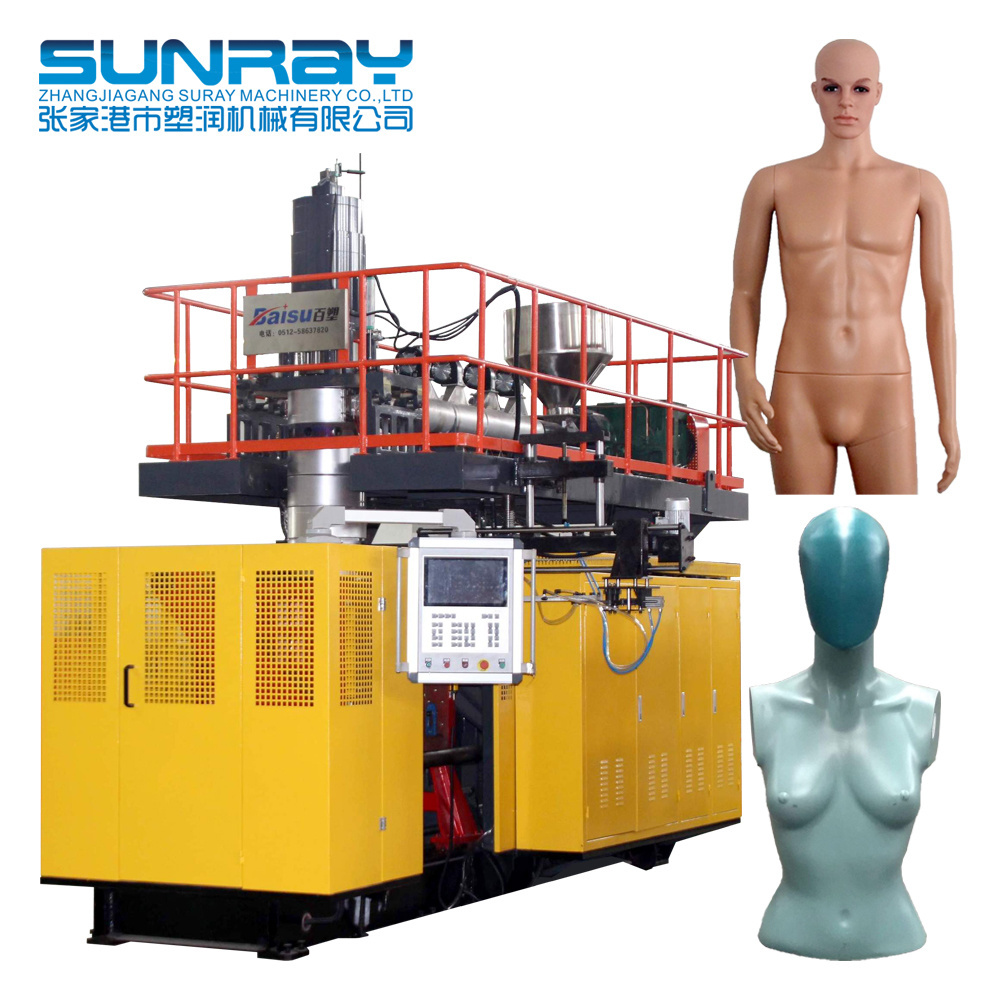

Extrusion Blow Molding Machine Application
|
SPECIFICATIONS & TECHNICAL DATA
|
|
|
|
|||
|
Extrusion Unit
|
Screw Diameter
|
mm
|
90
|
|||
|
|
Plasticizing Capacity
|
Kg/hour
|
140
|
|||
|
|
Temperature Control Zone
|
No.
|
5
|
|||
|
Accumulating Head
|
Accumulating Head Volume
|
L
|
5
|
|||
|
|
Max Ejection Weight
|
KG
|
3.8
|
|||
|
|
Max Product Net Weight
|
KG
|
2.5
|
|||
|
|
Max Die Diameter
|
mm
|
400
|
|||
|
Clamping Unit
|
Clamping Force
|
KN
|
360
|
|||
|
|
Platen Size
|
mm
|
800x900
|
|||
|
|
Opening Distance
|
mm
|
400~1050
|
|||
|
|
Max Mould Thickness
|
mm
|
600
|
|||
|
|
Max Mould Size
|
mm
|
750x1400
|
|||
|
Driving System
|
Extrusion Motor Power
|
KW
|
37
|
|||
|
|
Pump Motor Power
|
KW
|
22
|
|||
|
|
Machine Total Power
|
KW
|
102.5
|
|||
|
|
Average Power Consumption
|
KW
|
28.5
|
|||
Features & Advantages
Products Application

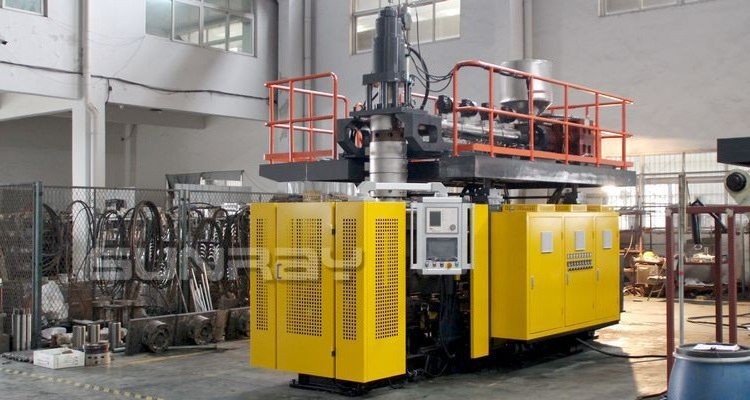

Machine Details
Total Machine Control System
Jerrycan & Drum Mould
Extrusion System
Hydraulic System
Our Service
Pre-Sales Service
After-Sales Service
Successful Cases
|
200L Blow Molding Machine SRB100N
|
|
|
|
Exported to
|
Nigeria
|
|
|
Year
|
2019
|
|
|
Target Product
|

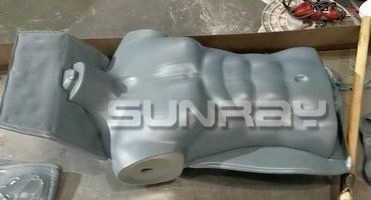

Whole body mannequin
|
|
|
Production
Capacity
|
Cycle time 130"
Output 27-28 Pcs/hour
|
|
|
Production Line
|
Mould, auto-loader, mixer, crusher, mixer, chiller, air compressor
|
|
|
60L Blow Moulding Machine SRB90
|
|
|
|
Exported to
|
Nigeria
|
|
|
Year
|
2019
|
|
|
Target
Product
|
Mannequin arms
Mannequin Base
|
|
|
Production
Capacity
|
Arm / Cycle Time 65" / 110 Pcs/hour
Base / Cycle Time 60" / 60 Pcs/hour
|
|
|
Production
Line
|
Mould, auto-loader, mixer, crusher, mixer, chiller, air compressor
|
|
