Automatic pe film making bag pickle bags packing machine
Automatic pe film making bag pickle bags packing machine
Automatic pe film making bag pickle bags packing machine
Automatic pe film making bag pickle bags packing machine
Automatic pe film making bag pickle bags packing machine
Automatic pe film making bag pickle bags packing machine
Automatic pe film making bag pickle bags packing machine
Automatic pe film making bag pickle bags packing machine

Automatic pe film making bag pickle bags packing machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $9200
≥3 Sets
US $9000
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Weight (KG):
450
Voltage:
220V /50-60Hz
Place of Origin:
Zhejiang, China
Brand Name:
Zon Pack
Dimension(L*W*H):
1400* 970* 1700
Name:
ZH-V420 vertical packing machine
Packing Material:
laminated film
Usage:
packing machine for food
Packing speed:
15-70bags/min
Max Film Width:
420mm
Range of measuring (g):
1500
Thickness of film (mm):
0.04-0.10
Bag size(mm):
(W) 60-200 (L)60-300
Power Parameter:
220V 50/60Hz 2.2KW

Quick Details

Function:
FILLING, Sealing
Packaging Type:
Bags, Film, Foil, Pouch
Packaging Material:
Wood
Weight (KG):
450
Voltage:
220V /50-60Hz
Place of Origin:
Zhejiang, China
Brand Name:
Zon Pack
Dimension(L*W*H):
1400* 970* 1700
Name:
ZH-V420 vertical packing machine
Packing Material:
laminated film
Usage:
packing machine for food
Packing speed:
15-70bags/min
Max Film Width:
420mm
Range of measuring (g):
1500
Thickness of film (mm):
0.04-0.10
Bag size(mm):
(W) 60-200 (L)60-300
Power Parameter:
220V 50/60Hz 2.2KW
Product Description
Technical Specification
Model
ZH-V420
Packing Speed
15-70 Bags / Min
Bag size(mm)
W:60-200 L:60-300
Bag making mode
Pillow bag, standing bag (gusseted),punch, Linked bag
Range of measuring (g)
1500
Maximum width of packing film (mm)
420
Thickness of film (mm)
0.04-0.10
Air consumption
0.4m3/min 0.8MPa
Packing Material
laminated film
Power Parameter
220V 50/60Hz 2.2KW
Package Volume (mm)
1550(L)*1150(W)*1750(H)
Gross Weight (kg)
450
Technical Feature
1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
3. Double-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
4. Perfect alarm system to make problem solved quickly.
5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
6. Machine can make pillow bag and standing bag (gusseted bag) according to customer's requirements. Machine also can make bag with punching hole & linked bag from 5-12bags and so on.

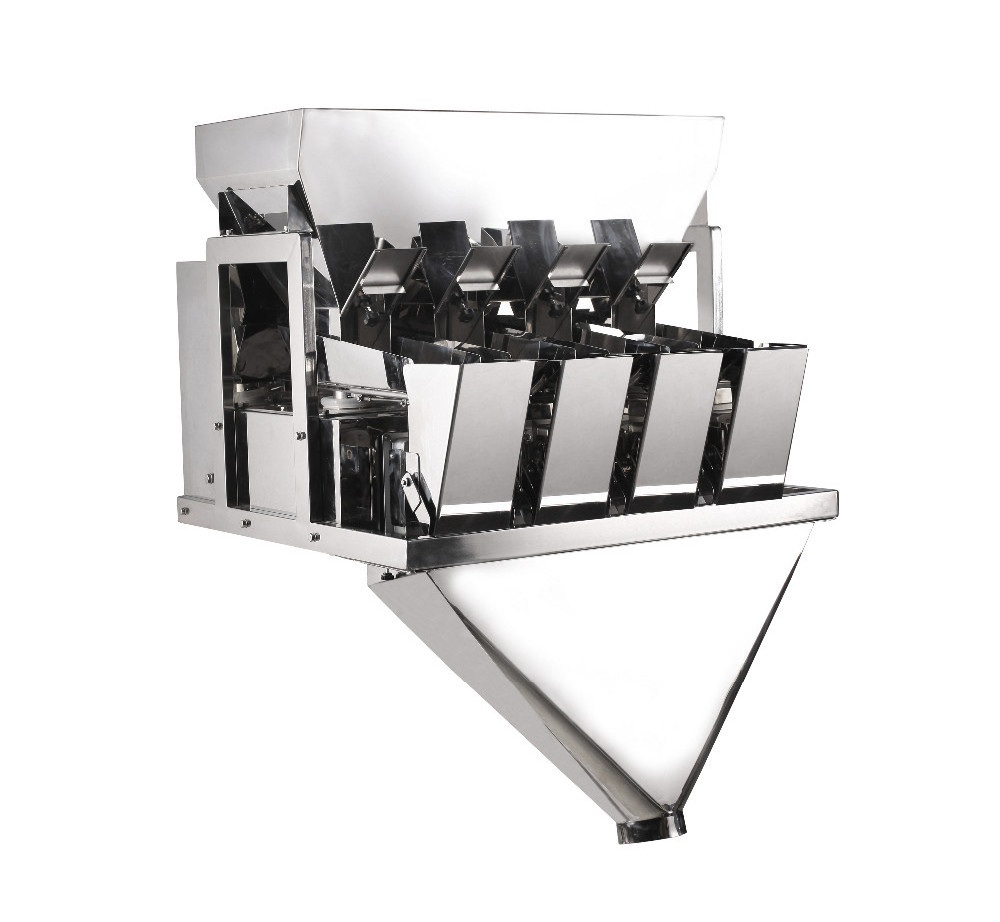

7. Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor, process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically.
You May Like
Our Company
Our products have undergone many professional certifications.
Our service
Packing & Delivery
Packaging Details
Film pack inside, Wooden case outside.
Delivery Time
Within 25 working days
Shipping Ways
By sea
By train
By plane
By t ruck
Note
We also can pack it according to the customer's special requirement.
