Quick Details
-
Brand Name:
-
TONGDA
-
Year:
-
2020
-
Voltage:
-
Customized to customer needs
-
Dimension(L*W*H):
-
4.9m*3.1m*3.2m
-
Hollow part volume:
-
1-5L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
80 mm
-
Screw Heating Power(kW):
-
19 kW
-
Extruder Motor Power(kW):
-
30 kW
-
Mold Platen Size(Width)(mm):
-
480 mm
-
Mold Platen Size(Height)(mm):
-
450 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
0.8 m³/min
-
Die Head Heating Power(kW):
-
10.7 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
80
-
Weight (T):
-
9
-
Rotary Cylinder Brand:
-
FESTO
-
Station:
-
Single Station
-
Suitable bottle:
-
1-5L
-
Key words:
-
Automatic Extrusion Blow Moulding Machine
-
Packing:
-
Wooden
-
Use:
-
Hollow Moulding
-
Parison Control:
-
MOOG
-
Max. Size of Mold:
-
480*450
-
Hydraulic valve:
-
Yuken
-
Color:
-
Blue
Quick Details
-
Clamping Force (kN):
-
110
-
Output (kg/h):
-
110 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TONGDA
-
Year:
-
2020
-
Voltage:
-
Customized to customer needs
-
Dimension(L*W*H):
-
4.9m*3.1m*3.2m
-
Hollow part volume:
-
1-5L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
80 mm
-
Screw Heating Power(kW):
-
19 kW
-
Extruder Motor Power(kW):
-
30 kW
-
Mold Platen Size(Width)(mm):
-
480 mm
-
Mold Platen Size(Height)(mm):
-
450 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
0.8 m³/min
-
Die Head Heating Power(kW):
-
10.7 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
80
-
Weight (T):
-
9
-
Rotary Cylinder Brand:
-
FESTO
-
Station:
-
Single Station
-
Suitable bottle:
-
1-5L
-
Key words:
-
Automatic Extrusion Blow Moulding Machine
-
Packing:
-
Wooden
-
Use:
-
Hollow Moulding
-
Parison Control:
-
MOOG
-
Max. Size of Mold:
-
480*450
-
Hydraulic valve:
-
Yuken
-
Color:
-
Blue
Product Description
HSll-12L

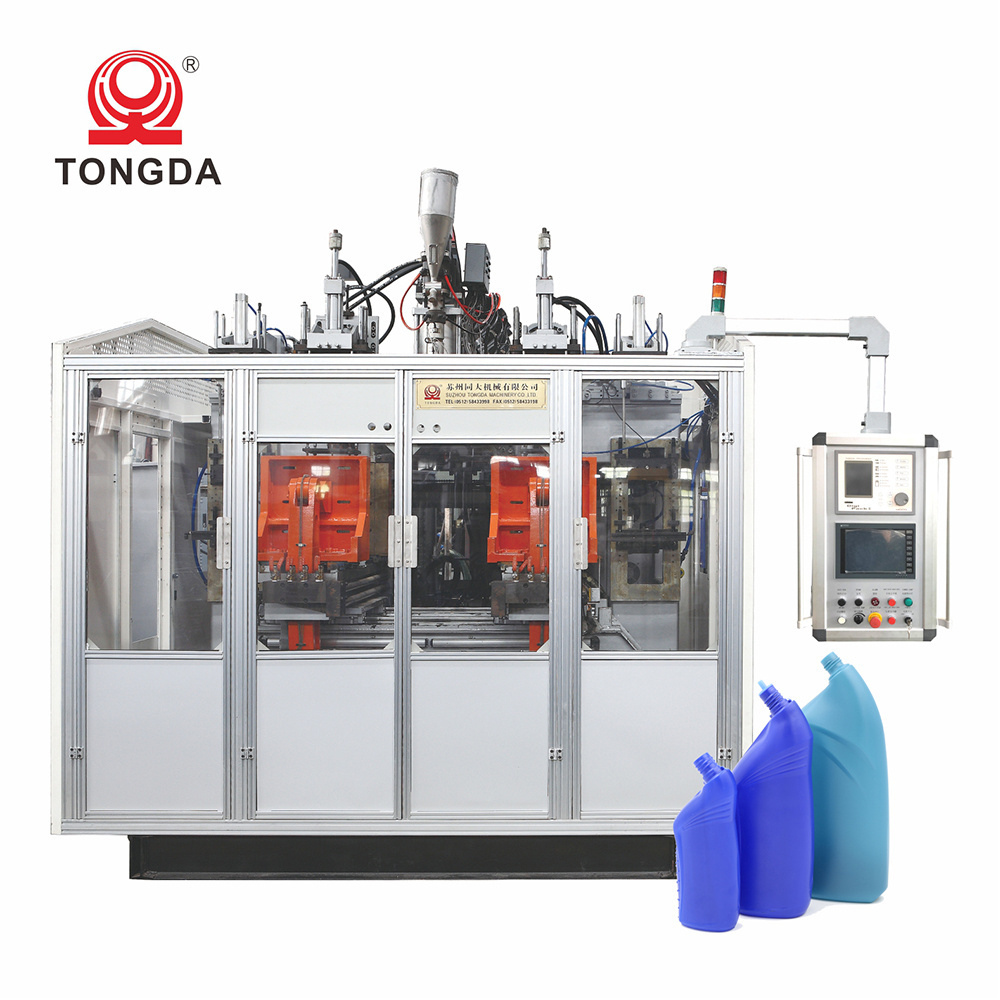

This is our best series machine. This is hydraulic servo system. The clamping unit is elbow style and the clamping force is more uniform. It is high speed and energy-saving. This machine is suitable for stacking product, jerry can, etc. It can be also equipped with several die-heads and then to make the small product.
|
MODEL
|
Units
|
HSII-12L
|
Remarks:
The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
|
|
Max. Product volume
|
L
|
12
|
|
|
Output of HDPE
|
kg/h
|
180
|
|
|
Clamping force
|
kn
|
158
|
|
|
Screw diametre
|
mm
|
110
|
|
|
Screw heating power
|
kw
|
21
|
|
|
Blow pressure
|
mpa
|
0.6
|
|
|
Size of machine
|
m
|
4.9x3.1x3.2
|
|
Product Details
Our Advantages
After-sales service
Arrange engineer to customer's factory
We supply the after-service online 24 hours
