Quick Details
-
Model Number:
-
Beihua
-
products name:
-
thin silicone rubber sheet
-
EMI Shielding Types:
-
Conductive Elastomers and rubber sheet
-
Processes:
-
injection ,extrued,extrusion,molded, vacuum press
-
Equipment Capabilities:
-
CNC Controlled
-
materal:
-
Silicone,fkm,NBR,HNBR,conductive rubber
-
Fillers:
-
silvered-plated aluminum,nickel graphite, silvered aluminum
-
item:
-
rubber sheet ,solid elastomer cord
-
Size:
-
1-5mm custom standard
-
hardness:
-
40-90 A soft
-
Compression:
-
30 to 80 % low compression force
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BRL
-
Model Number:
-
Beihua
-
products name:
-
thin silicone rubber sheet
-
EMI Shielding Types:
-
Conductive Elastomers and rubber sheet
-
Processes:
-
injection ,extrued,extrusion,molded, vacuum press
-
Equipment Capabilities:
-
CNC Controlled
-
materal:
-
Silicone,fkm,NBR,HNBR,conductive rubber
-
Fillers:
-
silvered-plated aluminum,nickel graphite, silvered aluminum
-
item:
-
rubber sheet ,solid elastomer cord
-
Size:
-
1-5mm custom standard
-
hardness:
-
40-90 A soft
-
Compression:
-
30 to 80 % low compression force

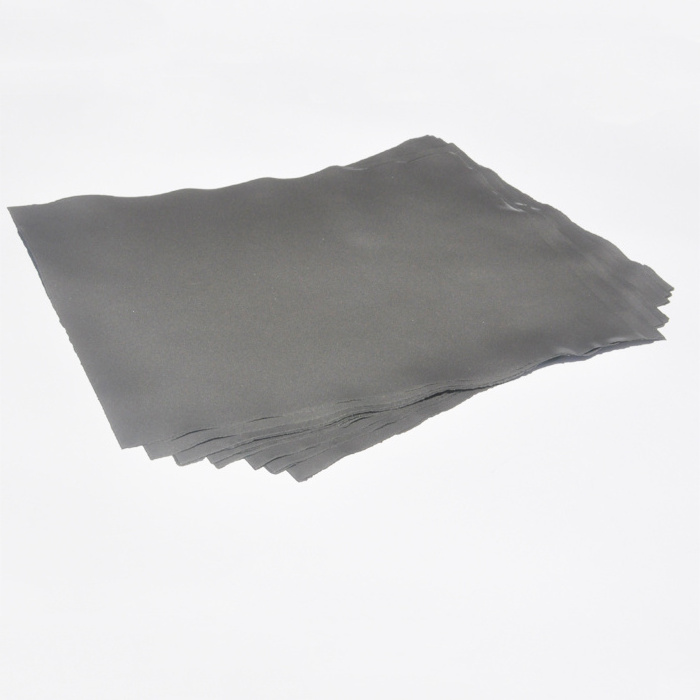

emi gasket sheet is made conductive by incorporating small conductive metal particles throughout the material.
It can provide an EMI-proof and watertight seal in narrow constructions.
Electrically conductive rubbers are typically used for EMI applications. But they are also useful for EMP protection, wave-guide applications and against static electricity. The rubber can be filled with silver, nickel, silvered glass,
silvered aluminium, or graphite (only for ESD) Commercial EMI applications often choose Nickel-graphite conductive rubber . or Graphite conductive rubber from a costs point of view,
while aerospace applications often call for Silver copper silicone conductive rubber to
meet
Mil-G-83528C specifications. In aerospace, fluorosilicone versions may also be used due to their chemical and
fuel resistance.
As the material shields high frequencies, electrically conductive rubber shows a shielding effect of 60 dB at 30MHz ~ 10GHz. Due to its excellent conductivity, grounding, and EMI shielding effect, it is well suited for communications equipment. The rubber can be manufactured in various shapes such as sheets, moulded parts, die-cut, strips, o-rings, etc.
As the material shields high frequencies, electrically conductive rubber shows a shielding effect of 60 dB at 30MHz ~ 10GHz. Due to its excellent conductivity, grounding, and EMI shielding effect, it is well suited for communications equipment. The rubber can be manufactured in various shapes such as sheets, moulded parts, die-cut, strips, o-rings, etc.
| Physical properties | ||||||
| Items | Standard | BRL-C-60 | BRL-NC-70 | BRL-SA-70 | BRL-SC-70 | BRL-SG-70 |
| Elastomer type | / | Silicone | Silicone | Silicone | Silicone | Silicone |
| Conductive filler | / | Carbon | Ni/C | Ag/Al | Ag/Cu | Ag/Glass |
| Density(g/cm3) | ASTM792 | 1.2±0.2 | 2.0±0.1 | 2.0±0.1 | 3.5±0.45 | 1.9±0.1 |
| Hardness (ShoreA) | ASTM2240 | 60±5 | 70±5 | 70±5 | 70±5 | 70±5 |
| Tensile strength (Mpa) | ASTM412 | 4 | 2.0 | 2.0 | 2.0 | 2.0 |
| Elongation at break(%) | ASTM412 | 300 | 100 | 200 | 300 | 200 |
| Compression (%) | ASTM395 | 30 | 25 | 30 | 35 | 30 |
| Operating temperature(℃) | Mil-83528 | -55~180 | -45~150 | -55~160 | -60~165 | -55~160 |
| Electrical properties | ||||||
| Volume resistivity (Ω-cm) | Mil-83528 | 10~50 | 0.1 | 0.008 | 0.004 | 0.01 |
| Volume resistivity after aging test (Ω-cm) | Mil-83528 | 10~50 | 0.1 | 0.01 | 0.01 | 0.01 |
| Shielding effectiveness(db) | Mil-83528 | 30~50 | 95~115 | 100~115 | 115~120 | 80~100 |
