Quick Details
-
Brand Name:
-
TONVA
-
Year:
-
since 1993
-
Voltage:
-
380V/220V/415V/480V
-
Dimension(L*W*H):
-
6.2x2.8x4m
-
Hollow part volume:
-
120L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
100 mm
-
Screw Heating Power(kW):
-
26 kW
-
Extruder Motor Power(kW):
-
55 kW
-
Mold Platen Size(Width)(mm):
-
1000 mm
-
Mold Platen Size(Height)(mm):
-
1200 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
1.0 m³/min
-
Die Head Heating Power(kW):
-
15 kW
-
Accumulator Capacity(L):
-
12 L
-
Power (kW):
-
122
-
Weight (T):
-
16
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw Material:
-
PE PP etc
-
Parison Controller:
-
MOOG 200point
-
View-stripe:
-
Optional
-
Multilayer:
-
Optional
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Clamping Force (kN):
-
500
-
Output (kg/h):
-
200 kg/h
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TONVA
-
Year:
-
since 1993
-
Voltage:
-
380V/220V/415V/480V
-
Dimension(L*W*H):
-
6.2x2.8x4m
-
Hollow part volume:
-
120L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
100 mm
-
Screw Heating Power(kW):
-
26 kW
-
Extruder Motor Power(kW):
-
55 kW
-
Mold Platen Size(Width)(mm):
-
1000 mm
-
Mold Platen Size(Height)(mm):
-
1200 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
1.0 m³/min
-
Die Head Heating Power(kW):
-
15 kW
-
Accumulator Capacity(L):
-
12 L
-
Power (kW):
-
122
-
Weight (T):
-
16
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw Material:
-
PE PP etc
-
Parison Controller:
-
MOOG 200point
-
View-stripe:
-
Optional
-
Multilayer:
-
Optional
-
Marketing Type:
-
Ordinary Product
Machine Description

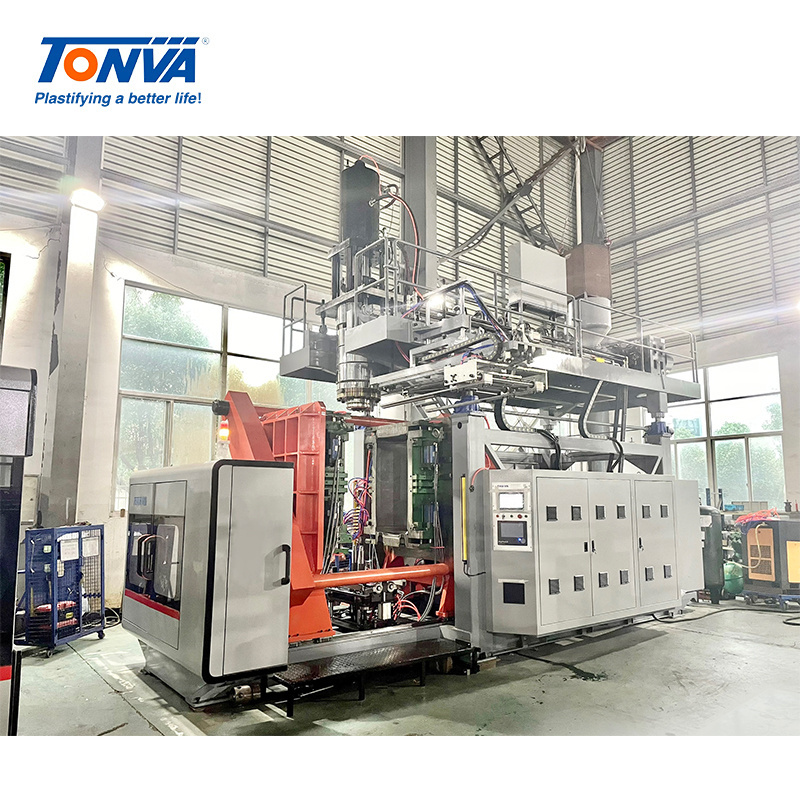

Accumulator Head Blow Molding Machine TVA-120L
|
Type: Extrusion Blow Molding Machine
|
Application: plastic drum etc
|
|
||
|
Model: TVA-120L
|
Material: PE etc
|
|
||
|
No. of station: Accumulator ,down blowing
|
|
Extruder diameter: 65mm
|
||
|
Main Featurs:
1. Suitable for HDPE 2. die head design with easily to change the material and color. 3. with Moog 200 point parision control system. 4. latest mold changing system, much faster and easier. 5. optimized hydraulic system, proportional pressure control 6. Adopts two pull-rod type closing-mold device by rack and pinion system.The large setting platen is suitable for various sizesof moulds 7. Simple structure in linear type ,easy in installation and maintation 8. Servo system 9. With robot arm take out the finished product 10. One to three multi-layers choose 11. Liftable extrusion platform for easy adjustment of the length of the blank,and widely used for various products; |
|
|
||
Product Application:
Suitable for kinds of plastic bottles and other large amount of hollow plastic products
Our Company
Our Service
Pre-Sales Service
* Inquiry and consult support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Provide training how to instal and use the machine.
* Engineers available to adjust machine overseas.
* Engineers available to adjust machine overseas.
FAQ
Q:How long is the guarantee time of your equipment?
A:We offer ONE year guarantee time free of charge, and all life after sales service.Constant back-up support is our best service tool.
Q:How can I install my machine when it arrives?
A:we could send our engineers to your country, they are all experienced in machine and working abroad,for testing and teaching your technicians how to run the machines.
Q:Do you offer after sales service?
A:yes ,we do offer.we could offer online instruction,which means we could tell you what caused to your machine's unsatisfied performance when you show us how your machines runs through online video, and our engineers will figure it out together with you.
Q:How many people in your QC department?
A:There are 5 general QC staff who are in charge of Ex-work inspection, they will according to the steps to ensure thestable operation of the machine and the quality of each parts.
A:We offer ONE year guarantee time free of charge, and all life after sales service.Constant back-up support is our best service tool.
Q:How can I install my machine when it arrives?
A:we could send our engineers to your country, they are all experienced in machine and working abroad,for testing and teaching your technicians how to run the machines.
Q:Do you offer after sales service?
A:yes ,we do offer.we could offer online instruction,which means we could tell you what caused to your machine's unsatisfied performance when you show us how your machines runs through online video, and our engineers will figure it out together with you.
Q:How many people in your QC department?
A:There are 5 general QC staff who are in charge of Ex-work inspection, they will according to the steps to ensure thestable operation of the machine and the quality of each parts.
