Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
HUACAI
-
Model Number:
-
YY-D-300-5
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
60A
-
Product Name:
-

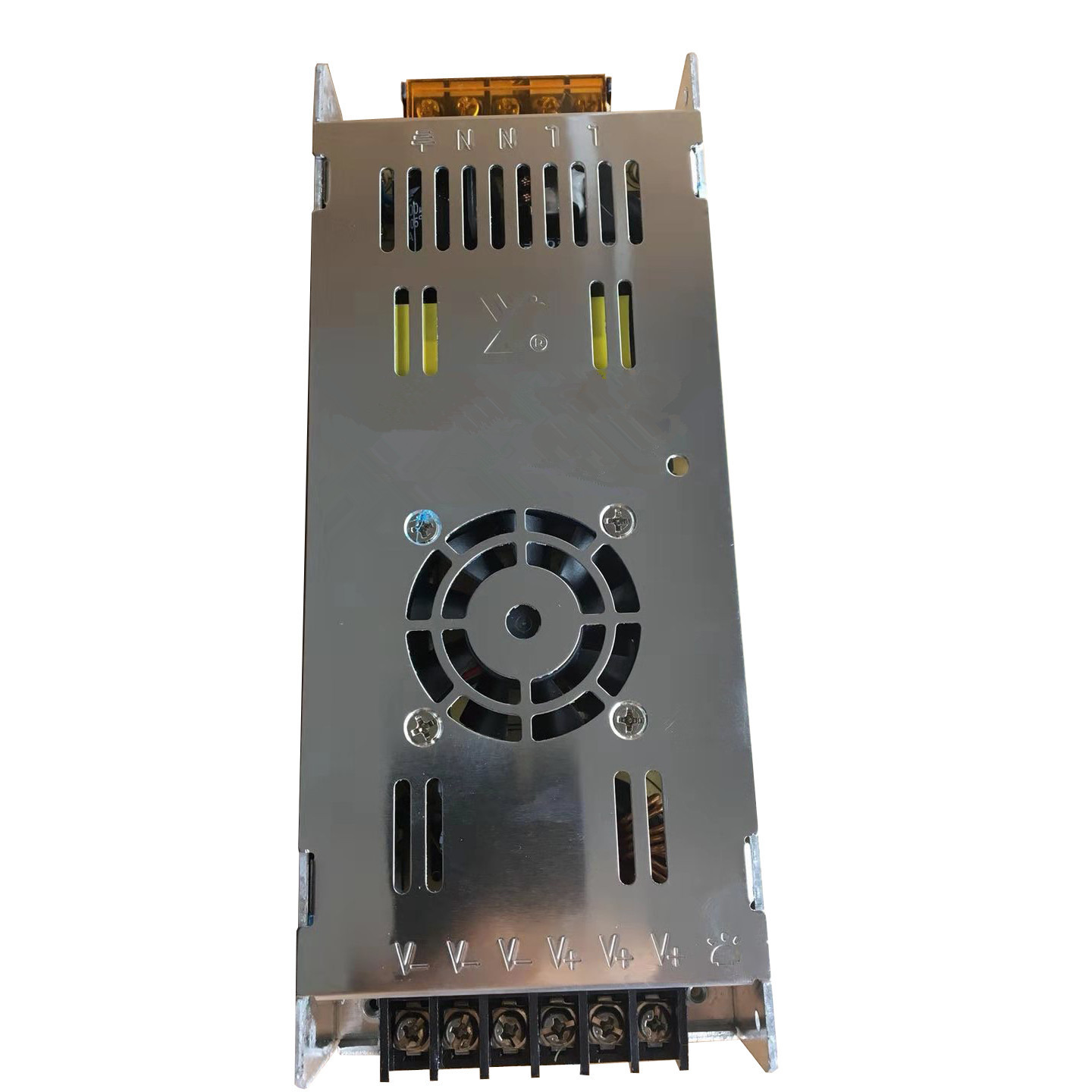

5V60A power supply
-
Usage:
-
Led screen
-
Material:
-
Aluminum
-
Weight:
-
0.5kg
-
Test:
-
100% full load burn-in test
-
Truth Power:
-
Over Real Power 300W
-
Warranty:
-
2 Years
-
Certification:
-
CE, FCC, RoHS
Quick Details
-
Output Power:
-
300W 200W
-
Input Voltage:
-
100-240V
-
Output Voltage:
-
5V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
HUACAI
-
Model Number:
-
YY-D-300-5
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
60A
-
Product Name:
-
5V60A power supply
-
Usage:
-
Led screen
-
Material:
-
Aluminum
-
Weight:
-
0.5kg
-
Test:
-
100% full load burn-in test
-
Truth Power:
-
Over Real Power 300W
-
Warranty:
-
2 Years
-
Certification:
-
CE, FCC, RoHS
| Model | D-300-5 |
| DC Output Voltage | 5V |
| Input Voltage Error | ± 2% |
| Rated Output Current | 60A |
| Output Current Range | 0-60A |
| Tripple and Noise | 180 mVp-p |
| Iniet Stability | ± 0.5% |
| Tolerance Voltage | ± 1% |
| DC Output Power | 300W |
| Efficiency | 75% |
| Adjustable Range for DC Voltage | 4.5-5.6V |
| AC Input Voltage Range | 90~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC |
| Input Current | 4.5A/115V 2.5A/230V |
| AC Inrush Current | Cold-Start Current: 25A/115V, 50A/230V |
| Leakage Current | <3.5mA/240VAC |
| Overload Protection | 105%~150% Type: Cut Output, Reset: Auto Recovery |
| Over Voltage Protection | 5.75~ 6.75V |
| Protection type : Shut down o/p voltage, re-power on to recover | |
| High Temperature Protection | ≥90°c (RTH3) Detect on inside ambient temperature |
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) |
| Start, Rise, Hold time | 200ms, 100ms, 20ms |
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes |
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC |
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms |
| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH |
| Storage Temperature and Humidity | -20°C~+85°C,10%~95%RH |
| Overall Dimension | 215*115*50 mm |
| Weight | 0.9Kgs |
| Safety Standards | CE |
| EMC Standards | Meet FCC Part 15J Conduction class B |
| Note: |
1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity.
2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. 6. C3.4 must be knocked down |
