Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Application:
-
Motor
-
Brand:
-
Motor Thermal Protection Switch
-
Size / Dimension:
-
can be customized
-
Color:
-
black and red, RAL9010 or as per customer requirement
-
Product Name:
-

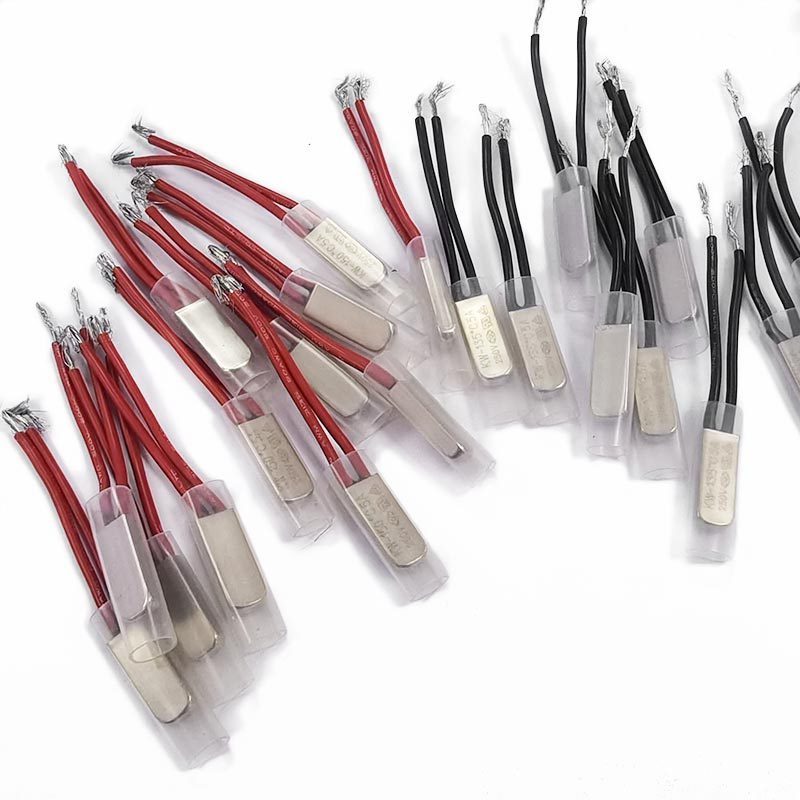

Motor Thermal Protector
-
Certification:
-
Main electric components are CE certificated.
-
Used for:
-
Window-lifts, sunroof motor, aerial tuning motor Wipers, door locks
-
MOQ:
-
5000
Quick Details
-
Brand Name:
-
NIDE
-
Model Number:
-
NDPJ-RBHQ-65
-
Type:
-
Switch Accessories
-
Place of Origin:
-
Zhejiang, China
-
Application:
-
Motor
-
Brand:
-
Motor Thermal Protection Switch
-
Size / Dimension:
-
can be customized
-
Color:
-
black and red, RAL9010 or as per customer requirement
-
Product Name:
-
Motor Thermal Protector
-
Certification:
-
Main electric components are CE certificated.
-
Used for:
-
Window-lifts, sunroof motor, aerial tuning motor Wipers, door locks
-
MOQ:
-
5000
Product Description
| Rated current: | |
| Operating temperature: | 60°C-160°C, tolerance ±5°C. |
| Lead wire tensile test: | The lead wire of the thermal protector should be able to withstand a tensile force greater than or equal to 50N for 1min without breakage or loosening. |
| Insulation voltage: | |
| Insulation resistance: | |
| Contact resistance: | The contact resistance of the thermal protector should not be greater than 50mQ when the contacts are closed. |
| Heat resistance test: | The product is placed in an environment of 150"C for 96 hours. |
| Humidity resistance test: | The product is placed in an environment of 40C and a relative humidity of 95% for 48 hours. |
| Thermal shock test: | The product is placed alternately at 150°C and - 20°C for 30min each, for a total of 5 cycles. |
| Anti-vibration test: | The product can withstand an amplitude of 1.5mm, a frequency change of 10-55HZ, a scanning change period of 3-5min, and vibration directions X, Y, Z, and continuous vibration for 2 hours in each direction. |
| Drop test: | The product is free to fall once from a height of 200mm. |
| Compression resistance: | Immerse the product in a sealed oil tank, apply a pressure of 2Mpa and keep it for 24h. |
