Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Talos Plus
-
Dimension(L*W*H):
-
485 x 455 x 525mm
-
Weight:
-
36
-
Rated power/speed:
-
8.2kW/1800RPM
-
Marketing Type:
-
Hot Product
-
Model:
-
T390R
-
Bore x Stroke:
-
88 x 64mm
-
Rated Output:
-
8.2kW@1800RPM
-
Max. Output:
-
9.5kW@1800RPM
-
Max. Torque:
-
46N.m@1250RPM
-
Starting System:
-
Recoil Start
-
Fuel Tank Capacity:
-
6.5L
-
Certificate:
-
CE/EPA
Quick Details
-
Displacement:
-
389cc, 389cc
-
Emission Standard:
-
EURO 5
-
Power:
-
8.2kW
-
Place of Origin:
-
China
-
Brand Name:
-
Talos Plus
-
Dimension(L*W*H):
-
485 x 455 x 525mm
-
Weight:
-
36
-
Rated power/speed:
-
8.2kW/1800RPM
-
Marketing Type:
-
Hot Product
-
Model:
-
T390R
-
Bore x Stroke:
-
88 x 64mm
-
Rated Output:
-
8.2kW@1800RPM
-
Max. Output:
-
9.5kW@1800RPM
-
Max. Torque:
-
46N.m@1250RPM
-
Starting System:
-
Recoil Start
-
Fuel Tank Capacity:
-
6.5L
-
Certificate:
-
CE/EPA
Product Description

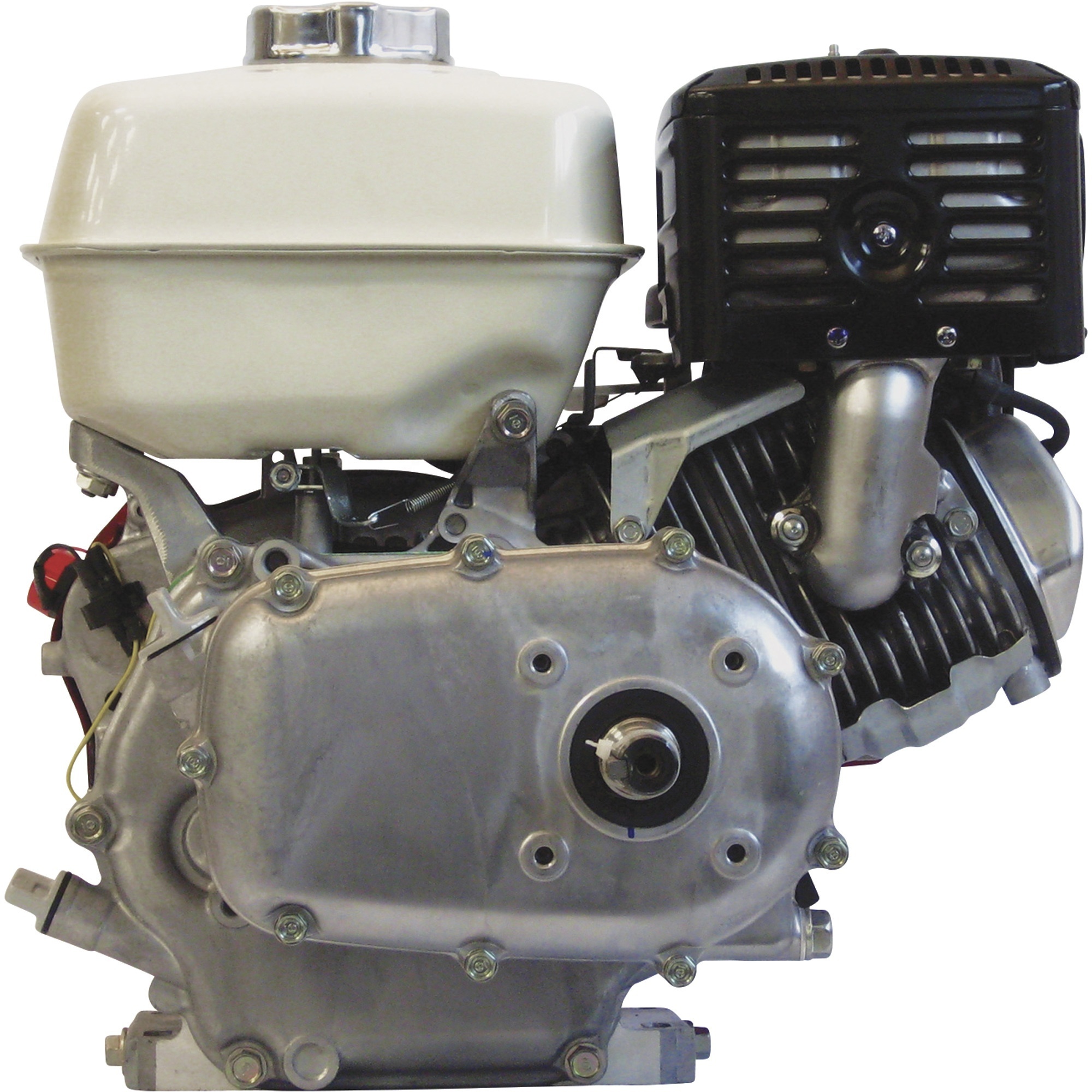

13HP Horizontal OHV 2 : 1 Gear Reduction Gasoline Engine For Go Kart
|
Model
|
T390R
|
Engine Type
|
OHV, Single cylinder
|
||
|
Bore x Stroke
|
88 x 64mm
|
Displacement
|
389cc
|
||
|
Compression Ratio
|
8 : 1
|
Start Type
|
Recoil Start
|
||
|
Speed
|
1800RPM
|
Rated Output
|
8.2
kW@180
0RPM
|
||
|
Maximum Output
|
9.5kW@1800RPM
|
Torque
|
46N.m@1250RPM
|
||
|
Fuel Consumption
|
374g/kW.h
|
Shaft Output
|
Horizontal
|
||
|
Crankshaft
|
R-type
|
Cooling System
|
Air cooled
|
||
|
Fuel Type
|
Gasoline
|
Fuel Tank Capacity
|
6.5L
|
||
|
Oil capacity
|
1.1L
|
Lubrication System
|
Forced splash
|
||
|
Low Oil Alert
|
Yes
|
Low Oil Shutdown
|
Yes
|
||
|
Governor System
|
Centrifugal mechanical
|
Throttle Control
|
Remote (cable)
|
||
|
Carburetor
|
Float
|
Choke Control
|
Manual
|
||
|
Net Weight
|
33kg
|
Gross Weight
|
36kg
|
||
|
Dimension(L x W x H)
|
485 x 455 x 525mm
|
EPA Approval
|
Yes
|
||
|
Available Option
|
Electric start, CARB
|
Warranty
|
1 Year
|
||
|
Shaft Rotation
|
(From PTO Shaft Side) Counterclockwise
|
|
|
||
|
Application
|
Go kart, agricultural equipment and small construction equipment.
|
|
|
||
Features + Benefits
EPA certificate engine with 2:1 reduction
OHV design for increased efficiency and optimal power transfer
High compression ratio for better fuel efficiency
High compression ratio for better fuel efficiency
Low vibration from precision-engineered components
Cast iron cylinder sleeve
Recoil start with compression release helps you start on the first pull
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure
Cast iron cylinder sleeve
Recoil start with compression release helps you start on the first pull
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure
