Quick Details
-
Place of Origin:
-
Guangdong, China
-
Screw Diameter:
-
32 - 46mm
-
Color:
-
green
-
Injection pressure:
-
2180 - 1591cm2
-
Injection Rate:
-
60 94 cc/s
-
Injection Weight:
-
32 45 gr
-
Power(W):
-
11.1 Kw
Quick Details
-
Injection Weight (g):
-
158 g
-
Screw Speed (rpm):
-
0 - 180 rpm
-
Screw diameter (mm):
-
40 mm
-
Place of Origin:
-
Guangdong, China
-
Screw Diameter:
-
32 - 46mm
-
Color:
-
green
-
Injection pressure:
-
2180 - 1591cm2
-
Injection Rate:
-
60 94 cc/s
-
Injection Weight:
-
32 45 gr
-
Power(W):
-
11.1 Kw
Application Field
Product Description

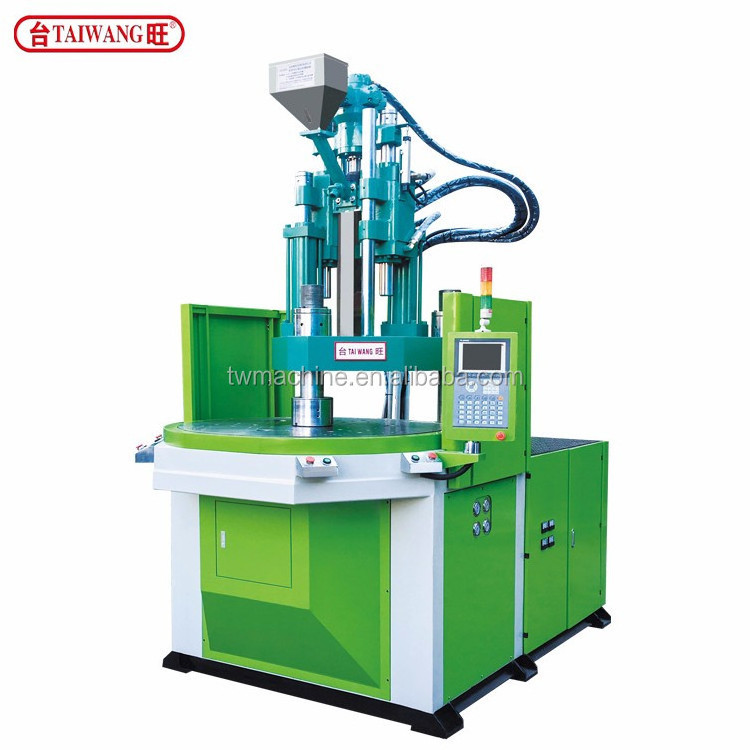

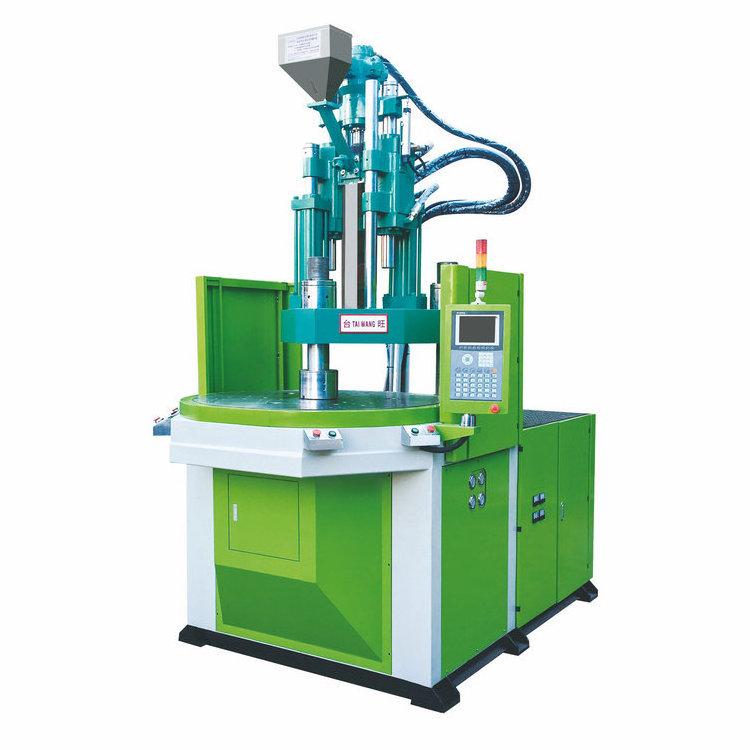

Rotary table machine series
TW-70T
Feature:
|
TW-70VR-2C
|
|
|
|
|||
|
E-mail:jerry@twmachines.com Whatsapp/Phone:86-13829235050
|
|
|
|
|||
|
INJECTION UNIT
|
Item
|
Unit
|
TW-70VR-2C
|
|||
|
|
Screw Diameter
|
mm
|
32 40
|
|||
|
|
Injection Pressure
|
kgf/c㎡
|
2180 1395
|
|||
|
|
Injection Capacity
|
cm³
|
113 176
|
|||
|
|
Injection Weight(P.S)
|
gr
|
101 158
|
|||
|
|
|
oz
|
3.5 5.5
|
|||
|
|
Injection Rate
|
cc/s
|
60 94
|
|||
|
|
Screw Speed
|
r.p.m
|
0~180
|
|||
|
|
Screw Stroke
|
mm
|
140
|
|||
|
|
Nozzle Stroke
|
mm
|
200
|
|||
|
|
Nozzle Contact Force
|
tf
|
3.5
|
|||
|
CLAMPING UNIT
|
Clamping System
|
......
|
Hydraulic
|
|||
|
|
Clamping Force
|
tf
|
70
|
|||
|
|
Clamping Stroke
|
mm
|
200
|
|||
|
|
Max.Mould Space
|
mm
|
380
|
|||
|
|
Min.Mould Height
|
mm
|
180
|
|||
|
|
Hydraulic Ejector Force
|
tf
|
1.7
|
|||
|
|
Ejector Stroke
|
mm
|
35
|
|||
|
TABLE PARAMETRES
|
Table Diameter
|
mm
|
1240
|
|||
|
|
Table Rotation Angle
|
.
|
180°
|
|||
|
|
Max.Mould Dimensions
|
mm
|
380*380
|
|||
|
|
Number of Molds
|
Sets
|
2
|
|||
|
OTHERS
|
Drive Motor
|
KW
|
11.1(15HP)
|
|||
|
|
Heater
|
KW
|
5.6
|
|||
|
|
Dimension of Machine(L×W×H)
|
m
|
2.6*1.9*3.5
|
|||
|
|
Weight Of Machine
|
t
|
5
|
|||
|
|
Shipping Size(L×W×H)
|
m
|
2.8*2.1*3.0
|
|||
|
|
Shipping Weight
|
t
|
6
|
|||
|
|
Oil Tank Capacity
|
l
|
260
|
|||
|
|
Cooling Water
|
l/hr
|
700~900
|
|||

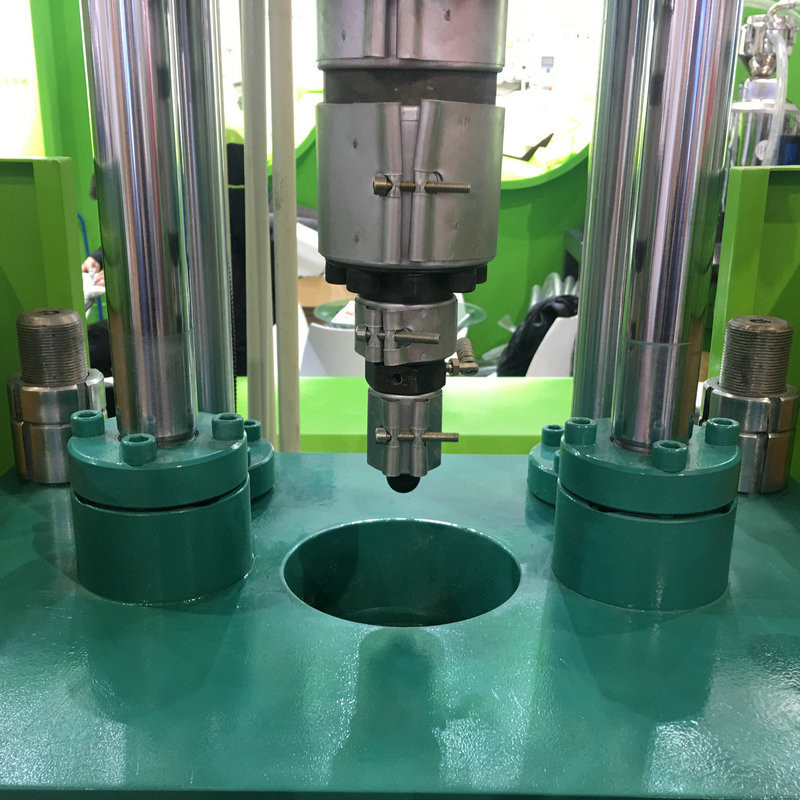

Detailed Images
Intelligence control system
Large injection capacity
Humanized design
Packing & Delivery
1st step.
2nd step.
3rd Step.
Packaging Details:
♦. Standard Packing: Plastic film is wrapped on the machine;
♦. Outside wooden Package
Delivery Time:
15 days only
Company introduction
Company introduction:
Our company where locate in DongGuang city of GuangDong province has specialized in manufacturing injection machine for around 10 yeras and attain great reputation for high quality and considerate service also our machine is widely used among domestic and foreign customers. In terms of technical aspect, not only in order to cater with various clients who is from diverse industrial field such as medical,toy manufacturer, car accessories,aviation , stationery,sport even living goods and etc but also We provide customized service to special manufacturer.
