Quartz glass sheets are usually cut and ground from quartz glass, with a silicon dioxide content of over 99.99%. The hardness is Mohs level seven, with characteristics such as high temperature resistance, low coefficient of thermal expansion, heat shock resistance, and good electrical insulation performance.
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JINGRUN
-
Model Number:
-
JRQ-0051
-
Product Name:
-
Quartz Plate
-
Material:
-
99.99% Pure Quartz
-
Size:
-
Customer's Requirement
-
Soften Temperature:
-
1780°
-
Color:
-
Clear Quartz Pipe
-
Edges Treatment:
-
Fine Polished Edge,Rough Edges and customized
-
Package:
-
Wooden Box
-
Packing:
-
Safe Exported Cartons
Quick Details
-
Type:
-
Translucent Quartz Plate
-
Application:
-
Optical instrument & Inbdustry
-
Thickness:
-
0.55mm-50mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JINGRUN
-
Model Number:
-
JRQ-0051
-
Product Name:
-
Quartz Plate
-
Material:
-
99.99% Pure Quartz
-
Size:
-
Customer's Requirement
-
Soften Temperature:
-
1780°
-
Color:
-
Clear Quartz Pipe
-
Edges Treatment:
-
Fine Polished Edge,Rough Edges and customized
-
Package:
-
Wooden Box
-
Packing:
-
Safe Exported Cartons
Product Description
|
Round Tpye
|
Diameter: 1mm-500mm; Thickness: 0.5mm-500mm.
|
|
Rectangle Tpye
|
Length: 5mm-2000mm; Thickes: 0-500m-100mm
|
|
Density
|
2.2g/cm3
|
|
Compressive strength
|
1100Mpa
|
|
Young's modulus
|
72000Mpa
|
|
Modulus of rigidity
|
31000Mpa
|
|
Mohs hardness
|
5.5~6.5
|
|
Transformation point
|
1280°C
|
|
Softening Point
|
1780°C
|
|
Annealing point
|
1250°C
|
|
Specific heat (20 ~ 350 °C)
|
670J/kg.°C
|
|
Thermal conductivity (20 °C)
|
1.4W/m.°C
|
|
Index of refraction
|
1.4585
|
|
Thermal processing temperature
|
1750~2050°C
|
|
Short-term working temperature
|
1300°C
|
|
Long-term working temperature
|
1100°C
|
|
Strain
|
1270 C Fused The Quartz Glass Brick
|
|
PPM grade
|
Controlled 10/20/100 PPM
|
|
Electrical Resistivity: 1000°C
|
1x106 Q. cm
|

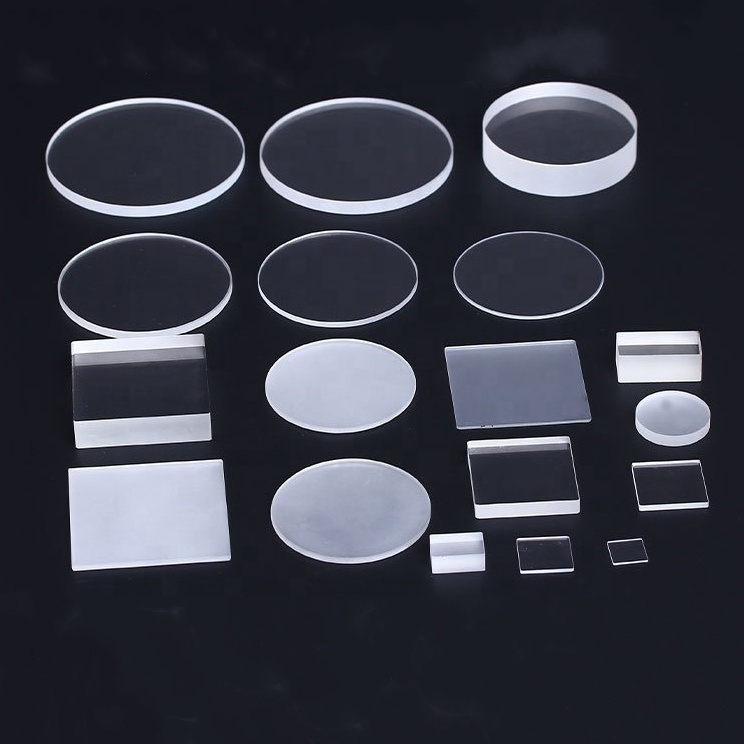

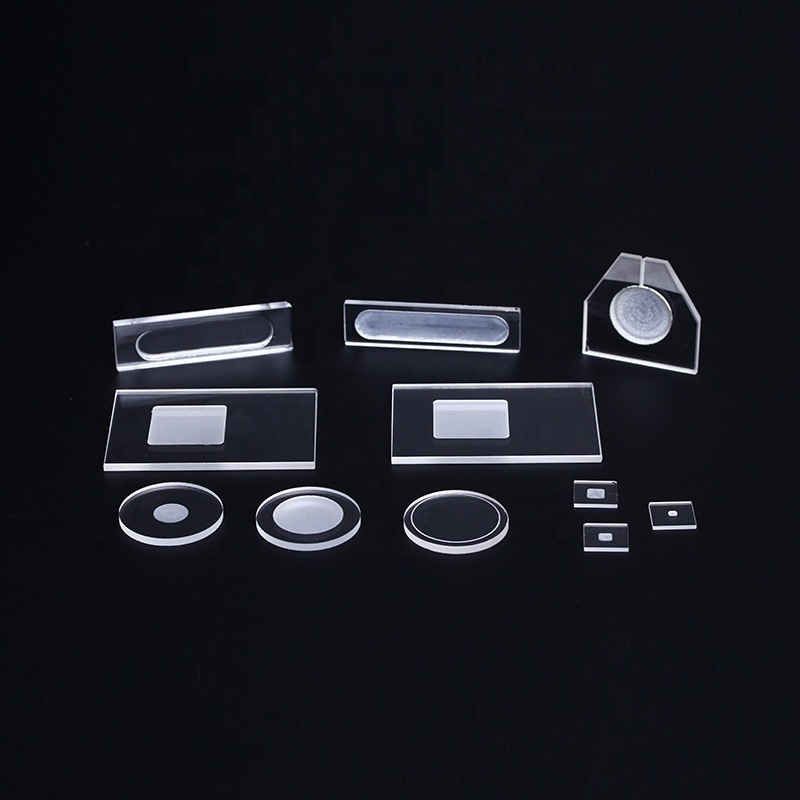

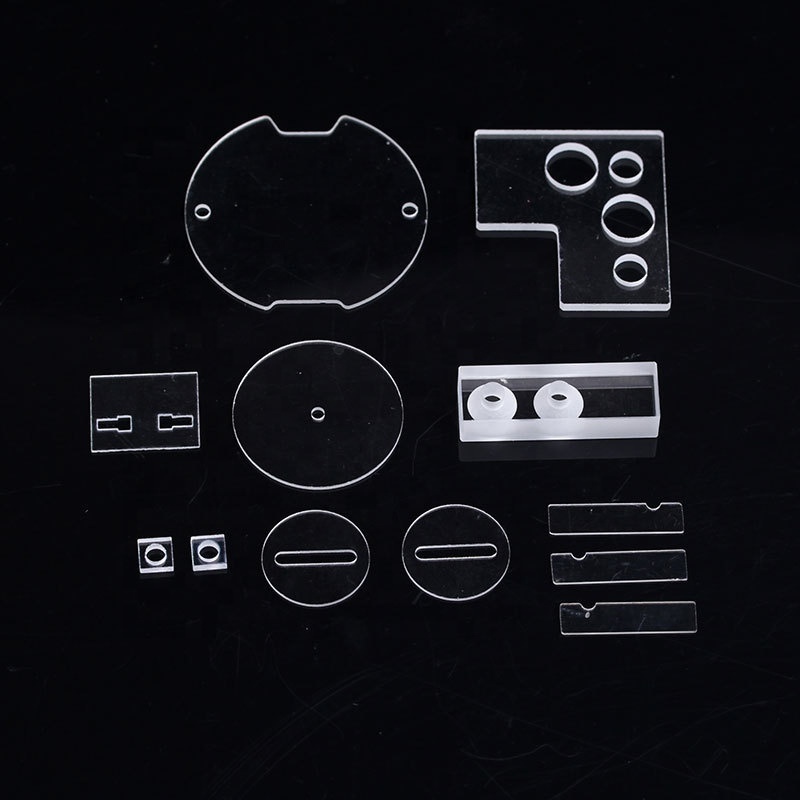

Details Images
Product show
