Quick Details
-
Graphic Format Supported:
-
BMP, Dst, Dwg, DXF, DXP, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Dimension(L*W*H):
-
0.98*0.42*0.82m, 0.98*0.42*0.82m
-
Weight (KG):
-
60 KG
-
Machinery Test Report:
-
CE
-
Product Name:
-
30W Fiber Laser Marking Machine JPT Frequency 1-4000KHZ
-
Power of fiber laser marking machine:
-
30W
-
Lifespan of laser device:
-
100,000 hours
-
Standard Working Area:
-
110*110mm
-
laser Marking Depth:
-
0.01-4mm
-
laserr Marking machine Speed:
-
8000mm/s
-
Lead Time:
-
3~5 days
-
laser device:
-
IPG,Raycus,MAX,JPT
-
Gross Weight:
-
60Kg
Quick Details
-
Engraving Area:
-
110*110mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
7000mm/s
-
Graphic Format Supported:
-
BMP, Dst, Dwg, DXF, DXP, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Dimension(L*W*H):
-
0.98*0.42*0.82m, 0.98*0.42*0.82m
-
Weight (KG):
-
60 KG
-
Machinery Test Report:
-
CE
-
Product Name:
-
30W Fiber Laser Marking Machine JPT Frequency 1-4000KHZ
-
Power of fiber laser marking machine:
-
30W
-
Lifespan of laser device:
-
100,000 hours
-
Standard Working Area:
-
110*110mm
-
laser Marking Depth:
-
0.01-4mm
-
laserr Marking machine Speed:
-
8000mm/s
-
Lead Time:
-
3~5 days
-
laser device:
-
IPG,Raycus,MAX,JPT
-
Gross Weight:
-
60Kg

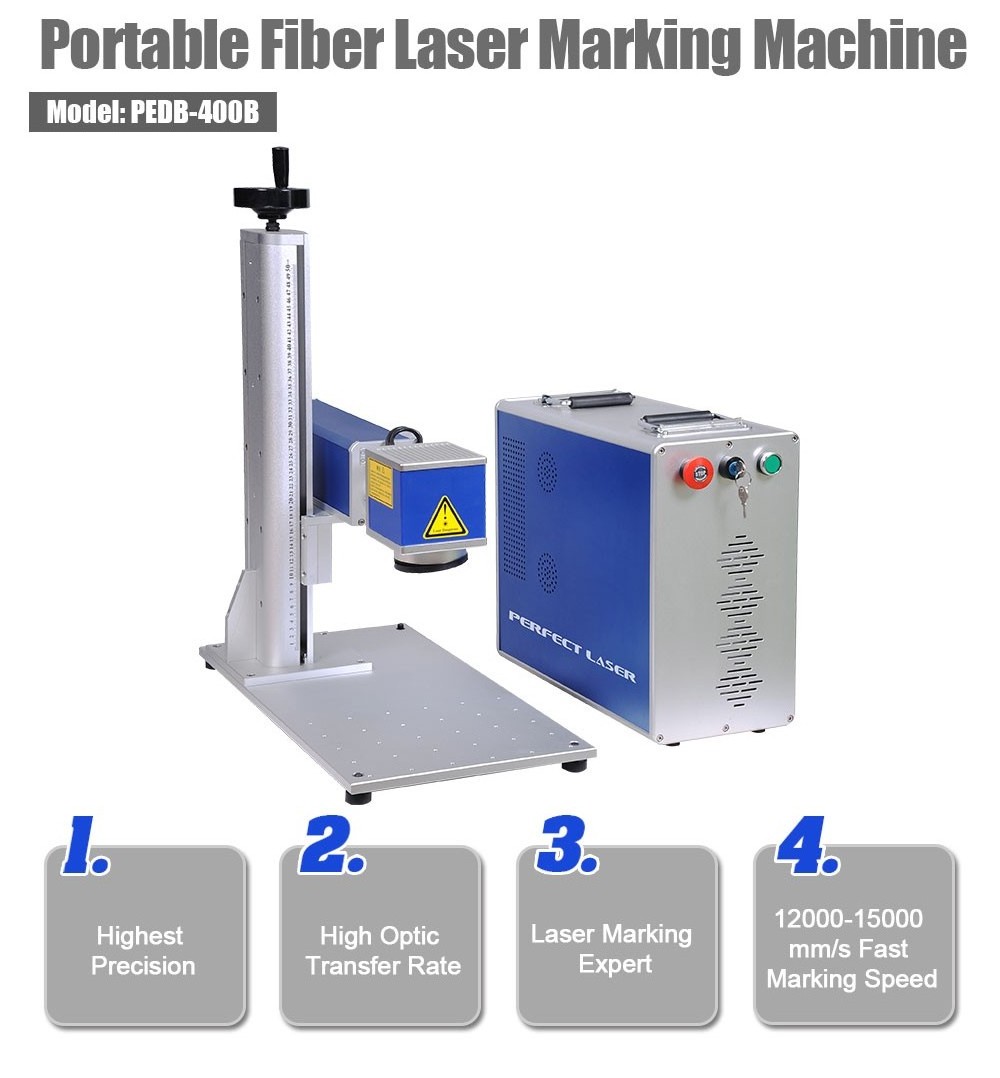

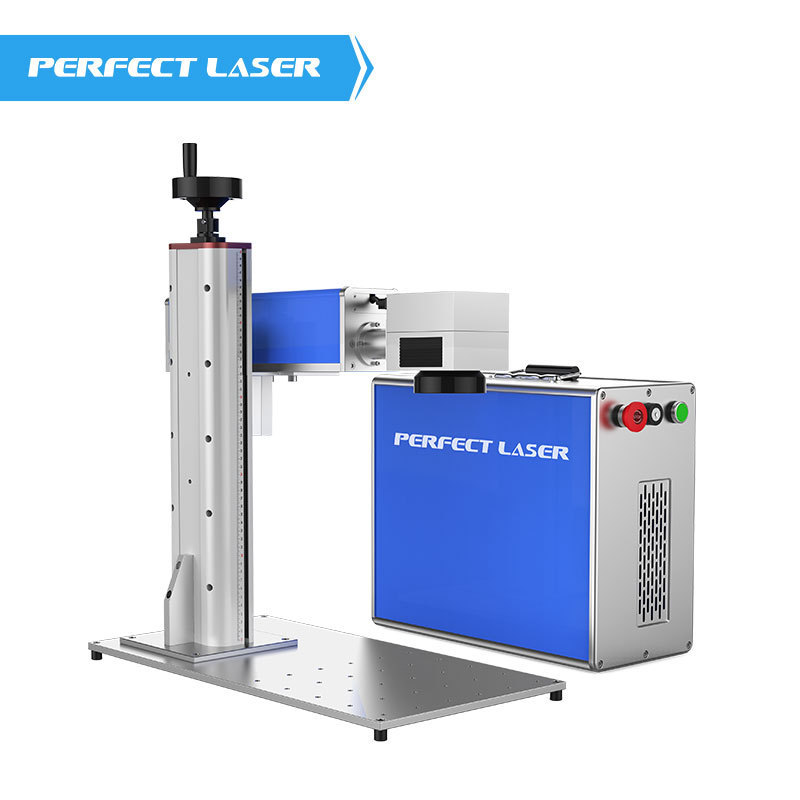

30W Desktop Metal SS Non-metal Plastic PVC Logo Fiber Laser Marking Marker Engraving Printing Machines For Sale
(Model: PEDB-400B 30W )
Contact: Maggie Wechat/Whatsapp:+8613659885038 Email:sales08(@)perfectlaser.net
Product Description
30W Desktop Metal SS Non-metal Plastic PVC Logo Fiber Laser Marking Marker Engraving Printing Machines For Sale
with adjustable pulse width, can
allow manufacturers to mark serial numbers, bar codes, 2D Data Matrix and graphics on the widest variety of materials, including metals, plastics and ceramics.
Providing an industrial solution for product identification and traceability,Our
Perfect Laser 30W Fiber Laser Marking Machine JPT Frequency 1-4000KHZ
delivers superior performance and reliability.
Specification
|
Model No
|
PEDB-400B 30W Fiber Laser Marking Machine For Logo Laser Printing PEDB-400B Wuhan Perfect Laser
|
|
Type
|
Desktop
|
|
Computer
|
Not includes PC
|
|
Laser Source
|
JPT Fiber Laser
|
|
Laser Power
|
30W
|
|
Central emission wavelength
|
1064 nm
|
|
Pulse width, (FWHM)
|
2-250 ns
|
|
Pulse Repetition Rate* kHz
|
1-4000 kHz
|
|
Energy per pulse (PRR = 20 kHz)
|
0.8 mJ
|
|
Typical beam quality, M2
|
<1.3
|
|
Output fiber delivery length
|
2m
|
|
Laser system
|
|
|
Scanning Speed
|
0-7000mm/s
|
|
Marking Speed
|
0-5000mm/s
|
|
Marking size
|
110mm×110mm (F-theta 160)
|
|
Spot size
|
≤ 40 micron (F-theta 160)
|
|
Cooling unit
|
Air cooled
|
|
Pilot laser
|
650nm diode laser, visible red light for marking guide
|
|
Continuous working time
|
≥16h
|
|
Humidity
|
45～85% (no condensation)
|
|
Operating temperature
|
0~40℃
|
|
Control units
|
Laser Mark (English Version)
|

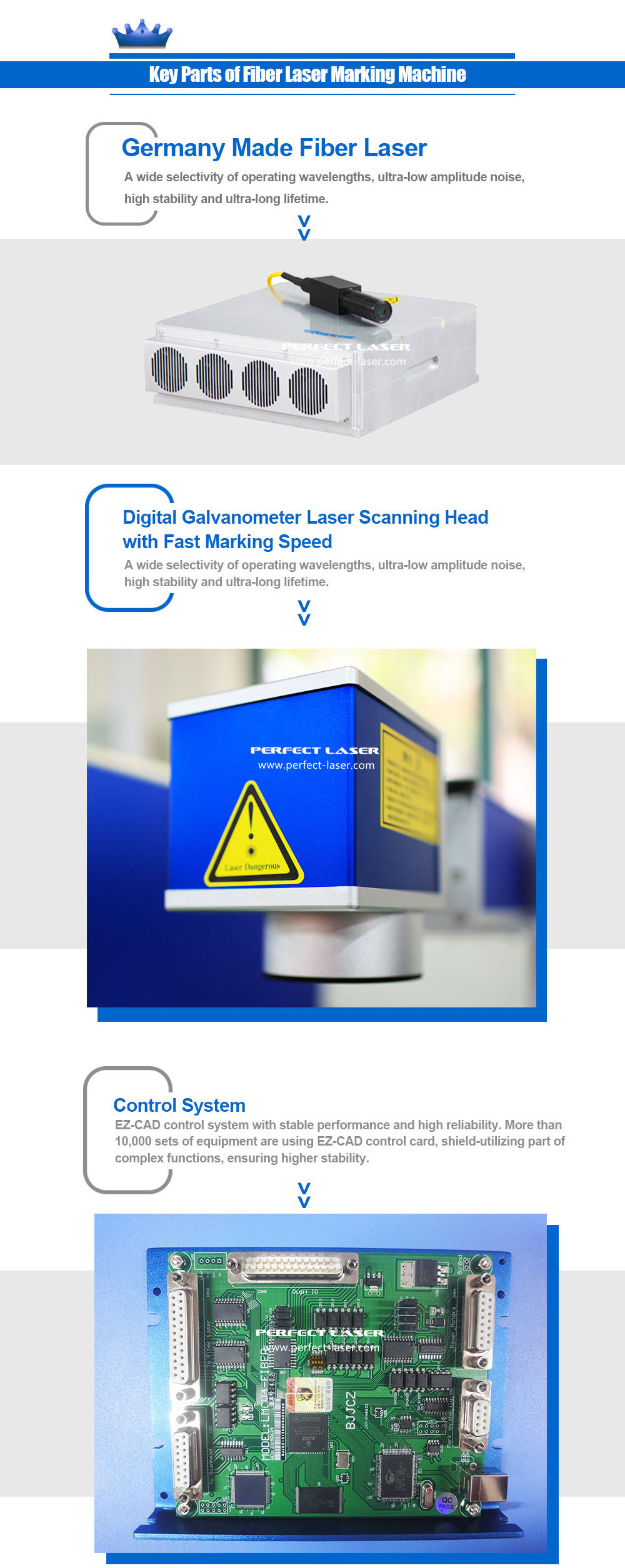

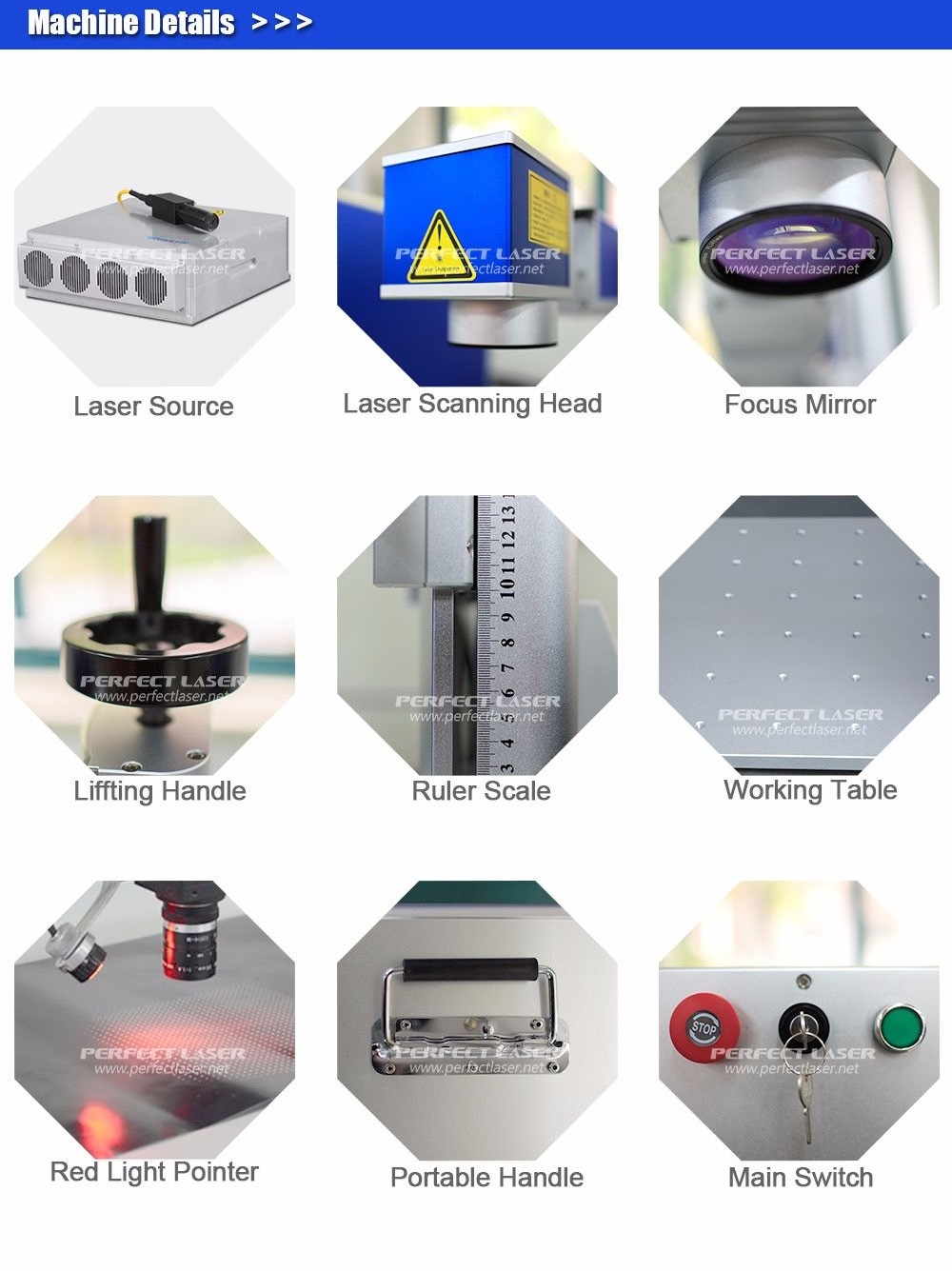

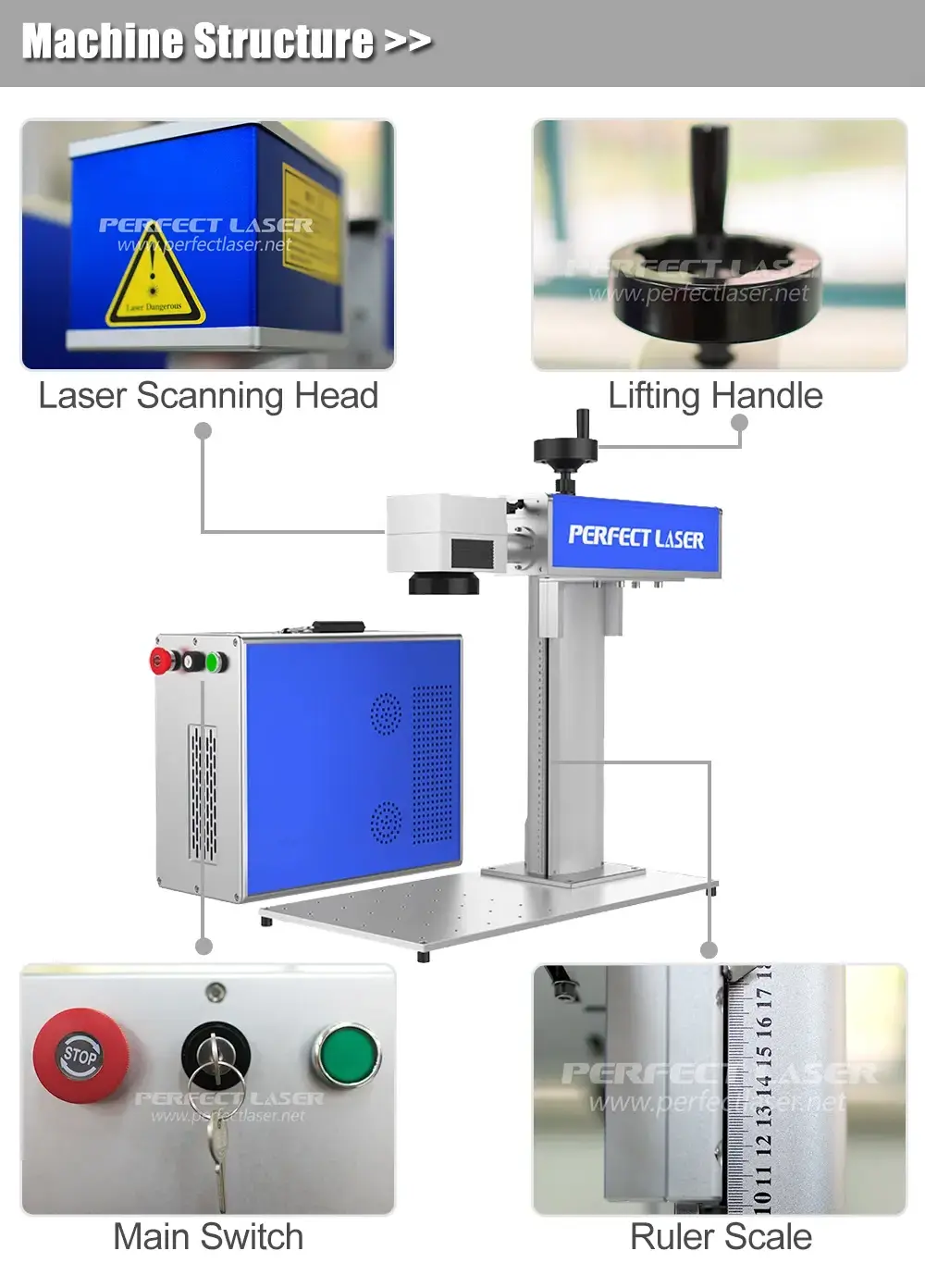

Deatiled Images
Features of
30W Desktop Metal SS Non-metal Plastic PVC Logo Fiber Laser Marking Marker Engraving Printing Machines For Sale
1. High-quality imported fiber lasers: The metal laser marking machine has exquisite marking effects, and all kinds of fine and complex patterns can be marked on the surface of the product with fiber laser marking system, which is suitable for all types of super-fine marking.
2. Optional multi-power laser light source: No matter what industry you belong to, no matter what material you use, this fiber laser engraving machine can customize the most suitable marking machine for your personality.
3. Fast marking and high efficiency: In the same time, the output of workpieces processed by the metal laser marking machine is obviously improved, and the return on investment of users is accelerated.
4. Long life: The metal laser marking machine can work continuously in harsh working environments, and the laser is free of maintenance for 100,000 hours.
5. High-efficiency photoelectric conversion rate: no loss of power coupling, no consumables, obviously reducing operating costs for customers.
6. Compact and compact: easy to handle and save production space.
2. Optional multi-power laser light source: No matter what industry you belong to, no matter what material you use, this fiber laser engraving machine can customize the most suitable marking machine for your personality.
3. Fast marking and high efficiency: In the same time, the output of workpieces processed by the metal laser marking machine is obviously improved, and the return on investment of users is accelerated.
4. Long life: The metal laser marking machine can work continuously in harsh working environments, and the laser is free of maintenance for 100,000 hours.
5. High-efficiency photoelectric conversion rate: no loss of power coupling, no consumables, obviously reducing operating costs for customers.
6. Compact and compact: easy to handle and save production space.
Sample & Application
Applications of
20w 30W 50w 100w Desktop Metal SS Non-metal Plastic PVC Logo Fiber Laser Marking Marker Engraving Printing Machines For Sale
for higher marking precision
such as mobile phones buttons, plastic translucent keys,
e
lectronic components,integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives,
eyeglasses andclocks, jewelry,
auto parts, luggage buckle,
cooking utensils, stainless steel products and other industries.
Packing & Delivery
Related Product
FAQ
Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
