Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
HV HIPOT
-
Model Number:
-
GDPQ-5000
-
Operating Temperature:
-
-10℃~40℃
-
Dimensions:
-
240mm*170mm*68 mm
-
Phase-to-neutral voltage:
-
1.0V~ 1000V
-
Phase-to-phase voltage(True RMS):
-
1.0V~ 2000V
-
Current(True RMS):
-
5A, 10A,100A,1000A,3000A
-
Network frequency:
-
40Hz~ 70Hz
-
Working voltage of device:
-
DC9.5V~ 10.5V
-
Weight:
-
9.2KG
-
Current clamp:
-
10A,100A,1000A,3000A(optional)
-
Display Type:
-
5.6 inch LCD color screen
-
Warranty:
-
12 Months
-
Name:
-

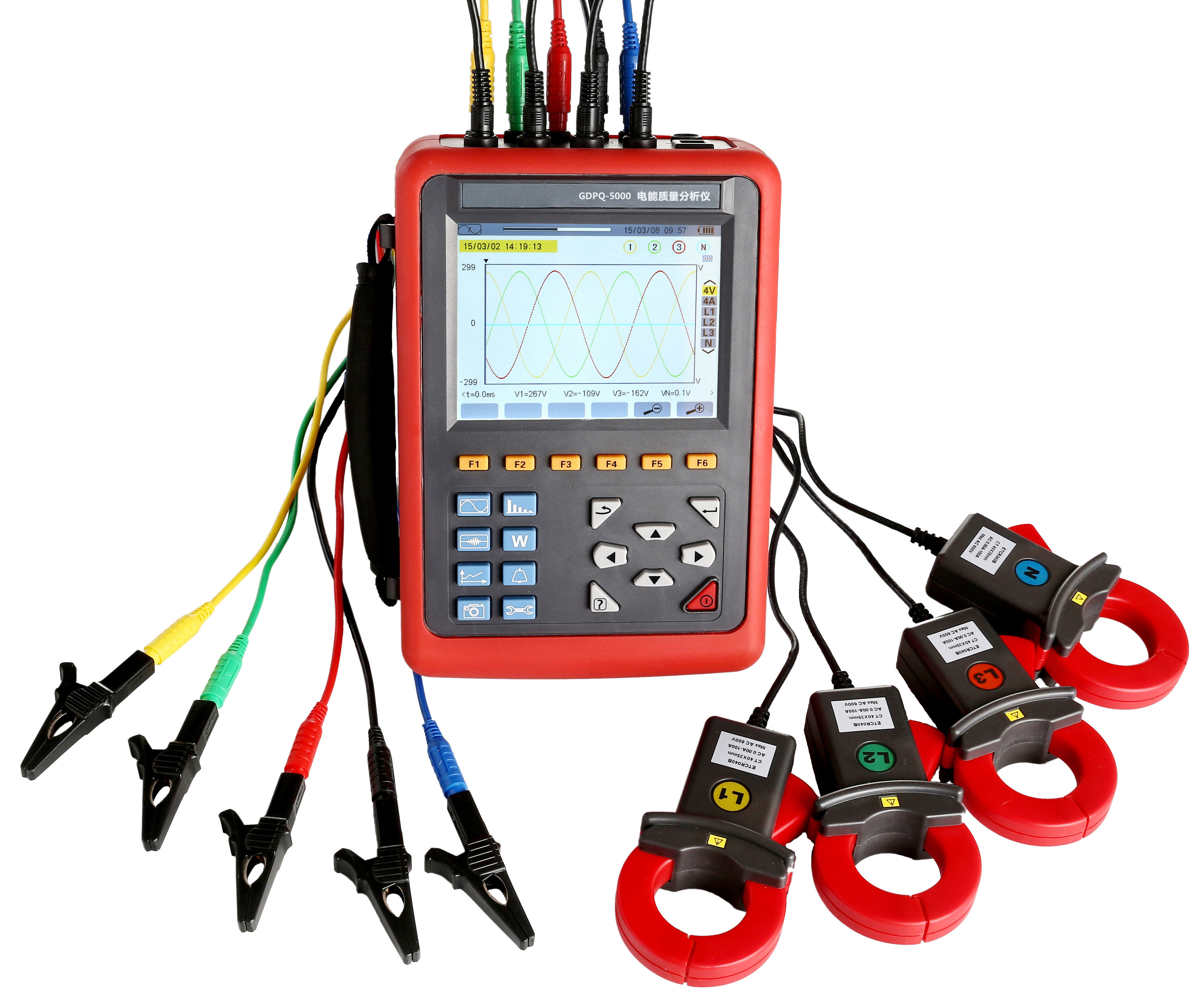

Digital Phase Power Quality Analyzer
Quick Details
-
Measuring Current Range:
-
0-3000A
-
Measuring Voltage Range:
-
0-2000V
-
Accuracy Class:
-
±(0.5%+5dgt)
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
HV HIPOT
-
Model Number:
-
GDPQ-5000
-
Operating Temperature:
-
-10℃~40℃
-
Dimensions:
-
240mm*170mm*68 mm
-
Phase-to-neutral voltage:
-
1.0V~ 1000V
-
Phase-to-phase voltage(True RMS):
-
1.0V~ 2000V
-
Current(True RMS):
-
5A, 10A,100A,1000A,3000A
-
Network frequency:
-
40Hz~ 70Hz
-
Working voltage of device:
-
DC9.5V~ 10.5V
-
Weight:
-
9.2KG
-
Current clamp:
-
10A,100A,1000A,3000A(optional)
-
Display Type:
-
5.6 inch LCD color screen
-
Warranty:
-
12 Months
-
Name:
-
Digital Phase Power Quality Analyzer
Product Description
Features
- Waveform real-time display (4 channels voltage/4 channels current).
- True RMS values of voltages and currents.
- The DC components of voltages.
- Peak current and voltage values.
- Minimum and maximum half-cycle RMS current and voltage values.
- Phasor diagram display.
- Measurement of each harmonic up to order 50.
- Bar charts show harmonic ratios of current and voltage of each phase.
- Total harmonic distortion (THD).
- Active, reactive, apparent power, by phase and cumulative.
- Active, reactive, apparent energy, by phase and cumulative.
- Transformer K factor.
- Power factors (PF) and displacement factors (DPF or COSΦ).
- Short-term voltage flicker (PST).
- Three phase unbalance(current and voltage).
