Quick Details
-
Flatness:
-
Lambda/10
-
Warranty:
-
1 year
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YBT
-
Model Number:
-
OP
-
Product name:
-
Retroreflector
-
Type:
-
Optical prisms
-
Diameter Tolerance:
-
+0.00/-0.10mm
-
Height Tolerance:
-
±0.25mm
-
Bevel:
-
Protective bevel as needed
-
Clear aperture:
-
>80%
-
Image Orientation:
-
Left-Handed
-
Coating:
-
Custom
-
Application:
-
Optical equipments
Quick Details
-
Material:
-
BK7/K9/UV fused silica
-
Dimension Tolerance:
-
±0.1mm
-
Angle Tolerance:
-
3 Arc Seconds
-
Flatness:
-
Lambda/10
-
Warranty:
-
1 year
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YBT
-
Model Number:
-
OP
-
Product name:
-
Retroreflector
-
Type:
-
Optical prisms
-
Diameter Tolerance:
-
+0.00/-0.10mm
-
Height Tolerance:
-
±0.25mm
-
Bevel:
-
Protective bevel as needed
-
Clear aperture:
-
>80%
-
Image Orientation:
-
Left-Handed
-
Coating:
-
Custom
-
Application:
-
Optical equipments
Product Description

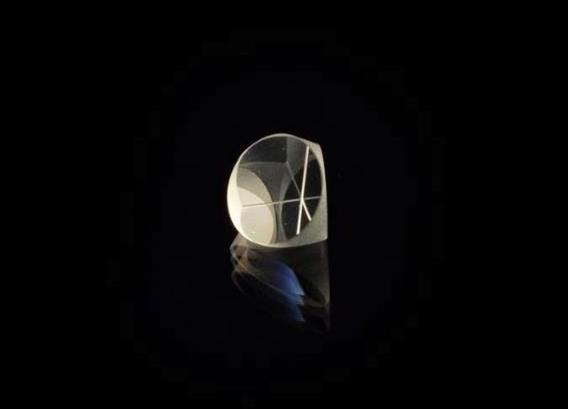

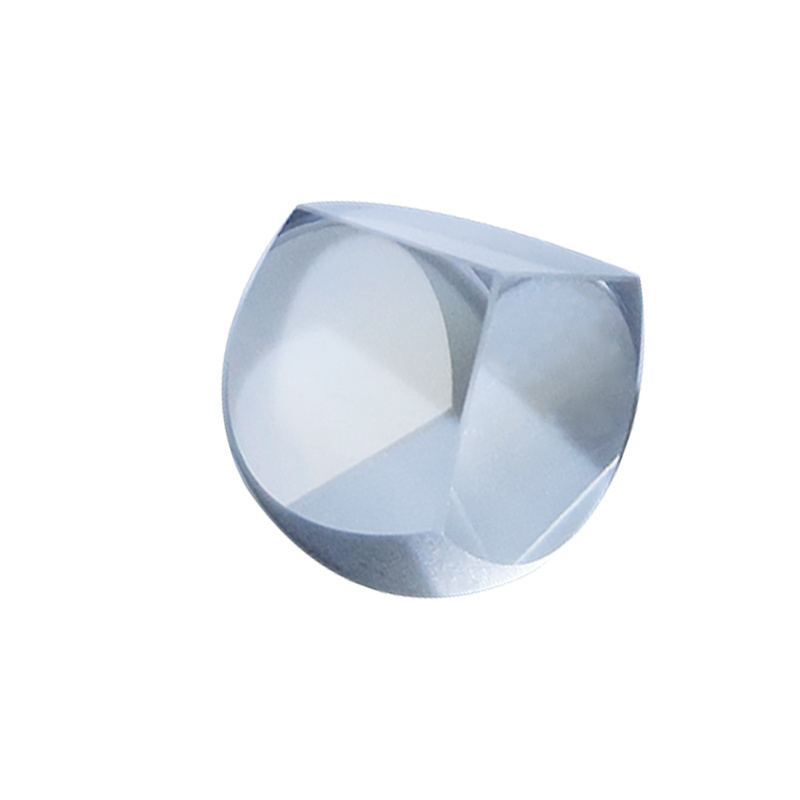

Corner prism

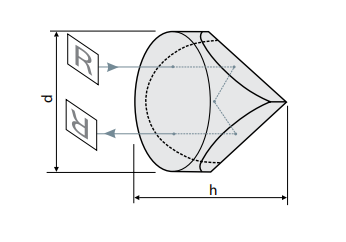

BK7 or UVFS Corner cube retroreflectors designed to deviate incident light by 180 degrees independently of an angle of incidence. These prisms have 3 mirror surfaces making angles of 90 deg to each other, juxtaposed to form the corner of a cube with the entrance face perpendicular to cube diagonal. All beams, despite of incident direction, are reflected back to the original direction. Corner cubes are used in high precision applications or with lasers over very long distances.
|
Product Name
|
Retroreflector
|
|
Diameter Tolerance
|
+0.00/-0.10mm
|
|
Angle Tolerance
|
±3Arc Seconds
|
|
Surface Flatness
|
1/10Lambda
|
|
Surface Quality
|
60/40, 40/20 or better
|
|
Material
|
BK7/K9/UV fused silica
|
|
Clear aperture
|
>90%
|
|
Bevel
|
Protective bevel as needed
|
|
Coating
|
Custom
|
AR coatings
A:350 - 700 nm B:650 - 1050 nm C:1050 - 1700 nm
Related Products
Certificate
ISO9001
CE
RoHS
Packing&Shipping
Company Introduction
Shenyang Ebetter Optics Co.,Ltd. is a professional manufacturer of precision optical components and optical lens, diffraction grating manufacture. Since the company was established, it has been committed to the research and production and sales. We can carry out the optical system design and production of related accessories,and moreover we have already got import and export rights. nowadays products have been sold to many countries and regions,and established long-term good relations of cooperation with the optical companies of United States,Canada,the European Union and other countries. We get a good reputation with quality products.
