Quick Details
-
Ejector Stroke(mm):
-
125 mm
-
Ejector Force(kN):
-
53.1 kN
-
Theoretical Shot Volume(cm³):
-
594 cm³
-
Injection Rate (g/s):
-
175 g/s
-
Injection Weight (g):
-
540 g
-
Screw Speed (rpm):
-
1 - 170 rpm
-
Screw diameter (mm):
-
55 mm
-
Screw L/D Ratio:
-
21
-
Distance between Tie Bars:
-
505x505
-
Weight (KG):
-
6800 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
500 mm
-
Model Number:
-
SZ-2000A
-
Brand Name:
-
SHENZHOU
-
Power (kW):
-
30 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
After-sales Service Provided:
-
Online support
-
Name:
-

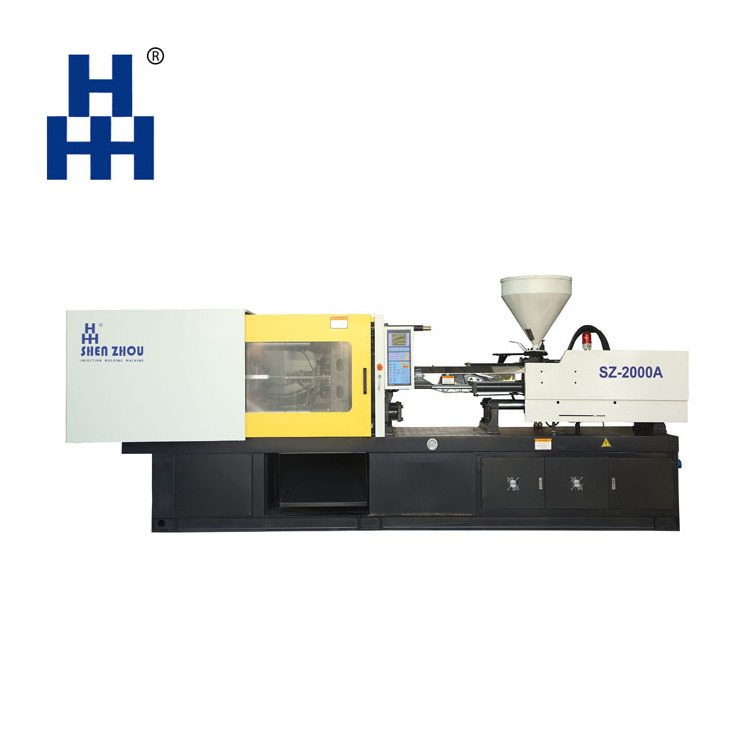

Best automatic plastic injection molding table machine
-
PLC Controller:
-
Techmation/SIEMENS/JINHUA
-
Operation Language:
-
English/French/Arabic/Spanish/Russian
-
Voltage:
-
220V/380V/415/440V
-
Cooling System:
-
Wate Cooling
-
Free Spare Parts:
-
Available
-
Certification:
-
CE SGS ISO BV
-
Marketing Type:
-
Hot Product
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
505mm
-
Distance between Tie Bars(Height)(mm):
-
505mm
-
Ejector Number:
-
5
-
Ejector Stroke(mm):
-
125 mm
-
Ejector Force(kN):
-
53.1 kN
-
Theoretical Shot Volume(cm³):
-
594 cm³
-
Injection Rate (g/s):
-
175 g/s
-
Injection Weight (g):
-
540 g
-
Screw Speed (rpm):
-
1 - 170 rpm
-
Screw diameter (mm):
-
55 mm
-
Screw L/D Ratio:
-
21
-
Distance between Tie Bars:
-
505x505
-
Weight (KG):
-
6800 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
500 mm
-
Model Number:
-
SZ-2000A
-
Brand Name:
-
SHENZHOU
-
Power (kW):
-
30 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
After-sales Service Provided:
-
Online support
-
Name:
-
Best automatic plastic injection molding table machine
-
PLC Controller:
-
Techmation/SIEMENS/JINHUA
-
Operation Language:
-
English/French/Arabic/Spanish/Russian
-
Voltage:
-
220V/380V/415/440V
-
Cooling System:
-
Wate Cooling
-
Free Spare Parts:
-
Available
-
Certification:
-
CE SGS ISO BV
-
Marketing Type:
-
Hot Product
| screw diameter | mm | 50 | 55 | 60 |
| screw L/D RATIO | L/D | 23.1 | 21 | 19.3 |
| shot weight | gram | 447 | 540 | 643 |
| injection capacity | cm³ | 491 | 594 | 7.7 |
| injection pressure | Mpa | 215 | 178 | 149 |
| theoretical injection rate | g/s | 145 | 175 | 208 |
| plastic capacity | mm | 22.4 | 28.7 | 35.4 |
| injection stroke | N.m | 250 | ||
| screw torque | r/min | 1510 | ||
| max screw rotate speed | ton | 170 | ||
| clamping force | mm | 200 | ||
| mould height | mm | 190~530 | ||
| max daylight | mm | 1030 | ||
| ejector force | ton | 5.31 | ||
| ejector stroke | mm | 125 | ||
| ejector quantity | 5 | |||
| oil pump motor | kw | 18.5 | ||
| pump pressure | Mpa | 16 | ||
| heating power | kw | 16.6 | ||
| machine size | m | 5.9*1.5*2.0 | ||
| machine weight | ton | 6.8 | ||
| oil tank capacity | l | 420 | ||
| international designation | 2000-1060 | |||
