Quick Details
-
Voltage:
-
110V/220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SKILT
-
Dimension(L*W*H):
-
2200(L)*1000(W)*1300(H) (mm)
-
Weight:
-
230 KG
-
Machinery Capacity:
-
60-300pcs/min
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
scratch card labeling machine
-
Labeling engine:
-
Germany NOVEXX & servo motor
-
PLC,Touch screen:
-
SIEMENS
-
Function:
-
card Paging Labeling Machine
-
Products range:
-
hang tag, card, bag, flat carton and etc
-
Labeling speed:
-
20-300pcs/min
-
Advantage:
-
Economy Labeling Machine
-
Label material:
-
Adhesive Labeler Sticker
-
Product name:
-
Auto Sticker card Labeling Machine
Quick Details
-
Application:
-
APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Textiles
-
Packaging Type:
-
bags,pouch,tag,card,unshaped carton
-
Packaging Material:
-
Paper, Plastic
-
Voltage:
-
110V/220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SKILT
-
Dimension(L*W*H):
-
2200(L)*1000(W)*1300(H) (mm)
-
Weight:
-
230 KG
-
Machinery Capacity:
-
60-300pcs/min
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
scratch card labeling machine
-
Labeling engine:
-
Germany NOVEXX & servo motor
-
PLC,Touch screen:
-
SIEMENS
-
Function:
-
card Paging Labeling Machine
-
Products range:
-
hang tag, card, bag, flat carton and etc
-
Labeling speed:
-
20-300pcs/min
-
Advantage:
-
Economy Labeling Machine
-
Label material:
-
Adhesive Labeler Sticker
-
Product name:
-
Auto Sticker card Labeling Machine
SKILT Partner
Product Description

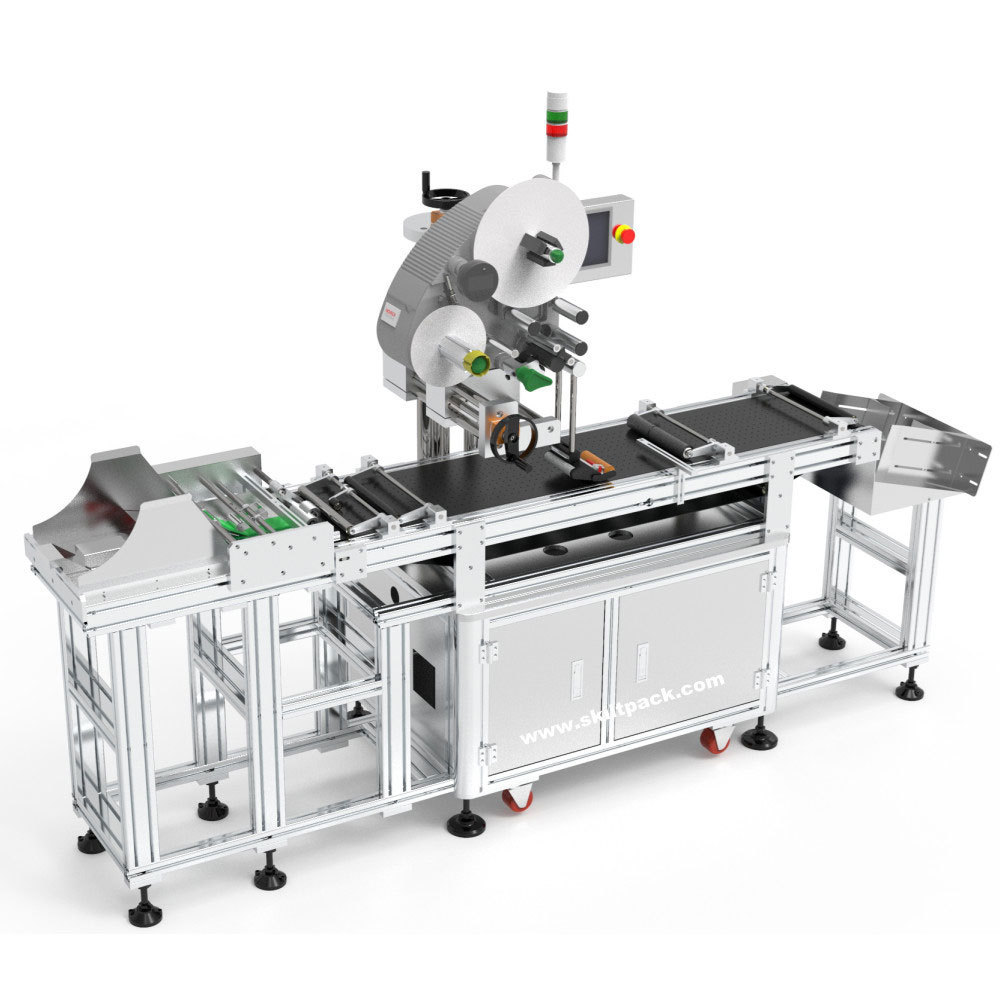

Auto Paging & Labeling Machine Features Introduction
1. SKILT PM-DPM Series Label Applicator applies labels onto flat surfaces featuring with loading platform and high friction
belting.
2. With different kinds auto outfeed for choose, to suit for client differnet kinds products, such as zip bag, pouch, food bag,
card;
3. This series labeling machine can store up to 20 different product profiles consisting of different label sizes,speed and
location of label placement within the machines memory for quick recall during changeover.
WHAT DOES IT HAVE?
1. Novexx Label Head Model ALS204 for 130′ or 40m/minute dispense speed
2. Label Counter, Missing Label Detection and Auto Teach
3. +/- 1 mm Label Placement Accuracy
4. High Friction Conveyor Belt
5. Speed Encoder to lock label dispense speed with conveyor speed
6. Loading Platform for speedy loading of bags. (100+ pouches per minute)
7. Fully adjustable guide railing for quick changeover
WHAT COULD IT HAVE?
1. Up to 6″ Label width with the ALS206 label head
2. Up to 9″ Label Width with the ALS209 label head
3. Different kinds outfeed collection way for choose
4. Hot Stamp Coder or Inkjet Coder
5. Online Print Applicator
6. One more applicator for two stickers on bags
7. Conveyor width and length modification
MACHINE FUNCTION INTRODUCTION
1. Feeder : Paging device, can put labeling objects （for example box) into feeder device, delivery out one by one；
2. Labeling : When bag delivery to the labeling position, past sticker on bag surface directly;
Labeling engine with SKILT Servo control and German Novexx ALS204 for choose.
3. Collection : After finish labeling, delviery to the end part for collection. Collection with different kinds for client choose.
1. SKILT PM-DPM Series Label Applicator applies labels onto flat surfaces featuring with loading platform and high friction
belting.
2. With different kinds auto outfeed for choose, to suit for client differnet kinds products, such as zip bag, pouch, food bag,
card;
3. This series labeling machine can store up to 20 different product profiles consisting of different label sizes,speed and
location of label placement within the machines memory for quick recall during changeover.
WHAT DOES IT HAVE?
1. Novexx Label Head Model ALS204 for 130′ or 40m/minute dispense speed
2. Label Counter, Missing Label Detection and Auto Teach
3. +/- 1 mm Label Placement Accuracy
4. High Friction Conveyor Belt
5. Speed Encoder to lock label dispense speed with conveyor speed
6. Loading Platform for speedy loading of bags. (100+ pouches per minute)
7. Fully adjustable guide railing for quick changeover
WHAT COULD IT HAVE?
1. Up to 6″ Label width with the ALS206 label head
2. Up to 9″ Label Width with the ALS209 label head
3. Different kinds outfeed collection way for choose
4. Hot Stamp Coder or Inkjet Coder
5. Online Print Applicator
6. One more applicator for two stickers on bags
7. Conveyor width and length modification
MACHINE FUNCTION INTRODUCTION
1. Feeder : Paging device, can put labeling objects （for example box) into feeder device, delivery out one by one；
2. Labeling : When bag delivery to the labeling position, past sticker on bag surface directly;
Labeling engine with SKILT Servo control and German Novexx ALS204 for choose.
3. Collection : After finish labeling, delviery to the end part for collection. Collection with different kinds for client choose.
Technical Paramter
|
Model
|
PM-DPM-A & PM-DPM-ALS204
|
|
Driving Mold
|
Germany novexx & servo motor
|
|
Capacity (Pcs/min)
|
50-300 pcs
|
|
Label material
|
Adhesive sticker
|
|
Suitable label size
|
Width:15-110mm Length:15-150mm
|
|
Suitable TAG size
|
can customized
|
|
Voltage
|
AC110V/220V/380V
|
|
Labeling accuracy
|
±1.0 mm
|
|
Total power
|
1000W
|
|
Machine size
|
L2200xW1000xH1300mm
|
|
No
|
Name
|
Brand
|
|
1
|
PLC
|
SIEMENS
|
|
2
|
Touch-screen
|
SIEMENS
|
|
3
|
Labeling engine control system
|
German NOVEXX & Panisonic
|
|
4
|
Photoelectric sensor
(Check tag)
|
Japan KEYENCE
|
|
5
|
Photoelectric sensor
(Check opaque label)
|
German Leuze
|
|
6
|
Main transport motor
|
German JSCC
|
|
7
|
Speed Controller
|
German JSCC
|
