Quick Details
-
Welding Mode:
-
Rolling Seam Welding
-
Welding Diameter:
-
customize
-
Dimensions:
-
According to the Machine Model
-
Use:
-

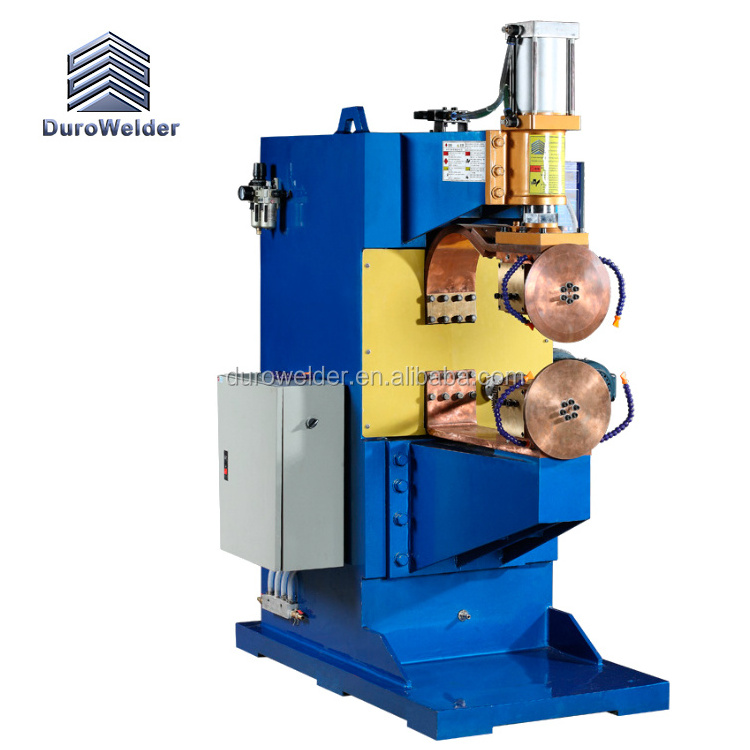

Seam Welding Machine
-
Voltage:
-
380V/
-
Weight (KG):
-
150 KG
-
Type:
-
FN-50KVA
-
Color:
-
Blue
-
Rated Capacity:
-
50KVA
-
Rated Primary Voltage:
-
380V
-
Maximum Short Current:
-
16000A
-
Electrode Stroke:
-
50mm
-
Welding Speed:
-
0.6-4M/min
-
Electrode Pressure:
-
2.5KN
-
Motor Power Source:
-
3-380V
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DuroWelder
-
Forming Time:
-
30L/Min
-
Welding Mode:
-
Rolling Seam Welding
-
Welding Diameter:
-
customize
-
Dimensions:
-
According to the Machine Model
-
Use:
-
Seam Welding Machine
-
Voltage:
-
380V/
-
Weight (KG):
-
150 KG
-
Type:
-
FN-50KVA
-
Color:
-
Blue
-
Rated Capacity:
-
50KVA
-
Rated Primary Voltage:
-
380V
-
Maximum Short Current:
-
16000A
-
Electrode Stroke:
-
50mm
-
Welding Speed:
-
0.6-4M/min
-
Electrode Pressure:
-
2.5KN
-
Motor Power Source:
-
3-380V
|
Item
Model |
Rated
Capacity |
Rated
Primary Voltage |
Rated
Frequency |
Maximum
Short Current |
Electrode
Stroke |
Welding
Speed |
Electrode
Pressure |
Motor
Power Source |
Motor
Power |
Cooling
Water Flow |
Weight |
| KVA | V | Hz | A | mm | M/min | KN | V | W | L/min | Kg | |
| FN-50 | 50 | 380 | 50/60 | 16000 | 50 | 0.6-4 | 2.5 | 3-380V | 90 | 30 | 500 |
| FN-75 | 75 | 380 | 50/60 | 19000 | 50 | 0.6-4 | 3.9 | 3-380V | 150 | 30 | 650 |
| FN-100 | 100 | 380 | 50/60 | 22000 | 50 | 0.6-4 | 4.7 | 3-380V | 150 | 30 | 880 |
| FN-150 | 150 | 380 | 50/60 | 29000 | 50 | 0.6-4 | 6.1 | 3-380V | 150 | 30 | 1050 |
| FN-200 | 200 | 380 | 50/60 | 35000 | 50 | 0.6-4 | 6.1 | 3-380V | 150 | 30 | 1250 |
