Quick Details
-
Production Capacity:
-
200-260bags/min
-
Weight (KG):
-
2400
-
Voltage:
-
220/50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tentoo
-
Dimension(L*W*H):
-
3770L*680W*1420H mm
-
Model Number:
-
TTV-1020
-
Material:
-
Stainless Steel/Painted Steel
-
Capacity:
-
200-260Bag/min
-
Certification:
-
CE
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Production Capacity:
-
200-260bags/min
-
Weight (KG):
-
2400
-
Voltage:
-
220/50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tentoo
-
Dimension(L*W*H):
-
3770L*680W*1420H mm
-
Model Number:
-
TTV-1020
-
Material:
-
Stainless Steel/Painted Steel
-
Capacity:
-
200-260Bag/min
-
Certification:
-
CE

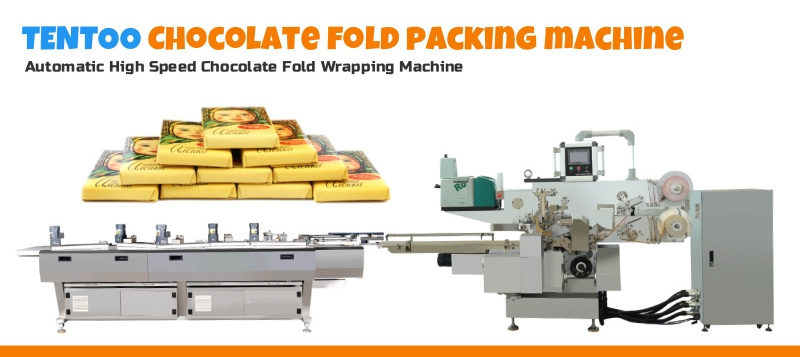

Product Description
Main Performance And Structure Features:
1. The whole machine is controlled by intelligent PLC and servo motor, and the operation is stable and reliable.
2. The machine can carry out inner film packaging and outer film packaging at the same time, and the mold can be customized according to customer requirements.
3. Adopt high-precision electrical components and high-strength mechanical transmission system to ensure high-speed and stable production.
4. It has the function of automatic material detection, rejects unqualified materials, and feeds paper according to material signals.
5. The parts in contact with food are made of stainless steel, in line with health standards
|
Packing Speed
|
200-260pics/min
|
|
Product Dimensions
|
10-8(L)0 *4- 45(W) *4-35(H) mm
|
|
Film width
|
80-130mm
|
|
Total Power
|
3KW
|
|
Power Supply
|
380V, 50Hz
|
|
Air Supply
|
0.6 MPa
|
|

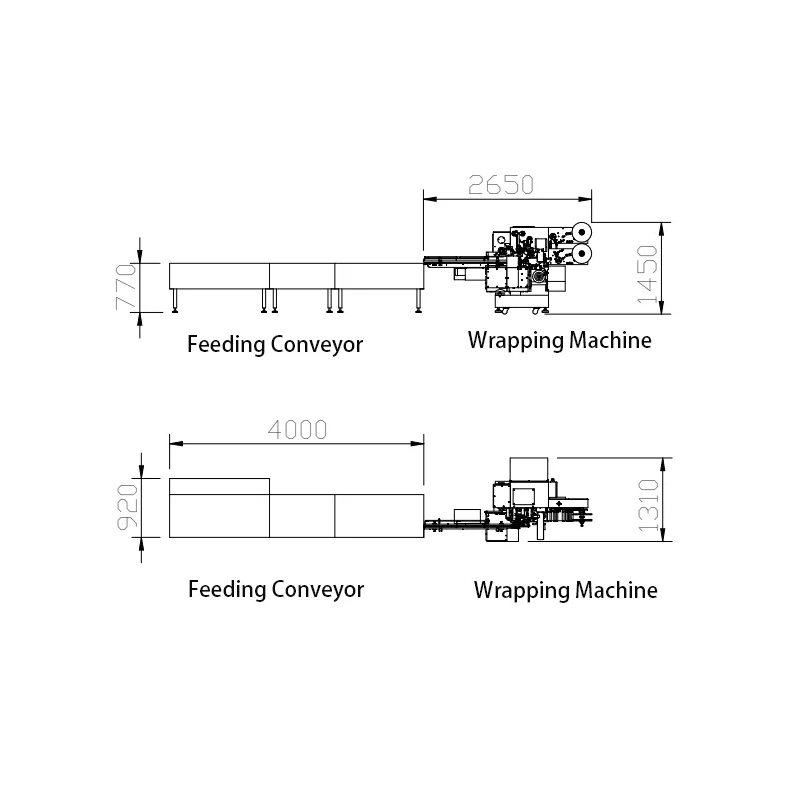

Machine size
|
5998(L)*1315(W)*1860(H)mm
|
|
Machine weight
|
2450kg
|

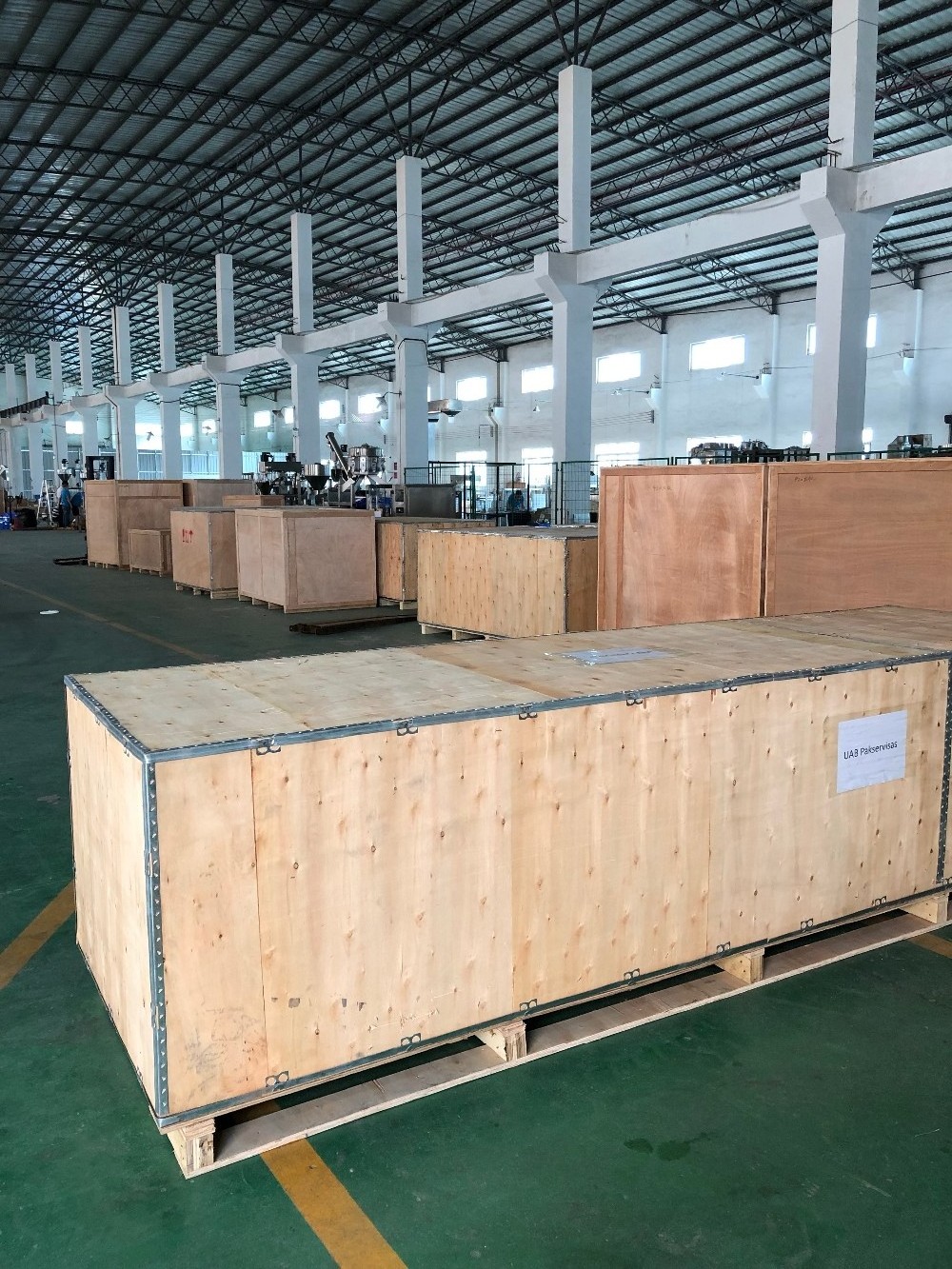

Packing & Delivery
