Quick Details
-
Material of Traffic Barrier Gate:
-
Aluminium Top and Steel Housing
-
Color of Traffic Barrier Gate:
-
Yellow, Grey, Red, Blue and so on
-
Application of Traffic Barrier Gate:
-
Car Stop
-
Power supply of Traffic Barrier Gate:
-
220VAC 50Hz/110VAC 60Hz
-
Motor Power of Traffic Barrier Gate:
-
90WAC/80WDC
-
Time for Up/Down of Traffic Barrier Gate:
-
6S
-
Working Environment of Barrier Gate:
-
-20℃~50℃
-
Protection Class of Traffic Barrier Gate:
-
IP55
-
Weight of Traffic Barrier Gate:
-
65KGS
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
BISEN
-

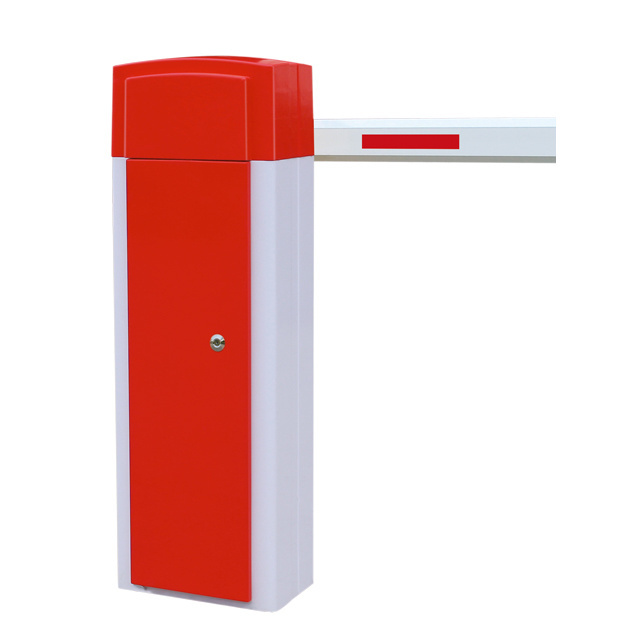

Product Name of Traffic Barrier Gate:
-
BS-206-TIII(A) Road Barrier
-
Material of Traffic Barrier Gate:
-
Aluminium Top and Steel Housing
-
Color of Traffic Barrier Gate:
-
Yellow, Grey, Red, Blue and so on
-
Application of Traffic Barrier Gate:
-
Car Stop
-
Power supply of Traffic Barrier Gate:
-
220VAC 50Hz/110VAC 60Hz
-
Motor Power of Traffic Barrier Gate:
-
90WAC/80WDC
-
Time for Up/Down of Traffic Barrier Gate:
-
6S
-
Working Environment of Barrier Gate:
-
-20℃~50℃
-
Protection Class of Traffic Barrier Gate:
-
IP55
-
Weight of Traffic Barrier Gate:
-
65KGS
Products Description
Model: (AC) Motor
Model:(DC) Motor

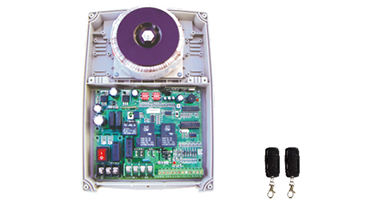

Control Board for AC Motor
Input terminals:
Photocell, Air wave switch, Loop detector, Toll gate system.
Output terminals:
Motor, Lamp

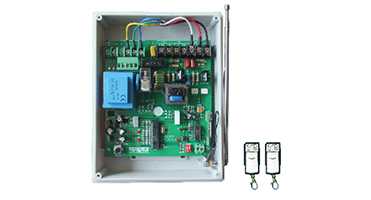

Control Board for DC Motor
Input terminals:
Photocell, Air wave switch, Loop detector, Back-up battery, Toll gate system.
Output terminals:
Motor, Lamp
Functions:
Reverse when meet obstacle.
Force of opening and Closing in adjustable.
mechanism:
2 series mechanism
3 series mechanism
BS-3306,
BS-306,
BS-606
7 series mechanism
BS-6306, BS-7206,
BS-
7306,
BS-
7406,
BS-
7506。
Barrier Pole More……
Baisheng remote control parking barrier trouble shooting
|
Number
|
Trouble
|
Cause
|
Shooting
|
|
1
|
Motor of Barrier does not work
|
1,No power supply
|
1,Check power supply
|
|
|
|
2,Break fuse
|
2,Change fuse
|
|
|
|
3,Motor is damaged
|
3,Change the motor
|
|
2
|
Barrier can open but can not close
|
1,Photocell is not connected properly
|
1,Connect the photocell
|
|
|
|
2,Photocell beam is block off
|
2,Clear out obstacle
|
|
|
|
3,Photocell is broken
|
3,Change a new device
|
|
3
|
Barrier can open (close) but can not close (open)
|
1,Position of limit switch is not correct
|
1,Adjust position
|
|
|
|
2,Limit switch is damaged
|
2,Change limit switch
|
|
4
|
Barrier can not locate accurately
|
1,Distance of limit switch is too large
|
1,Adjust position of limit switch
|
|
|
|
2,Limit switch is wrong
|
2,Change limit switch
|
|
|
|
3,Magnetic-stell’s position is wrong
|
3,Re-adjust the position
|
|
5
|
Release device of Barrier is doesn’t work
|
1,Operating handle is broken
|
1,Change the handle
|
|
|
|
2,Worm gears are jammed
|
2,Rotate the pinion
|
|
6
|
Push the “OPEN” button but the Barrier gate close
|
Whether “+MOTOR-” wires are connected wrong
|
Connect correctly according to wiring diagram
|
|
7
|
Motor of Barrier can work but boom can not work
|
Compression spring of clutch is dead
|
Change the spring
|
