Quick Details
-
Product:
-
Refrigerant Pressure Sensor
-
pressure type:
-
gauge (G)
-
overpressure:
-
150%FS
-
accuracy:
-
0.5%FS(typ.) 1.0%FS(max.)
-
electrical interface:
-
M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT,7/16-20UNF
-
pressure interface:
-
M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT,7/16-20UNF
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Atechsensor
-
Product name:
-

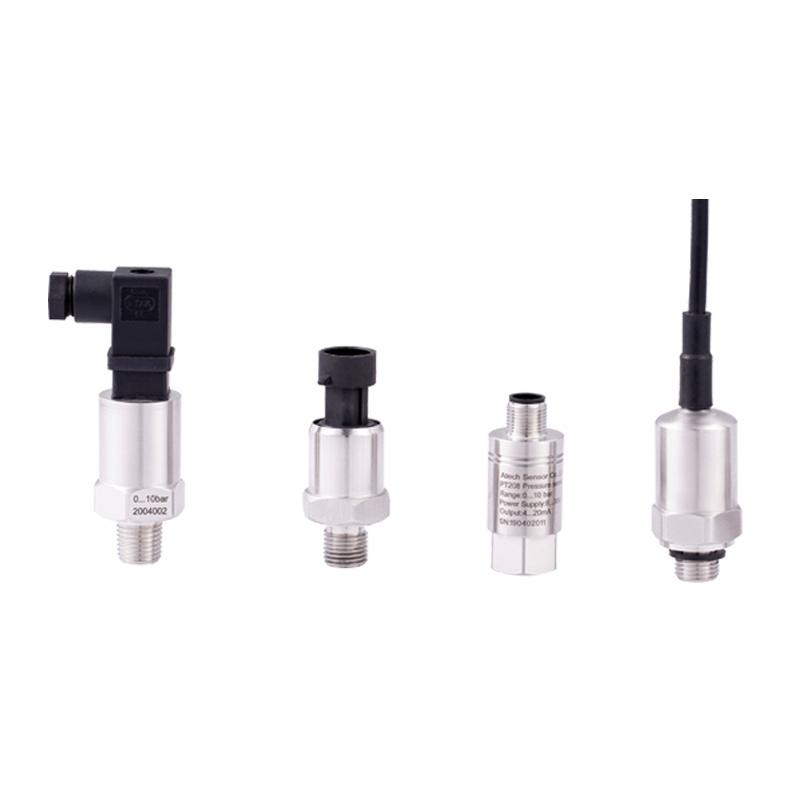

PT-208 4~20mA Hydraulic Ceramic Pressure Transmitter
-
Product:
-
Refrigerant Pressure Sensor
-
pressure type:
-
gauge (G)
-
overpressure:
-
150%FS
-
accuracy:
-
0.5%FS(typ.) 1.0%FS(max.)
-
electrical interface:
-
M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT,7/16-20UNF
-
pressure interface:
-
M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT,7/16-20UNF
|
|
|
Product Description
| pressure medium | gas liquid compatible stainless steel |
| pressure ranges | 0~5...400bar |
| overload pressure | 150%FS |
| Broken Pressure | 250%FS |
| output signal | 4~20mA, 0.5~4.5V,0-10V,0-2V,4.5-5.5v |
| accuracy | 1%FS (standard) 2%FS 0.5%FS |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), >100KΩ (voltage output) |
| long term stability | 0.5%FS/year |
| supply voltage | 10~30V |
| compensated temperature range | -10~80°c |
| operating temperature range | -40~+120°c |
| storage temperature range | -40~+140°c |
| insulation resistance | >100MΩ@ 50VDC |
| response time | 10ms |
| EMC | EMI:EN50081-1/-2, EMS:EN50082-2 |
| process connection | G1/4 or others |
| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | ceramic |
| material of housing | 1Cr18Ni9Ti |
| weight | 88g |
