Quick Details
-
Model Number:
-
DSN5025 SERIES
-
Application:
-
In smart phones, table PCs
-
keywords:
-
0.025mm Grafoil graphite sheets
-
Material:
-
High Purity Graphite
-
Thermal conductivity (X-Y-axis):
-
1500~1700 w/mk
-
Thermal conductivity (Z-axis):
-
10~15w/mk
-
Hardness(shore A):
-
85
-
Density (g/cm3):
-
2.1g/cm3
-
Tensile strength:
-
650psi
-
Temperature resistance:
-
- 40 to 400 degrees centigrade
-
Electric conductivity (s/cm):
-
19000
-
Heat resistance temperature (℃):
-
400
Quick Details
-
C Content (%):
-
99.9%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
DSN
-
Model Number:
-
DSN5025 SERIES
-
Application:
-
In smart phones, table PCs
-
keywords:
-
0.025mm Grafoil graphite sheets
-
Material:
-
High Purity Graphite
-
Thermal conductivity (X-Y-axis):
-
1500~1700 w/mk
-
Thermal conductivity (Z-axis):
-
10~15w/mk
-
Hardness(shore A):
-
85
-
Density (g/cm3):
-
2.1g/cm3
-
Tensile strength:
-
650psi
-
Temperature resistance:
-
- 40 to 400 degrees centigrade
-
Electric conductivity (s/cm):
-
19000
-
Heat resistance temperature (℃):
-
400
Product Description

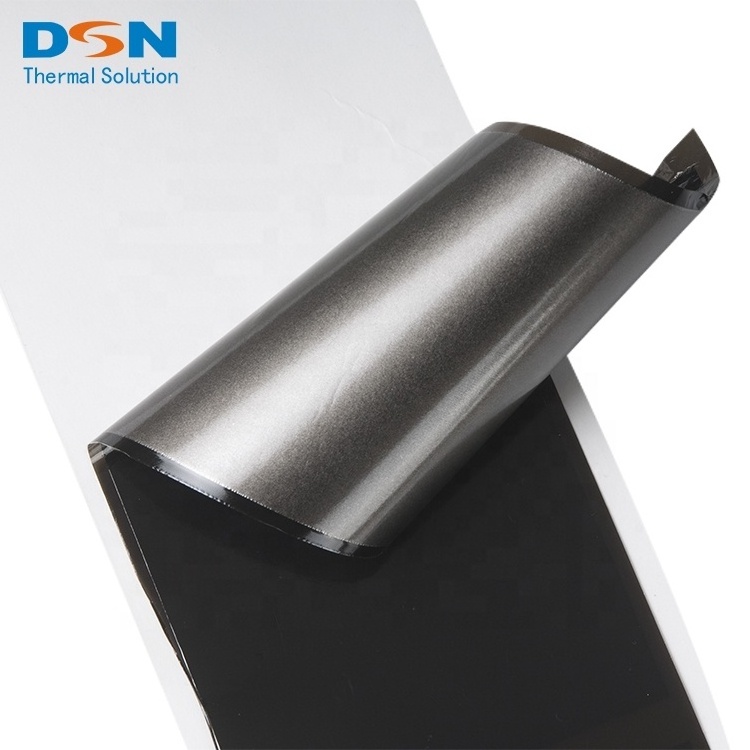

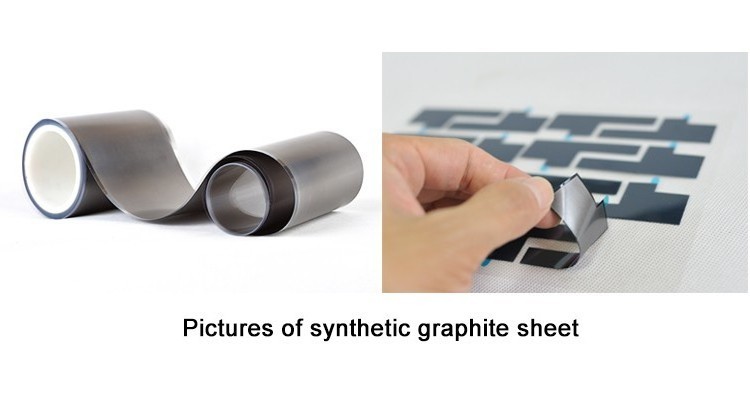

Synthetic graphite sheet
, also called artificial graphite sheet, is a new film material made of Polyimide by sintering.
Features of synthetic graphite sheet:
|
Parameters of the synthetic graphite sheet
|
|
|
|
|
|
|
||||||
|
Thickness(um)
|
|
DSN5017
|
DSN5025
|
DSN5032
|
DSN5040
|
DSN5050
|
||||||
|
|
|
17±3
|
25±3
|
32±3
|
40±5
|
50±5
|
||||||
|
Thermal conductivity
(K/m.k)
|
X-Y axis
|
1600~1800
|
1500~1700
|
1400~1600
|
1200~1400
|
1200~1400
|
||||||
|
|
Z axis
|
10~15
|
10~15
|
10~15
|
10~15
|
10~15
|
||||||
|
Density (g/cm3)
|
|
2.0±0.1
|
2.0±0.1
|
1.9±0.1
|
1.8±0.1
|
1.8±0.1
|
||||||
|
In-plane thermal diffusivity (mm2/s)
|
|
940~1060
|
880~1000
|
860~990
|
780~920
|
780~920
|
||||||
|
Heat capacity (J/g/K)
|
|
0.85±0.01
|
0.85±0.01
|
0.85±0.01
|
0.85±0.01
|
0.85±0.01
|
||||||
|
Operation temperature (℃)
|
|
-40~400
|
-40~400
|
-40~400
|
-40~400
|
-40~400
|
||||||
|
Electric conductivity (s/cm)
|
|
50000
|
50000
|
50000
|
30000
|
20000
|
||||||
|
Thickness(um)
|
|
DSN5060
|
DSN5070
|
DSN5080
|
DSN5090
|
DSN5100
|
|
|
|
|
60±6
|
70±7
|
80±8
|
90±9
|
100±10
|
|
|
Thermal conductivity
(K/m.k)
|
X-Y axis
|
1100~1300
|
1100~1300
|
1000~1200
|
1100~1300
|
1000~1200
|
|
|
|
Z axis
|
15~20
|
15~20
|
15~20
|
15~22
|
15~20
|
|
|
Density (g/cm3)
|
|
1.7±0.1
|
1.7±0.1
|
1.6±0.1
|
1.5±0.1
|
1.5±0.1
|
|
|
In-plane thermal diffusivity (mm2/s)
|
|
760~900
|
760~900
|
730~880
|
790~930
|
770~920
|
|
|
Heat capacity (J/g/K)
|
|
0.85±0.01
|
0.85±0.01
|
0.85±0.01
|
0.875±0.01
|
0.87±0.01
|
|
|
Operation temperature (℃)
|
|
-40~400
|
-40~400
|
-40~400
|
-40~400
|
-40~400
|
|
|
Electric conductivity (s/cm)
|
|
20000
|
20000
|
20000
|
20000
|
20000
|
|

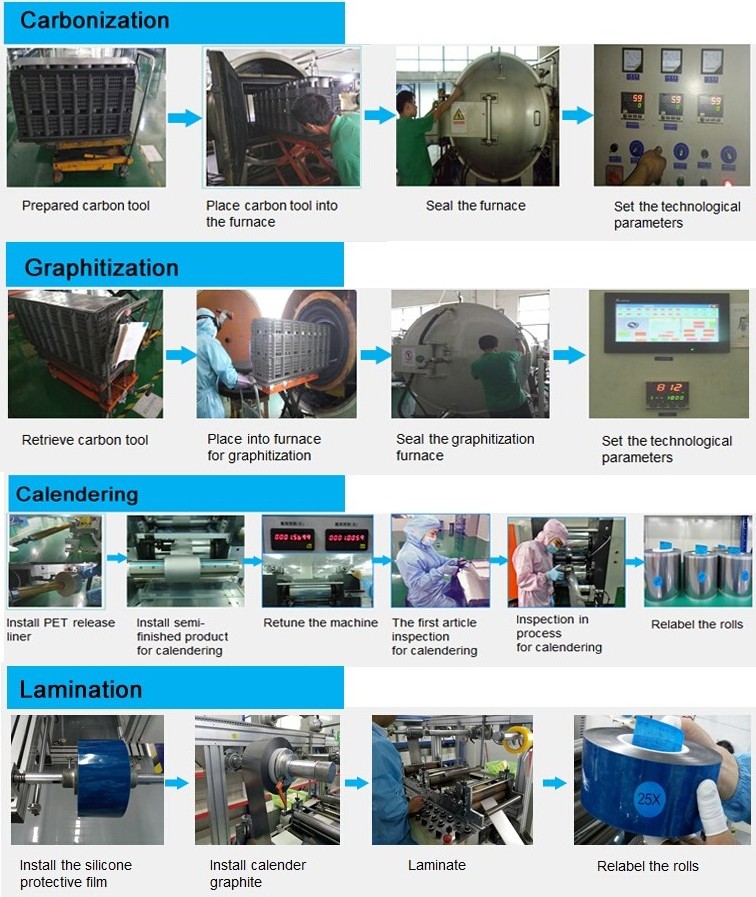

Production process

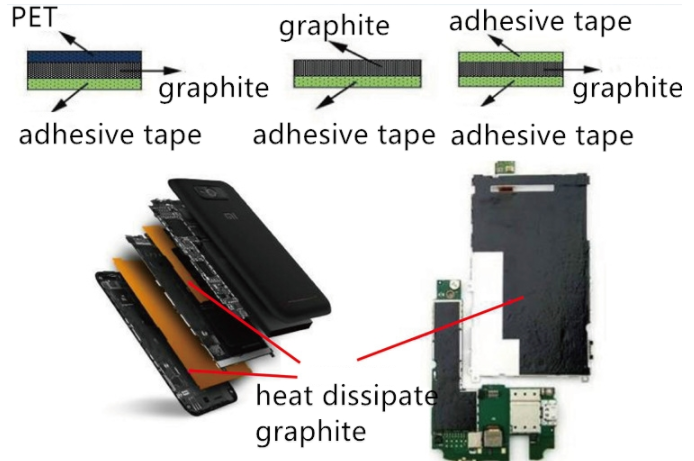

Product Application
Related Products
Dasen
Professional solution provider including pyrolytic graphite, graphene film, vapor chamber, silicone thermal pad, die-cutting, specialties graphite, ceramic filtration membrane.
- Services in telecommunications, industrial consumer electronics and medical, new energy vehicles, machinery, environmental
engineering.
- Used in soft circuit board, backlight module, touch panel, mechanical hardware, finished product assembly and environmental
protection engineering industry
- Four factories: Jiangsu, Jiangxi, Anhui and Shandong.
- Certificates: ISO9001,IATF16949,ISO14001,UL...
engineering.
- Used in soft circuit board, backlight module, touch panel, mechanical hardware, finished product assembly and environmental
protection engineering industry
- Four factories: Jiangsu, Jiangxi, Anhui and Shandong.
- Certificates: ISO9001,IATF16949,ISO14001,UL...
R&D Team
Business Culture
Certificate
ISO9001-2015, ISO14001-2015, IATF16949-2016, UL

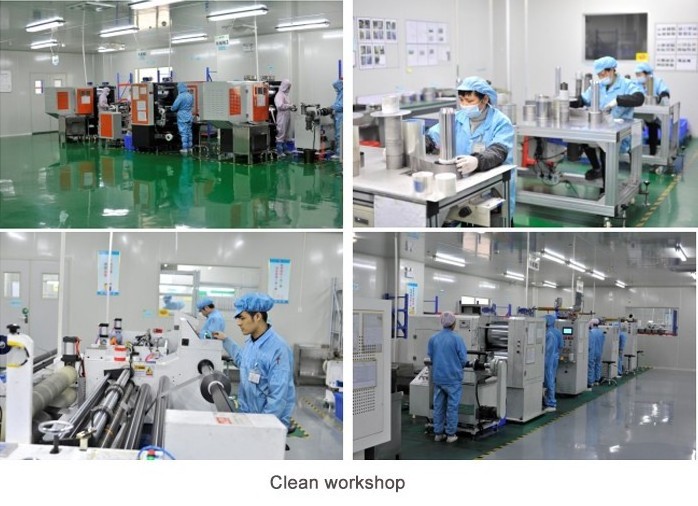

Quality Control
Packaging:
Delivery time:
Partner and Feedback
FAQ
Q1: Do you have MOQ?
A1: No MOQ for the standard products.
Q2: Do you provide samples?
A2: Yes, we do, and can delivery in 24 hours after confirmation for stock.
Q3: Are you factory or trading company?
A3: We are a professional GRAPHITE PRODUCT manufacturer for over 10 years.
Q4: What is the lead time for mass production?
A4: The lead time of mass production is about 5 - 10 working days.
Q5: What is your payment method?
A5: Accept TT, Paypal, West Union, L/C, ect.
Q6: Can you provide finished product processing service?
A6: Yes, we can provide the finished product after die-cutting. Accept OEM.
