Quick Details
-
Voltage:
-
380V / 220V or as you need
-
Weight:
-
150 KG
-
Product name:
-
Rotary Vibrating Screen
-
Motor:
-
Vertical Vibrating Motor
-
Material:
-
Carbon Steel/ Stainless Steel 304
-
Layer(s):
-
1-4 Layers
-
Usage:
-
Powder Granules Separating
-
Cleaning system:
-
Bouncing Ball
-
Advantage:
-
Long Working Life
-
Diameter:
-
400mm-2000mm
-
Mesh size:
-
2-200 Mesh
-
Customized:
-
Support
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hongda
-
Voltage:
-
380V / 220V or as you need
-
Weight:
-
150 KG
-
Product name:
-
Rotary Vibrating Screen
-
Motor:
-
Vertical Vibrating Motor
-
Material:
-
Carbon Steel/ Stainless Steel 304
-
Layer(s):
-
1-4 Layers
-
Usage:
-
Powder Granules Separating
-
Cleaning system:
-
Bouncing Ball
-
Advantage:
-
Long Working Life
-
Diameter:
-
400mm-2000mm
-
Mesh size:
-
2-200 Mesh
-
Customized:
-
Support

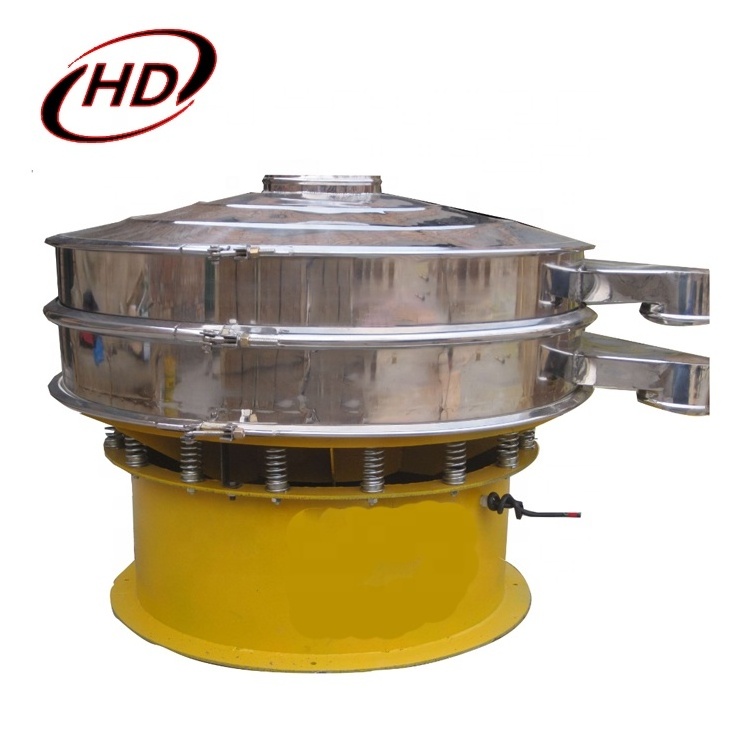

Product Description
XZS series vibrated filter is one of précised powder griddle,Low noise, high efficiency, need only 3-5 minutes to rapidly replace the griddle, all closed structure. Used to filter particles, powder and mucilage.
| Model | Diameter(mm) | Feeding Size(mm) | Frequency(RPM) | Layers | Power(kw) |
| XZS-400 | 400 | <10 | 1500 | 1-5 Layers | 0.25 |
| XZS-600 | 600 | <10 | 1500 | 0.55 | |
| XZS-800 | 800 | <15 | 1500 | 0.75 | |
| XZS-1000 | 1000 | <20 | 1500 | 1.1 | |
| XZS-1200 | 1200 | <20 | 1500 | 1.5 | |
| XZS-1500 | 1500 | <30 | 1500 | 2.2 | |
| XZS-1800 | 1800 | <30 | 1500 | 2.2 | |
| XZS-2000 | 2000 | <30 | 1500 | 3 |
How to confirm the model:
1).If you have ever used the machine,Pls give me the model directly.
2).If you never used this machine or you wanna us to recommend,Pls give me the information as below.
a).The material you wanna to sieve.
b).The capacity(Tons/Hour) that you require?
c).The layers of the machine?And the mesh size of each layer.
d).Your local voltages
e).The special requirement?
1).If you have ever used the machine,Pls give me the model directly.
2).If you never used this machine or you wanna us to recommend,Pls give me the information as below.
a).The material you wanna to sieve.
b).The capacity(Tons/Hour) that you require?
c).The layers of the machine?And the mesh size of each layer.
d).Your local voltages
e).The special requirement?
Applicable Industry
1. Food industry
Our circular vibrating screen can be used for processing starch powder, sugar powder, sale, rice flour, milk powder, soybean mile, sauce, fruit juice, condiment, and so on.
2. Chemical industry
This rotary vibrating sieve is widely used for handling resin powder, paint, industrial chemicals, detergent powder, cosmetic, Chinese medicine powder.
3. Metallurgy industry
In metal processing industry, this rotary vibrating screen can sift aluminum powder, lead powder, copper powder, alloy metal powder.
4. Pollution abatement
Our circular vibrating screen is also suitable for treating waste oil, sewage, accessory ingredient, activated carbon.
1. Food industry
Our circular vibrating screen can be used for processing starch powder, sugar powder, sale, rice flour, milk powder, soybean mile, sauce, fruit juice, condiment, and so on.
2. Chemical industry
This rotary vibrating sieve is widely used for handling resin powder, paint, industrial chemicals, detergent powder, cosmetic, Chinese medicine powder.
3. Metallurgy industry
In metal processing industry, this rotary vibrating screen can sift aluminum powder, lead powder, copper powder, alloy metal powder.
4. Pollution abatement
Our circular vibrating screen is also suitable for treating waste oil, sewage, accessory ingredient, activated carbon.
FAQ:
Q: How about price?
A:
Yes, we are factory and be able to give you the best price with good quality, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
Q: What factors I need to get a quotation?
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage&Frequency(Hz).
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage&Frequency(Hz).
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
