Quick Details
-
Mounting Type:
-
Standard or customized connector
-
Description:
-

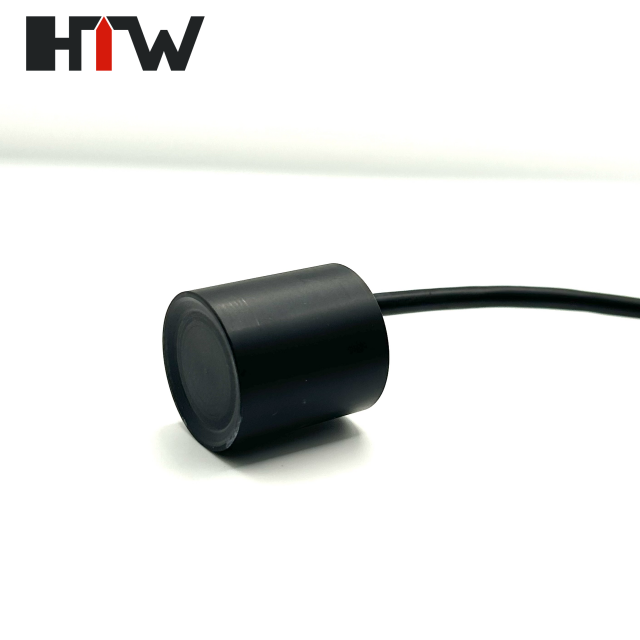

Underwater ultrasonic sensor, Ultrasonic sensor
-
Model Number:
-
Underwater ultrasonic sensor
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
HTW
-
Theory:
-
Ultrasonic sensing
-
Output:
-
Digital output
-
Structure:
-
Full water proof
-
Norminal frequency:
-
130Khz, 500Khz, 2Mhz, 8Mhz
-
Working temp. range:
-
0~40 C°
-
Storage temp. range:
-
0~80 C°
-
Case material:
-
PC
-
Color:
-
Black
Quick Details
-
Usage:
-
Underwater object detection
-
Series:
-
Underwater ultrasonic sensor
-
Features:
-
Transceiver
-
Mounting Type:
-
Standard or customized connector
-
Description:
-
Underwater ultrasonic sensor, Ultrasonic sensor
-
Model Number:
-
Underwater ultrasonic sensor
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
HTW
-
Theory:
-
Ultrasonic sensing
-
Output:
-
Digital output
-
Structure:
-
Full water proof
-
Norminal frequency:
-
130Khz, 500Khz, 2Mhz, 8Mhz
-
Working temp. range:
-
0~40 C°
-
Storage temp. range:
-
0~80 C°
-
Case material:
-
PC
-
Color:
-
Black
| Model | HT-130PLTR2426 | HT-500PLTR2426 | HT-2000PLTR2426 |
| Frequency | 130Khz | 500Khz | 2Mhz |
| Detection range | 60mm~2000mm | 120mm~5000mm | 30mm-2000mm |
| Blind zone | ≤60mm | ≤120mm | ≤30mm |
| Beam angle | 65°±10° | 18°±5° | 8°±2° |
| Power on delay | ≤500ms | ≤500ms | ≤500ms |
| Working voltage | 11-13VDC | 11-13VDC | 4.9~5.1VDC |
| Working current | ≤100mA | ≤100mA | ≤300mA |
| Interface type | RS485 | RS485 | RS485 |
| Baud rate | 115200 | 19200 | 19200 |
| Data bits | 8 | 8 | 8 |
| Check Digit | None | None | None |
| Stop bit | 1 | 1 | 1 |
| Working temp | 0~40℃ | 0~40℃ | 0~40℃ |
| Storage temp | -20~80℃ | -20~80℃ | -20~80℃ |
| environment humidity | ≤90%RH | ≤90%RH | ≤90%RH |
| Storage humidity | ≤90%RH | ≤90%RH | ≤90%RH |
| Water/dust proof | IPX8 | IPX8 | IPX8 |
| Housing structure | PC | PC | PC |
