Quick Details
-
Brand Name:
-
THEHAO
-
Model Number:
-
THQ1-63M
-
Rated Current:
-
63
-
Product name:
-
Dual Power Automatic Transfer Switch
-
Operation type:
-
Automatic Conversion+Manual Operation
-
Pole:
-
4P
-
Function:
-
Automatic Transfer Switch Generator ATS
-
Rated working voltage:
-
AC400 Or Customized
-
Current:
-
6~63amp
-
Color:
-
White
-
Certificate:
-
ISO CCC IEC
-
Application:
-
Widely
Quick Details
-
Type:
-
CB
-
Number of Pole:
-
4
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
THEHAO
-
Model Number:
-
THQ1-63M
-
Rated Current:
-
63
-
Product name:
-
Dual Power Automatic Transfer Switch
-
Operation type:
-
Automatic Conversion+Manual Operation
-
Pole:
-
4P
-
Function:
-
Automatic Transfer Switch Generator ATS
-
Rated working voltage:
-
AC400 Or Customized
-
Current:
-
6~63amp
-
Color:
-
White
-
Certificate:
-
ISO CCC IEC
-
Application:
-
Widely

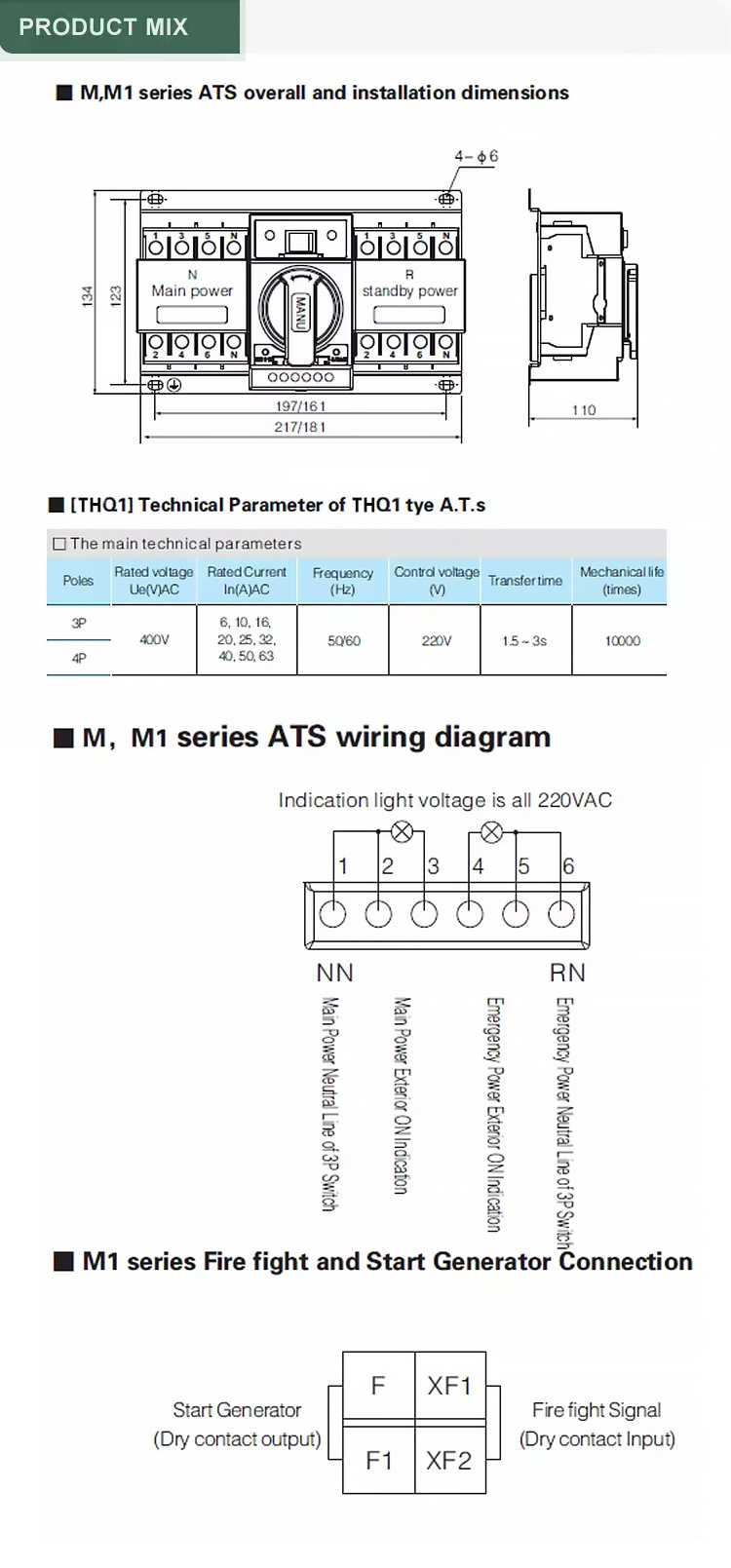

Products Description
Specitificate
|
Type
|
THQ1-63M
|
|
Rated Working Voltage
|
AC400V
|
|
Rated Insulation Voltage
|
AC400V
|
|
Rated Working Current
|
6A,10A,16A,20A,25A,32A,40A,50A,63A
|
|
Poles
|
3P,4P
|
|
Rated Frequency
|
50/60Hz
|
|
Control Voltage
|
AC220
|
|
Transfer Time
|
1.5-35
|
|
Mechanical Life
|
10000times
|
THQ1 series of CB-Class dual-power supply automatic switch is the latest company Technology development of high-tech products. It is line with GB/T14048.11,IEC60947-6-1 superscript. And also with “high-rise buildings fire norms "and “Architectural Design fire norms”, "Emergency Lighting Design Guide” “civil electrical design specifications”
* Small in volume, simple constitution ,easy operation ,long lifespan:
* Transfer switch driving by sing motor ,a smooth ,no noise ,the impact is small
* 2 Pole,3 Pole,4 Pole all you can choose
* Rated voltage of AC 400V,rated current is from 6Amp to 63Amp
2 APPLICATION SCOPE
2.1This series automatic transfer switch, which applies to the AC rated voltage not exceeding
2.2415V, rated frequency 50/60HZ, rated current 63A and below, double-power switching power
2.3Supply system. To ensure that medical Hospitals, shopping centers, banks, fire, communications,
2.4High rise buildings and other places not allowed to supplying electricity.
3 FUNTION CHARACTER
3.1. The product structure is simple, practical and convenient operation, long life.
3.2. Have the function of breaking capacity and features.
3.3. This product has a chain of electrical and mechanical interlock to ensure that the two Power supply can not supply at the same time.
3.4. Self-input and Self-recover function
3.5. Automatic and Manual function
4 WORKING CONDITION
4.1. Surrounding temperature no higher than +40°C and no lower than -10°C.
4.2. Installation site: Altitude above sea level not high than 2000m.
4.3. Pollution level: 3 level, no explosion danger in the air around, with no corrosion metal original and damage of the insulation gas, liquid and conductive dust.
4.4. Atmospheric conditions: RH of air not exceeding 50% under the max temperature
+40°C ,no high RH under low temperature; the average temperature of the wettest month not exceeding +25°C and the average max RH of the month not exceeding 90%.
4.5 In case the above conditions can not be satisfied with the user and the manufacturer should
Settle the issue through negotiation.
