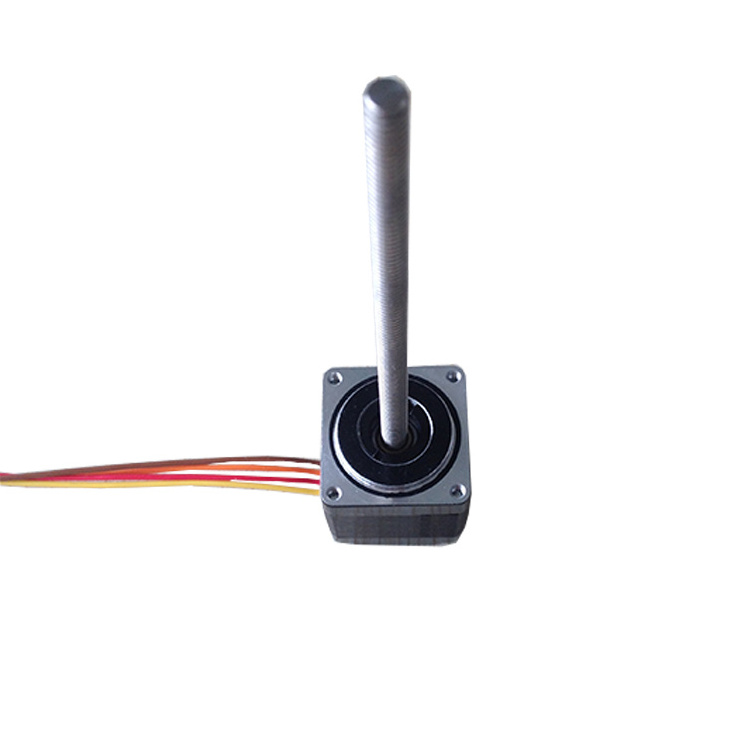

GTW 11HY3403-100N5 High quality external micro nema 11 linear lead 8mm lead screw linear stepper motor
GTW 11HY3403-100N5 High quality external micro nema 11 linear lead 8mm lead screw linear stepper motor
GTW 11HY3403-100N5 High quality external micro nema 11 linear lead 8mm lead screw linear stepper motor
GTW 11HY3403-100N5 High quality external micro nema 11 linear lead 8mm lead screw linear stepper motor
GTW 11HY3403-100N5 High quality external micro nema 11 linear lead 8mm lead screw linear stepper motor
GTW 11HY3403-100N5 High quality external micro nema 11 linear lead 8mm lead screw linear stepper motor
GTW 11HY3403-100N5 High quality external micro nema 11 linear lead 8mm lead screw linear stepper motor
GTW 11HY3403-100N5 High quality external micro nema 11 linear lead 8mm lead screw linear stepper motor

GTW 11HY3403-100N5 High quality external micro nema 11 linear lead 8mm lead screw linear stepper motor

FOB Reference Price: Get Latest Price
≥2 Pieces
US $28.58
≥200 Pieces
US $24.86
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
GTW
Model Number:
11HY3403-100N5
Current / Phase:
0.75A
Voltage:
2.4V
Resistance:
3.2 OM±10%
Inductance:
2 mH±20%
Length:
34mm
Weight:
0.12kg
Function:
Control
Certification:
RoHS CE ISO
Temperature Rise:
80°C Max
Insulation Resistance:
100MΩMin. 500VDC
Dielectric Strength:
500VAC for one minute

Quick Details

Phase:
2
Type:
Hybrid
Place of Origin:
Zhejiang, China
Brand Name:
GTW
Model Number:
11HY3403-100N5
Current / Phase:
0.75A
Voltage:
2.4V
Resistance:
3.2 OM±10%
Inductance:
2 mH±20%
Length:
34mm
Weight:
0.12kg
Function:
Control
Certification:
RoHS CE ISO
Temperature Rise:
80°C Max
Insulation Resistance:
100MΩMin. 500VDC
Dielectric Strength:
500VAC for one minute
Item Specification
Step Angle 1.8°
Step Angle Accuracy ±5% (full step,no load)
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80°CMax.(rated current,2 phase on)
Ambient Temperature -10°C~+50°C
Insulation Resistance 100MΩMin.  500VDC
Dielectric Strength 500VAC for one minute
Shaft Radial Play 0.06Max.(450 g-load)
Shaft Axial Play 0.08Max.(450 g-load)
Phase Voltage Current Inductance Resistance Holding Rotor Weight Length Wire
No. Torque Inertia No.
V A mh ±20% Ω ±10% mN.m g.cm ² kg mm
2 2.4 0.75 2 3.2 80 9 0.12 34 4
Screw Dia Screw Dia lead Lead Travel Per Step
(inch) (mm) (inch) (mm) (mm)
0.138 3.5052 0.024 0.609 0.003
0.138 3.5052 0.048 1.219 0.0061
0.188 4.7752 0.025 0.635 0.0031
0.188 4.7752 0.05 1.27 0.0063
0.196 5 0.0787 2 0.01
0.219 5.56 0.048 1.219 0.0061
0.219 5.56 0.096 2.438 0.0122
0.219 5.56 0.192 4.8768 0.0244
0.219 5.56 0.384 9.7536 0.0488
0.25 6.35 0.125 3.175 0.0159
0.25 6.35 0.25 6.35 0.0318
0.31 8 0.157 4 0.02
0.31 8 0.314 8 0.04
0.31 8 0.472 12 0.06
0.31 8 0.628 16 0.08
0.31 8 0.787 20 0.1
