Quick Details
-
Brand Name:
-
ZMELEC
-
Model Number:
-
TDGC2-3KVA
-
current:
-
also can do DC output adjustable
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZMELEC
-
Model Number:
-
TDGC2-3KVA
-
current:
-
also can do DC output adjustable
Product Description

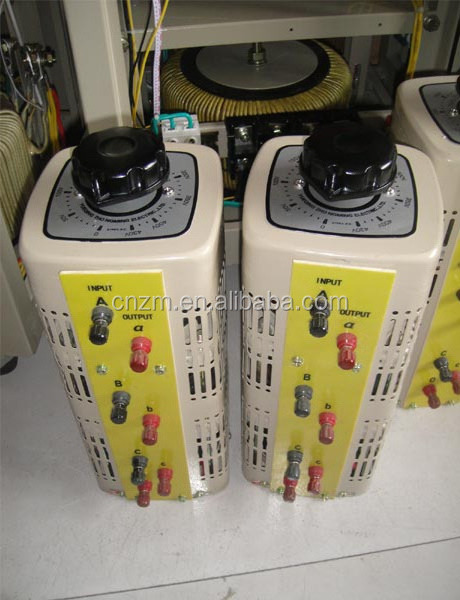

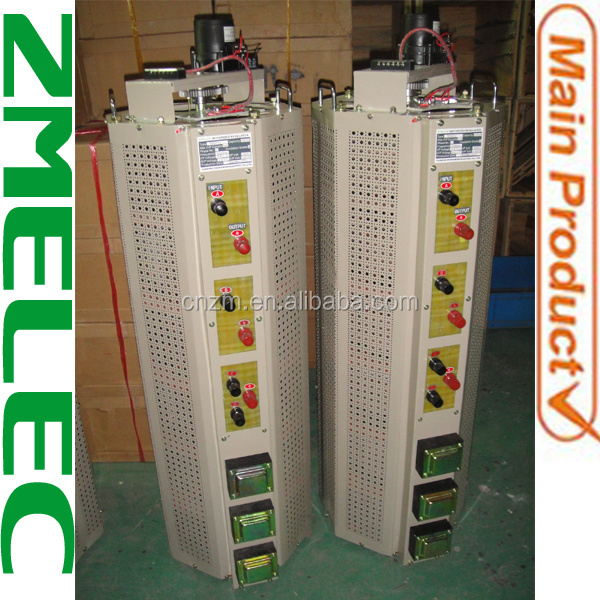

TDGC2,TSGC2 Series of Contacts Regulator/ variac transformer
Feautre:
TDGC2,TSGC2 is series energy-saving voltage regulator are made of imported silicon steel,it can successively adjust the output voltage(single-phase 0~250V,three-phase(0~430V),with the features of no waveform distortion,small volume,light weight,high efficiency,convenient use,reliable performance and so on
Main Technical Data:
Phase no.: Single-phase, three-Phase
Input voltage: Single-phase 220V, three-phase 380V Output voltage : Single-phase 0~250V, three- phase 0~430V Frequency: 50Hz
Model means
TDGC2
,TSGC2
T:
Regulator
D:
Single phase
S:
Three phase
D:
dry self-cooled
C
: Contact
2:
Economic design serial number. according to china standard since 1982 after unified national design
Application:
This kind regulator can be applied in industry,scientific experiment,public facilities and domestic appliances to achieve the goal of voltage regulating,temperature controlling,light regulating,power controlling and so on.
Detail Specification:
|
Model
|
Rating Power
(kVA)
|
Phase
No.
|
Frequency
(Hz)
|
Input volt.
(V)
|
Output volt
(V)
|
Output current(A)
|
|
TDGC2-0.2
|
0.2
|
1
|
50
|
220
|
0~250
|
0.8
|
|
TDGC2-0.5
|
0.5
|
1
|
50
|
220
|
0~250
|
2
|
|
TDGC2-1
|
1
|
1
|
50
|
220
|
0~250
|
4
|
|
TDGC2-2
|
2
|
1
|
50
|
220
|
0~250
|
8
|
|
TDGC2-3
|
3
|
1
|
50
|
220
|
0~250
|
12
|
|
TDGC2-5
|
5
|
1
|
50
|
220
|
0~250
|
20
|
|
TDGC2-10
|
10
|
1
|
50
|
220
|
0~250
|
40
|
|
TDGC2-15
|
15
|
1
|
50
|
220
|
0~250
|
60
|
|
TSGC2-3
|
3
|
3
|
50
|
380
|
0~430
|
4
|
|
TSGC2-6
|
6
|
3
|
50
|
380
|
0~430
|
8
|
|
TSGC2-9
|
9
|
3
|
50
|
380
|
0~430
|
12
|
|
TSGC2-15
|
15
|
3
|
50
|
380
|
0~430
|
20
|
|
TSGC2-30
|
30
|
3
|
50
|
380
|
0~430
|
40
|
Note: Regulator insulation grade is B grade, carbon brush contact point restrict no more 90 degree.(use semiconductor thermometer method measure)
Packaging & Shipping
Full container voltage regulator/voltage stabilizer loading all is three phase from 15kva to 50kva for control left(elevator).
FUll container voltage regulator/voltage stabilizer loading 10pcs three phase voltage stabilizer 50kva.rest all is single phase voltage stabilizer
General we shipping to NingBO or Shanghai sea port.we can do FOB or CIF of CNF price.
