Quick Details
-
Dimensions (L x W x H) (mm):
-
5950*2000*3000mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Beijun
-
Max working height:
-
25m-46m
-
Axle Distance:
-
3360mm-4500mm
-
Cross Weight:
-
4495kg-18000
-
Working Platform Rated Load:
-
200kg-300kg
-
Brand:
-
Beijun
-
Driving Mode:
-
4*2
-
Boom Form:
-
Six-section SynchronousTelescopic Boom
-
Chassis brand:
-
Isuzu Engine
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 6
-
After-sales Service Provided:
-
Video technical support, Online support
-
Dimensions (L x W x H) (mm):
-
5950*2000*3000mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Beijun
-
Max working height:
-
25m-46m
-
Axle Distance:
-
3360mm-4500mm
-
Cross Weight:
-
4495kg-18000
-
Working Platform Rated Load:
-
200kg-300kg
-
Brand:
-
Beijun
-
Driving Mode:
-
4*2
-
Boom Form:
-
Six-section SynchronousTelescopic Boom
-
Chassis brand:
-
Isuzu Engine
Product Description
Specification
|
Item
|
|
Truck Mounted Aerial Work Platform Parameter
|
|
|
|
|
|||||
|
Model
|
|
GKBJ-25
|
GKBJ-28
|
GKBJ-34
|
GKBJ-38
|
GKBJ-46
|
|||||
|
The Max Working Height
|
|
25m
|
28m
|
34m
|
38m
|
46m
|
|||||
|
Overall Length
|
|
5950
|
5995
|
7800
|
9640
|
9680
|
|||||
|
Overall Width
|
|
2000
|
1950
|
2480
|
2550
|
2550
|
|||||
|
Overall Height
|
|
3000
|
2990
|
3460
|
3950
|
3800
|
|||||
|
Axle Distance
|
|
3360
|
3360
|
3800
|
3950
|
4500
|
|||||
|
Front Suspension
|
|
1070
|
1070
|
1130
|
1430
|
1430
|
|||||
|
Rear Suspension
|
|
1520
|
1520
|
2430
|
2550
|
2920
|
|||||
|
Front Protraction
|
|
|
|
--
|
--
|
--
|
|||||
|
Rear Protraction
|
|
|
|
440
|
1710
|
830
|
|||||
|
Permitted Driver Number
|
|
2
|
2
|
3
|
3
|
3
|
|||||
|
Cross Weight
|
|
4495
|
4495
|
11995
|
16200
|
18000
|
|||||
|
Maximum Travel Speed
|
|
80
|
80
|
80
|
80
|
80
|
|||||
|
Minimum Ground Clearance
|
|
200
|
|
|
300
|
300
|
|||||
|
Approach Angle
|
|
20
|
20
|
|
16
|
17
|
|||||
|
Departure Angle
|
|
14
|
|
|
10
|
9
|
|||||
|
Working Platform Rated Load
|
|
200
|
200
|
300
|
300
|
300
|
|||||
|
Work Platform Dimension
|
|
1400*800*1150
|
1400*800*1150
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|||||
|
Maximum Operating Height
|
|
25
|
28
|
34
|
38
|
46
|
|||||
|
Operating Range at Maximum Operating Height
|
|
3
|
3
|
24
|
27
|
39
|
|||||
|
Maximum Operating Range
|
|
12
|
12
|
18
|
20
|
22
|
|||||
|
Operating Height at Maximum Operating Range
|
|
20
|
25
|
5
|
5.16
|
6
|
|||||
|
Max Lifting Weight
|
|
|
|
--
|
--
|
--
|
|||||
|
Maximum Lifting Height
|
|
|
|
--
|
--
|
--
|
|||||
|
Rotating Speed
|
|
110
|
120
|
≥60
|
≥60
|
≥60
|
|||||
|
Platform Lifting Time
|
|
≥120
|
≥120
|
≥120
|
≥120
|
≥120
|
|||||
|
Platform Descent Time
|
|
≥95
|
≥95
|
≥95
|
≥95
|
≥95
|
|||||
|
Model of Chassis
|
|
JX1041TG26
|
EQ1045SJ16DC
|
EQ1125SJ8CDC
|
DFH1160BX1
|
DFH1180EX8
|
|||||
|
Engine Model
|
|
Isuzu Engine(China Ⅵ）
|
Q23-95E60 Diesel Engine 95 HP
|
YCY30165-60
|
D4.ONS6B185
|
B6.2NS6B230
|
|||||
|
Driving Mode
|
|
4×2
|
4×2
|
4×2
|
4×2
|
4×2
|
|||||
|
Cab
|
|
Single Row Seat, 2 People, Air Conditioner
|
Single Row Seat, 2 People, Air Conditioner
|
Flat Top, Single Row, 3 Seats
|
Flat Top,Half Platoon, 3 Seats
|
Flat Top,Half Platoon, 3 Seats
|
|||||
|

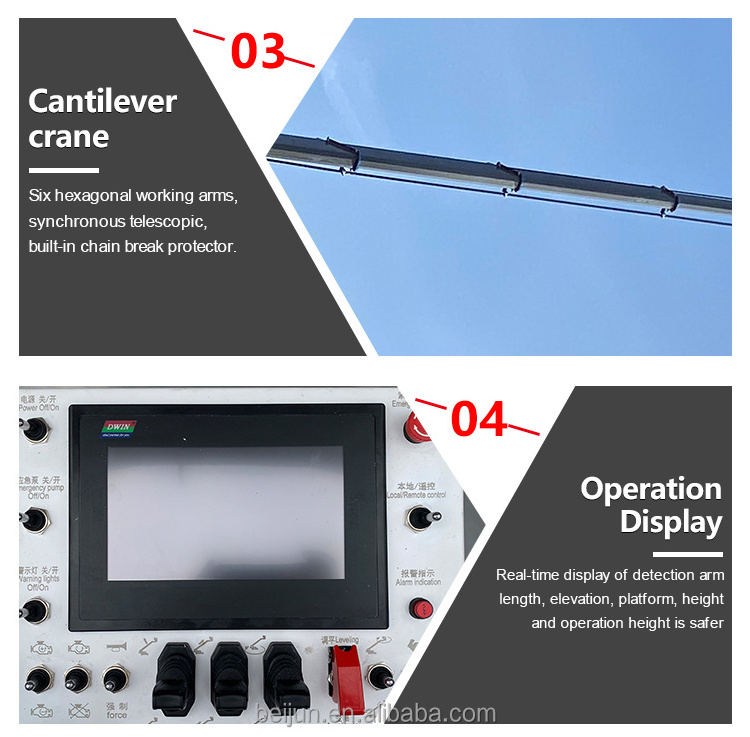

Boom Form
|
|
Six-section SynchronousTelescopic Boom
|
Six-section SynchronousTelescopic Boom
|
Seven-section SynchronousTelescopic Boom
|
Seven-section SynchronousTelescopic Boom
|
Seven-section SynchronousTelescopic Boom
|
|||||
|
Material
|
|
Imported High Strength Steel/3-4
|
Imported High Strength Steel/3-4
|
Imported High Strength Steel/3-4
|
Imported High Strength Steel/4-5
|
Imported High Strength Steel/4-5
|
|||||
|
Boom Section
|
|
Hexagon
|
Hexagon
|
Hexagon
|
Hexagon
|
Hexagon
|
|||||
|
Amplitude of Variation
|
|
Double cylinder amplitude, more safe and stable
|
Double cylinder amplitude, more safe and stable
|
Double cylinder amplitude, more safe and stable
|
Double cylinder amplitude, more safe and stable
|
Double cylinder amplitude, more safe and stable
|
|||||
|
Angle of Relief
|
|
0°-78°(relative horizontal plane)
|
0°-78°(relative horizontal plane)
|
0°-78°(relative horizontal plane)
|
0°-78°(relative horizontal plane)
|
0°-78°(relative horizontal plane)
|
|||||
|
Safety Device
|
|
Limit Indicator Light
|
Limit Indicator Light
|
Limit Indicator Light
|
Limit Indicator Light
|
Limit Indicator Light
|
|||||
|
Outrigger Form
|
|
Front X Type, Rear H Type Horizontal 1 Section
|
Front X Type, Rear H Type Horizontal 2 Sections
|
Front X Type, Rear H Type Horizontal 2 Sections
|
Front X Type, Rear H Type Horizontal 2 Sections
|
Front X Type, Rear H Type Horizontal 2 Sections
|
|||||
|
Outrigger Material
|
|
Baosteel High Strength Steel/5-6mm
|
Baosteel High Strength Steel/5-6mm
|
Baosteel High Strength Steel/5-6mm
|
Baosteel High Strength Steel/5-6mm
|
Baosteel High Strength Steel/5-6mm
|
|||||
|
Outrigger Span
|
|
Vertical（mm）3900
|
Vertical（mm）3860
|
Vertical（mm）6757
|
Vertical（mm）7200
|
Vertical（mm）7450
|
|||||
|
|
|
Horizontal（mm）Front：4300 Rear：4100
|
Horizontal（mm）Front：5450 Rear：5450
|
Horizontal（mm）Front：6124 Rear：6503
|
Horizontal（mm）Front：7400 Rear：7800
|
Horizontal（mm）Front：7570 Rear：8100
|
|||||
|
Hydraulic Lock
|
|
All four legs have two-way hydraulic locks
|
All four legs have two-way hydraulic locks
|
All four legs have two-way hydraulic locks
|
All four legs have two-way hydraulic locks
|
All four legs have two-way hydraulic locks
|
|||||
|
Outrigger Safety Device
|
|
Detection Switch, Alarm Light, Buzzer and Level
|
Detection Switch, Alarm Light, Buzzer and Level
|
Detection Switch, Alarm Light, Buzzer and Level
|
Detection Switch, Alarm Light, Buzzer and Level
|
Detection Switch, Alarm Light, Buzzer and Level
|
|||||
|
Outrigger Strobe Light
|
|
Yellow; Front and Back Four
|
Yellow; Front and Back Four
|
Yellow; Front and Back Four
|
Yellow; Front and Back Four
|
Yellow; Front and Back Four
|
|||||
|
Hydraulic Oil Tank
|
|
200L；Level Gauge
|
200L；Level Gauge
|
200L；Level Gauge
|
200L；Level Gauge
|
200L；Level Gauge
|
|||||
|
Gear Pump
|
|
Flow 32ml/r
|
Flow 32ml/r
|
Flow 32ml/r
|
Flow 40ml/r
|
Flow 50ml/r
|
|||||
|
Working Pressure
|
|
20MPA Papressure Gauge
|
20MPA Papressure Gauge
|
20MPA Papressure Gauge
|
20MPA Papressure Gauge
|
20MPA Papressure Gauge
|
|||||
|
Hydraulic Block
|
|
Electro-hydraulic proportional valve set with manual emergency button
|
Electro-hydraulic proportional valve set with manual emergency button
|
Electro-hydraulic proportional valve set with manual emergency button
|
Electro-hydraulic proportional valve set with manual emergency button
|
Electro-hydraulic proportional valve set with manual emergency button
|
|||||
|

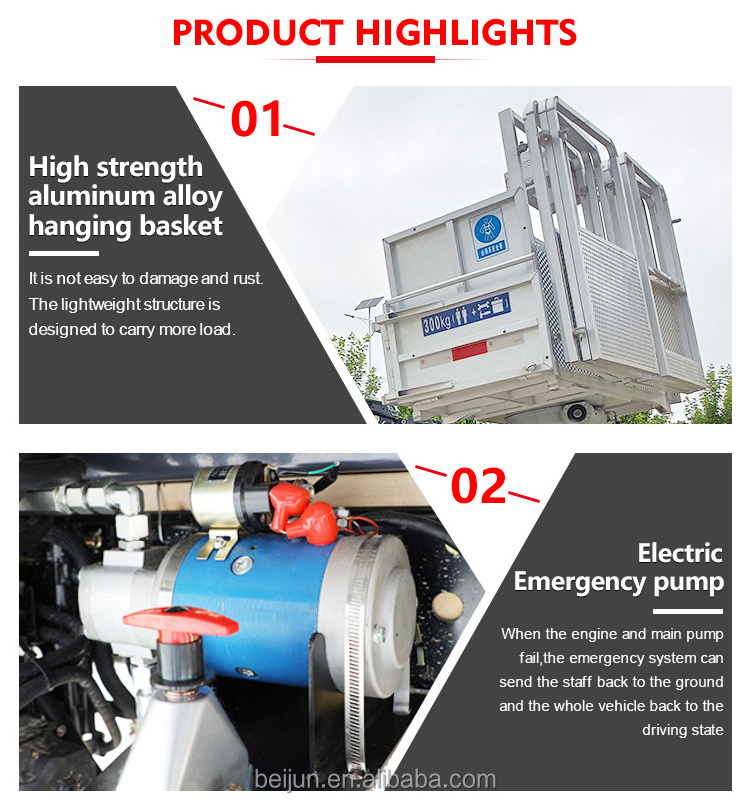

Emergency Pump
|
|
Electric Emergency Pump
|
Electric Emergency Pump
|
Electric Emergency Pump
|
Electric Emergency Pump
|
电动应急泵Electric Emergency Pump
|
|||||
|
Cylinder
|
|
8 Cylinders; With bidirectional balance valve or hydraulic lock for locking, to ensure safety
|
12 Cylinders; With bidirectional balance valve or hydraulic lock for locking, to ensure safety
|
13 Cylinders; With bidirectional balance valve or hydraulic lock for locking, to ensure safety
|
13 Cylinders; With bidirectional balance valve or hydraulic lock for locking, to ensure safety
|
13 Cylinders; With bidirectional balance valve or hydraulic lock for locking, to ensure safety
|
|||||
|
Material
|
|
High quality carbon steel and aluminum alloy, spread a double layer of 25㎜ non-slip pattern aluminum plate
|
High quality carbon steel and aluminum alloy, spread a double layer of 25㎜ non-slip pattern aluminum plate
|
High quality carbon steel and aluminum alloy, spread a double layer of 25㎜ non-slip pattern aluminum plate
|
High quality carbon steel and aluminum alloy, spread a double layer of 25㎜ non-slip pattern aluminum plate
|
High quality carbon steel and aluminum alloy, spread a double layer of 25㎜ non-slip pattern aluminum plate
|
|||||
|
Side and Rear Protection
|
|
Carry a tool box on each side
|
Carry a tool box on each side
|
Carry a tool box on each side
|
Carry 2 tool boxes on each side
|
Carry 2 tool boxes on each side
|
|||||
|
Vertical Boom
|
|
Welded by imported high strength steelcomposition
|
Welded by imported high strength steelcomposition
|
Welded by imported high strength steelcomposition
|
Welded by imported high strength steelcomposition
|
Welded by imported high strength steelcomposition
|
|||||
|
Pivoting Support
|
|
Single row four point contact ball type with outer teeth
|
Single row four point contact ball type with outer teeth
|
Single row four point contact ball type with outer teeth
|
Single row four point contact ball type with outer teeth
|
Single row four point contact ball type with outer teeth
|
|||||
|
Rotation
|
|
Left and Right 360 Rotation
|
Left and Right 360 Rotation
|
Left and Right 360 Rotation
|
Left and Right 360 Rotation
|
Left and Right 360 Rotation
|
|||||
|
Decelerator
|
|
2 Planet-Gear Reducers
|
2 Planet-Gear Reducers
|
2 Planet-Gear Reducers
|
2 Planet-Gear Reducers
|
2 Planet-Gear Reducers
|
|||||
|
Hydraulic Motor
|
|
2个 Two
|
2个 Two
|
2个 Two
|
2个 Two
|
2个 Two
|
|||||
|
Rated Load
|
|
≤200Kg
|
≤200Kg
|
≤200Kg
|
≤300Kg
|
≤300Kg
|
|||||
|
Maximum Customized Size
|
|
|
|
|
3200×1150×1100
|
|
|||||
|
Material
|
|
High Quality Carbon Steel Square Pipe
|
High Quality Carbon Steel Square Pipe
|
High Quality Carbon Steel Square Pipe
|
High Quality Carbon Steel Square Pipe
|
High Quality Carbon Steel Square Pipe
|
|||||
|
Leveling Form
|
|
Static Hydraulic Automatic Leveling
|
Static Hydraulic Automatic Leveling
|
Static Hydraulic Automatic Leveling
|
Static Hydraulic Automatic Leveling
|
Static Hydraulic Automatic Leveling
|
|||||
|
Rotation
|
|
Electric 360° Continuous Rotation
|
Electric 360° Continuous Rotation
|
Electric 360° Continuous Rotation
|
Electric 360° Continuous Rotation
|
Electric 360° Continuous Rotation
|
|||||
|
Safety Belt
|
|
Two
|
Two
|
Two
|
Two
|
Two
|
|||||
|
Levelling Device
|
|
Hydraulic Cylinder Level
|
Hydraulic Cylinder Level
|
Hydraulic Cylinder Level
|
Hydraulic Cylinder Level
|
Hydraulic Cylinder Level
|
|||||
|
Outrigger
|
|
Manual operation, each leg can be adjusted separately, interlock
|
Manual operation, each leg can be adjusted separately, interlock
|
Manual operation, each leg can be adjusted separately, interlock
|
Manual operation, each leg can be adjusted separately, interlock
|
Manual operation, each leg can be adjusted separately, interlock
|
|||||
|
Operating Mode
|
|
Electric Control and Wireless Remote Control
|
Electric Control and Wireless Remote Control
|
Electric Control and Wireless Remote Control
|
Electric Control and Wireless Remote Control
|
Electric Control and Wireless Remote Control
|
|||||
|
Boom Action
|
|
Turntable installation comfortable seat operation and basket wireless remote control operation
|
Turntable installation comfortable seat operation and basket wireless remote control operation
|
Turntable installation comfortable seat operation and basket wireless remote control operation
|
Turntable installation comfortable seat operation and basket wireless remote control operation
|
Turntable installation comfortable seat operation and basket wireless remote control operation
|
|||||
|
Start and Stop of Engine
|
|
Rotary Table and Basket Double Operation
|
Rotary Table and Basket Double Operation
|
Rotary Table and Basket Double Operation
|
Rotary Table and Basket Double Operation
|
Rotary Table and Basket Double Operation
|
|||||
|
Engine Throttle
|
|
Remote Electronic Throttle
|
Remote Electronic Throttle
|
Remote Electronic Throttle
|
Remote Electronic Throttle
|
Remote Electronic Throttle
|
|||||
|
Paint
|
|
ell-known brand paint; The color is smooth and the lines are beautiful
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|||||
|
Marking and Label
|
|
Clear, Eye-catching and Permanent
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|||||
