Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kinggle
-
Year:
-
latest
-
Voltage:
-
380V/3PH/50HZ
-
Dimension(L*W*H):
-
9.0*4.0*6.5(m)
-
Screw L/D Ratio:
-
30
-
Screw diameter (mm):
-
120 mm
-
No. of Screw Heating Zone:
-
6
-
Screw Heating Power(kW):
-
30.2 kW
-
Extruder Motor Power(kW):
-
75 kW
-
Mold Platen Size(Width)(mm):
-
1300 mm
-
Mold Platen Size(Height)(mm):
-
1400 mm
-
Air Pressure(MPa):
-
1 MPa
-
Air Comsumption(m³/min):
-
1.8 m³/min
-
Die Head Heating Power(kW):
-
38.5 kW
-
Accumulator Capacity(L):
-
15 L
-
Power (kW):
-
80
-
Weight (T):
-
25
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

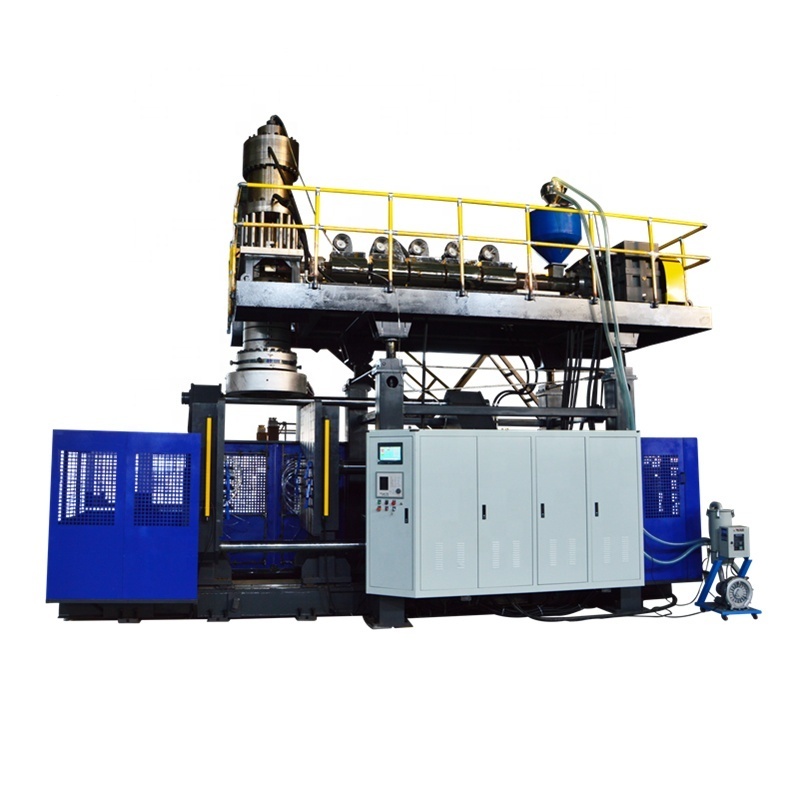

Plastic Bottle Blow Moulding Machine
-
Product name:
-
Extrusion Blow Molding Machine
-
Material:
-
HDPE LDPE LLDPE
Quick Details
-
Clamping Force (kN):
-
1200
-
Output (kg/h):
-
250 kg/h
-
Application:
-
table set, traffic barrier, toy, pallet, tray
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kinggle
-
Year:
-
latest
-
Voltage:
-
380V/3PH/50HZ
-
Dimension(L*W*H):
-
9.0*4.0*6.5(m)
-
Screw L/D Ratio:
-
30
-
Screw diameter (mm):
-
120 mm
-
No. of Screw Heating Zone:
-
6
-
Screw Heating Power(kW):
-
30.2 kW
-
Extruder Motor Power(kW):
-
75 kW
-
Mold Platen Size(Width)(mm):
-
1300 mm
-
Mold Platen Size(Height)(mm):
-
1400 mm
-
Air Pressure(MPa):
-
1 MPa
-
Air Comsumption(m³/min):
-
1.8 m³/min
-
Die Head Heating Power(kW):
-
38.5 kW
-
Accumulator Capacity(L):
-
15 L
-
Power (kW):
-
80
-
Weight (T):
-
25
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Plastic Bottle Blow Moulding Machine
-
Product name:
-
Extrusion Blow Molding Machine
-
Material:
-
HDPE LDPE LLDPE
Technology
| Specifications | Unit | Fixed open-closing type | |||
| Machiner model | PXB120A | PXB120B | PXB120C | PXB120D | |
| Material | PE,PP,ABS etc. | ||||
| Max container capacity | L | 500 | 500 | 500 | 500 |
| Machine dimension ( L×W×H ) | M | 9.0 ×4.0×6.5 | 9.0 ×4.0×6.5 | 9.0 ×4.0×6.5 | 9.0 ×4.0×6.5 |
| Machine Weight | T | 36 | 38 | 45 | 50 |
| Clamping unit | |||||
| Mold platen size ( W×H ) | MM | 1400 ×1750 | 1600 ×1750 | 1600 ×2000 | 1800 ×2000 |
| Max mold size ( W ×H ) | MM | 1200 ×2000 | 1400 ×2000 | 1400 ×2200 | 1600 ×2200 |
| Power | |||||
| Servo oil pump motor power | KW | 35 | 35 | 45 | 45 |
| Average energy consumption | KW | 85-100 | 85-100 | 100-130 | 100-130 |
| Blow pressure | Mpa | 2 | 2 | 2 | 2 |
| Extruder unit | |||||
| Screw diameter | MM | 120 | 120 | 120 | 120 |
| Screw L/D ratio | L/D | 24:1 | |||
| Melting capacit for HDPE | KG/HR | 300-380 | 300-380 | 450-550 | 450-550 |
| Extruder power | KW | ||||
| Die head | |||||
| Max die-pin diameter | MM | 650 | 750 | 850 | 850 |
| Accumulator capacity | L | 25 | 30 | 45 | 45 |
| Accumulator weight ( HDPE ) | KG | 18 | 22.5 | 33 | 33 |
