Quick Details
-
Certificates:
-
TUV,CE,CB,IEC
-
Rated voltage:
-
AC 220V~AC 750V
-
Rated current:
-
63A to 3150A
-
Gurantee period:
-
2 years
-
Operating:
-
Manually operated, Indoor or outdoor
-
Mounting:
-
Din rail mounting, Box mounting
-
HS Code:
-
8535309000
-
Pole:
-
3P~4P
-
Auxiliary:
-
NC,NO, NC+NO,2NO+2NC
Quick Details
-
Max. Voltage:
-
660V
-
Place of Origin:
-
Zhejiang, China
-
Type:
-
Isolators Disconnect Load Switches
-
Certificates:
-
TUV,CE,CB,IEC
-
Rated voltage:
-
AC 220V~AC 750V
-
Rated current:
-
63A to 3150A
-
Gurantee period:
-
2 years
-
Operating:
-
Manually operated, Indoor or outdoor
-
Mounting:
-
Din rail mounting, Box mounting
-
HS Code:
-
8535309000
-
Pole:
-
3P~4P
-
Auxiliary:
-
NC,NO, NC+NO,2NO+2NC
Product Description
Product Parameters
|
Conventional thermal current lth A
|
|
|
63A
|
|
100A
|
|
160A
|
|
|||||
|
Rated current A
|
|
|
40
|
63
|
80
|
80
|
125
|
160
|
|||||
|
Rated impulse withstand voltage Ui(A)
|
|
|
750
|
750
|
750
|
750
|
750
|
750
|
|||||
|
Dielectric strength(V)
|
|
|
5000
|
5000
|
5000
|
5000
|
5000
|
5000
|
|||||
|
Working Current le A |
380V
|
AC-21
|
40
|
63
|
80
|
80
|
125
|
160
|
|||||
|
|
|
AC-22
|
40
|
63
|
80
|
80
|
125
|
160
|
|||||
|
|
|
AC-23
|
40
|
50
|
80
|
80
|
125
|
160
|
|||||
|
|
660V
|
AC-21
|
40
|
50
|
80
|
80
|
125
|
160
|
|||||
|
|
|
AC-22
|
32
|
32
|
50
|
50
|
125
|
160
|
|||||
|
|
|
AC-23
|
25
|
25
|
40
|
40
|
80
|
80
|
|||||
|
|
|
380V
|
18.5
|
25
|
40
|
40
|
63
|
80
|
|||||
|
|
|
660V
|
22
|
22
|
33
|
33
|
75
|
75
|
|||||
|
Rated breaking capbility(A rins)AC23 380V
|
|
|
320
|
504
|
840
|
800
|
1000
|
1000
|
|||||
|
Rated making capability(A Rms)AC23 380V
|
|
|
400
|
630
|
800
|
1000
|
1250
|
1250
|
|||||
|
Rated short-current making capability lcm(kA peak value)
|
|
|
7.5
|
7.5
|
10
|
10
|
12
|
12
|
|||||

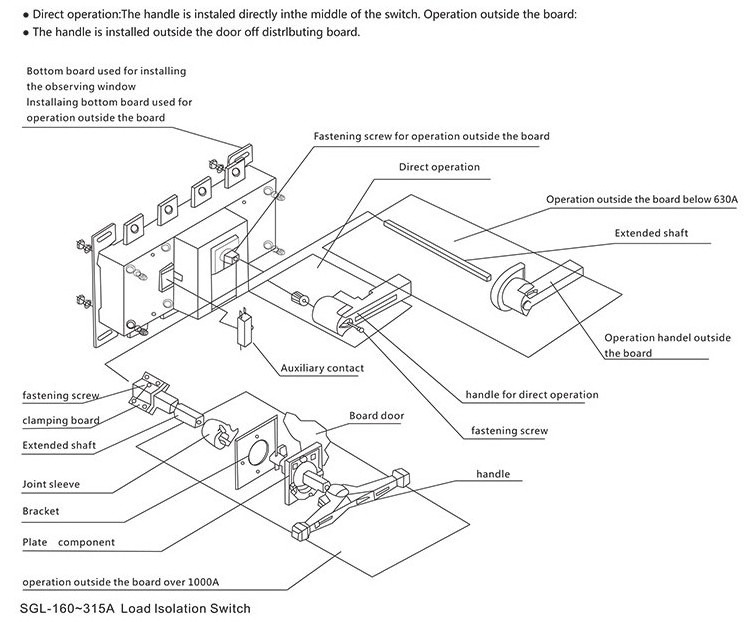

Product Details Show
