Quick Details
-
Model Number:
-
ZTS320
-
Measurement Method:
-
Absolute Encoding
-
Minimum Readout:
-
0.3mgon/1.5mgon/3mgon
-
Accuracy:
-
2"
-
Reflectorless Range:
-
350m
-
Single Prism:
-
>7500m
-
Range Accuracy:
-
3mm+2ppm
-
Measuring Time:
-
1.5s
-
Magnification:
-
30X
-
Field of View:
-
1°30'
-
Minimum Focusing Distance:
-
1.5m
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hi-target
-
Model Number:
-
ZTS320
-
Measurement Method:
-
Absolute Encoding
-
Minimum Readout:
-
0.3mgon/1.5mgon/3mgon
-
Accuracy:
-
2"
-
Reflectorless Range:
-
350m
-
Single Prism:
-
>7500m
-
Range Accuracy:
-
3mm+2ppm
-
Measuring Time:
-
1.5s
-
Magnification:
-
30X
-
Field of View:
-
1°30'
-
Minimum Focusing Distance:
-
1.5m
Product Description
| Technical Parameters | ||||
| Angle Measurement | Method | Absolute Code | ||
| Minimum Reading | 1″ | |||
| Angle Accuracy | 2″ | |||
| Telescope | Magnification | 30X | ||
| Field of View | 1°30′ | |||
| Shortest Focus Distance | 1.5m | |||
| Reticle | Illuminated | |||
| Compensator | System | Single-axis liquid-electric tilt sensor Compensator | ||
| Working Range | ±3′ | |||
| Setting Accuracy | 1″ | |||
| Distance measurement | Reflector (IR) | Range | Single Prism(Atmosphere general / good / best ) | 2000m/2500m/3000m |
| Reflector(60mmx60mm) | 800m | |||
| Accuracy (Fine/Coarse/Tracking) | 2mm±2ppm | |||
| Measurement Time | Repeat | 1s | ||
| Tracking | 0.6s | |||
| Reflector-less (RL) | Range | White Target board | 350m | |
| Single Prism | >7500m | |||
| Accuracy(short distance/tracking/prism) | 3mm±2ppm | |||
| Measurement Time(short distance/tracking/prism) | 2s | |||
| General | Communication | Internal Data Memory | 20000 Points | |
| Interface | Standard RS232 port (USB port / Bluetooth optional ) | |||
| Data Format | ASCII(DXF/GSI optional ) | |||
| Operation system | Real-time English operating system | |||

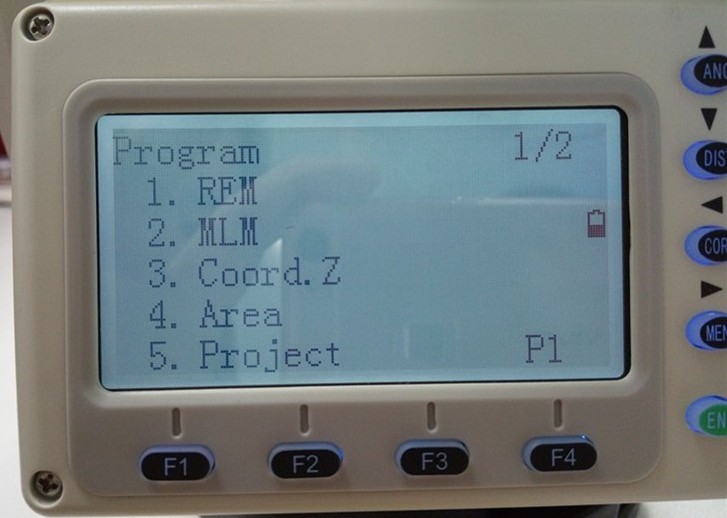

| Display | Graphics:192*96 pixels ,6 line*12 characters | |||
| Keyboard | Alpha-numerical keyboard | |||
| Laser plummet | Type | Laser Point, Brightness Adjustable in steps | ||
| Centering Accuracy | 1 mm at 1.5m instrument height | |||
| Power supply | Battery Type | Lithium-Ion | ||
| Voltage/Capacity | ZBA-400:7.4V 3000mAh | |||
| Operating time with ZBA-400 | 16 hours | |||
| 24 hous (Continuous Angle Measurement ) | ||||
| Weight (Incl. Battery & Tribrach) | 5.5kg | |||
| Environmental | Operating temperature | -20℃~50℃ | ||
| Storage temperature | -40℃~70℃ | |||
|
Dust & Water proof
(IEC60529) |
IP54 | |||
More Details about total station.
