Quick Details
-
Weight (KG):
-
400
-
Voltage:
-
220V/110V, 50Hz, 60Hz
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
1200*900*1850mm
-
Item Name:
-
Irregular Shaped Bags Liquid Packing Machine
-
Bag type:
-
irregular shape
-
Usage:
-
Packing liquid or paste
-
Keyword:
-
irregular shapes packing machine
-
Packing speed:
-
30-80 bags/min
-
Packing film material:
-
plastic laminated film
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Machine material:
-
Stanless Steel 304
-
Main Function:
-
packing liquid
-
After Warranty Service:
-
Video technical support
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, COATING, Sealing, Embossing, SLITTING
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
400
-
Voltage:
-
220V/110V, 50Hz, 60Hz
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
1200*900*1850mm
-
Item Name:
-
Irregular Shaped Bags Liquid Packing Machine
-
Bag type:
-
irregular shape
-
Usage:
-
Packing liquid or paste
-
Keyword:
-
irregular shapes packing machine
-
Packing speed:
-
30-80 bags/min
-
Packing film material:
-
plastic laminated film
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Machine material:
-
Stanless Steel 304
-
Main Function:
-
packing liquid
-
After Warranty Service:
-
Video technical support
Products Description

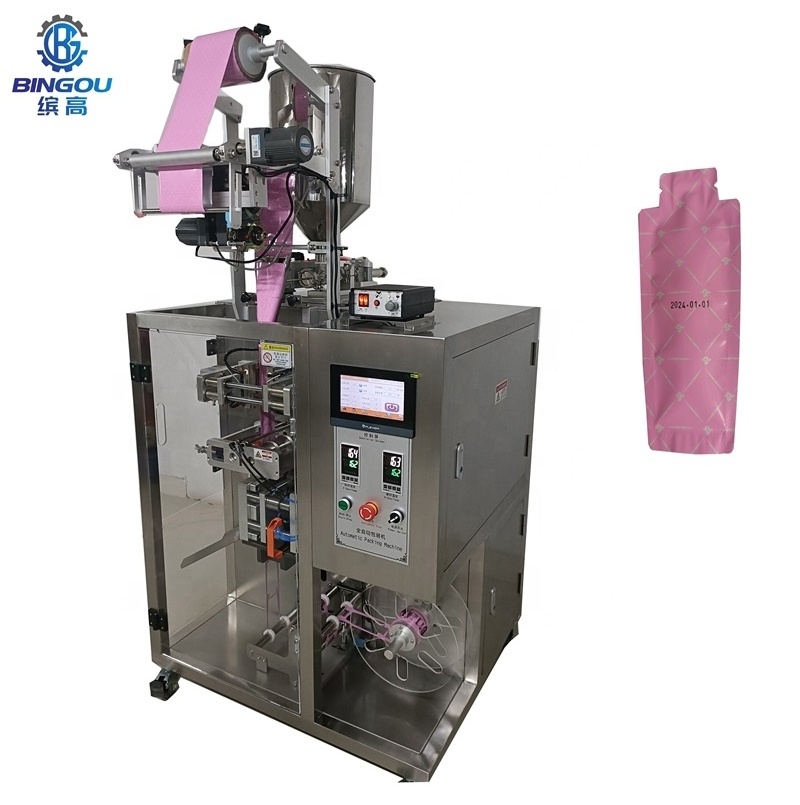

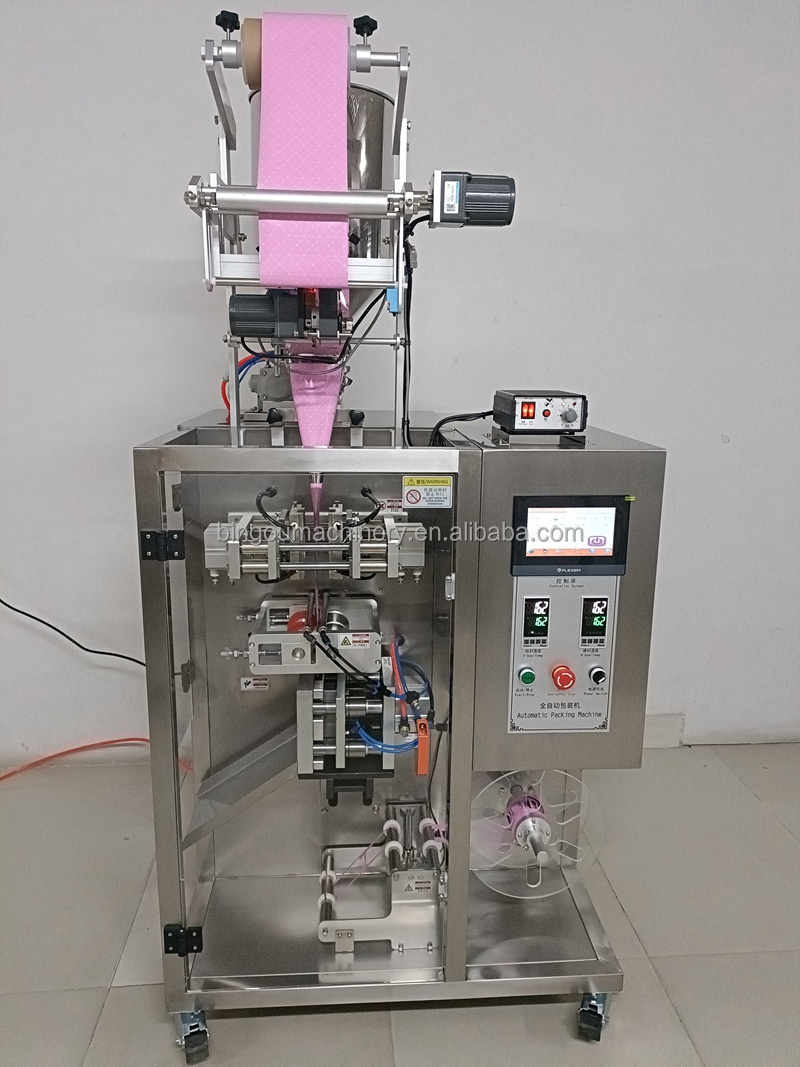

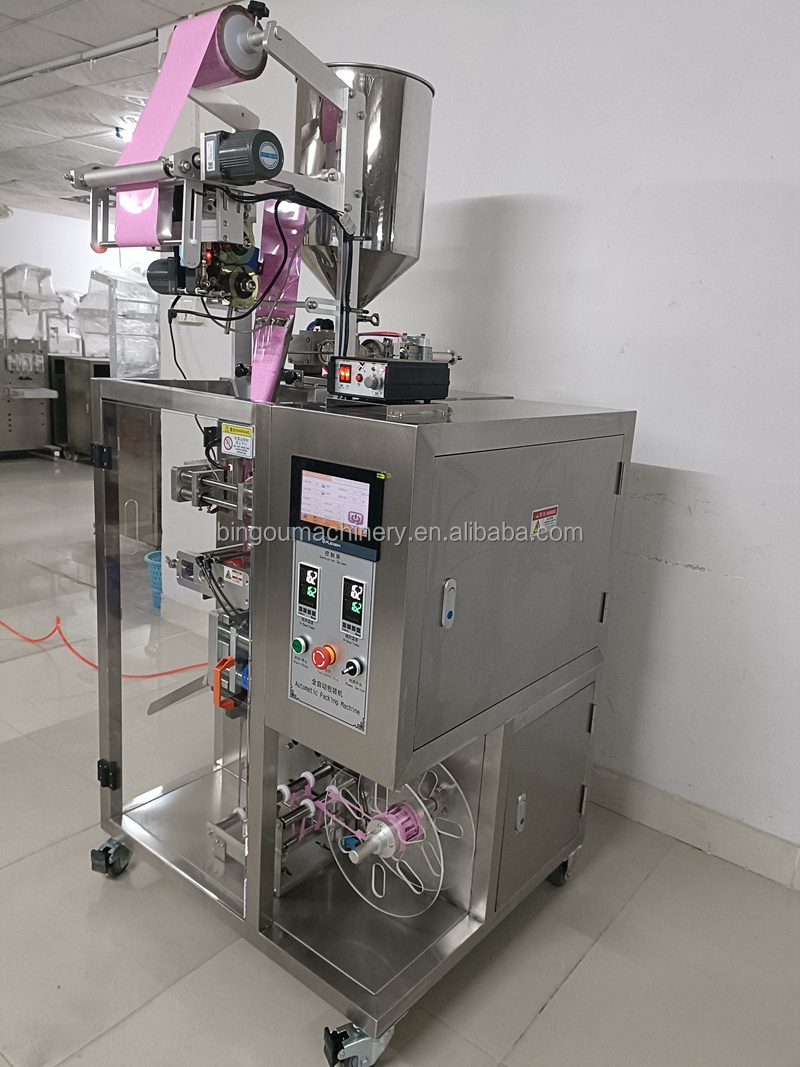

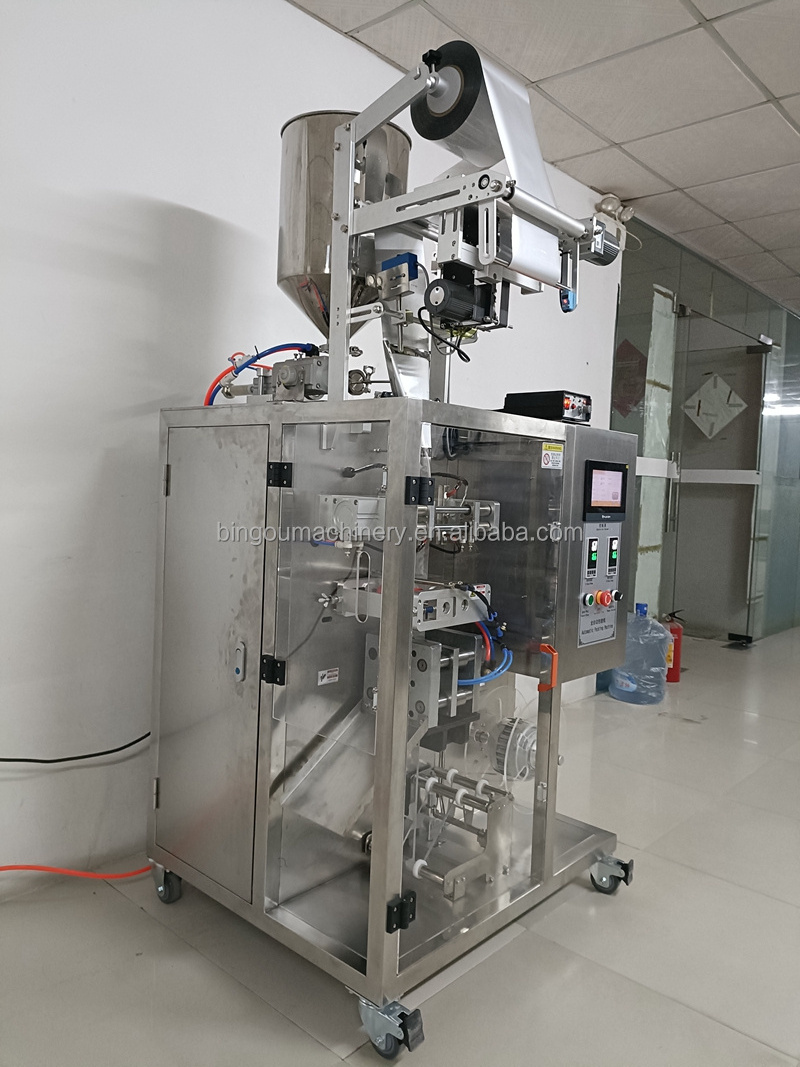

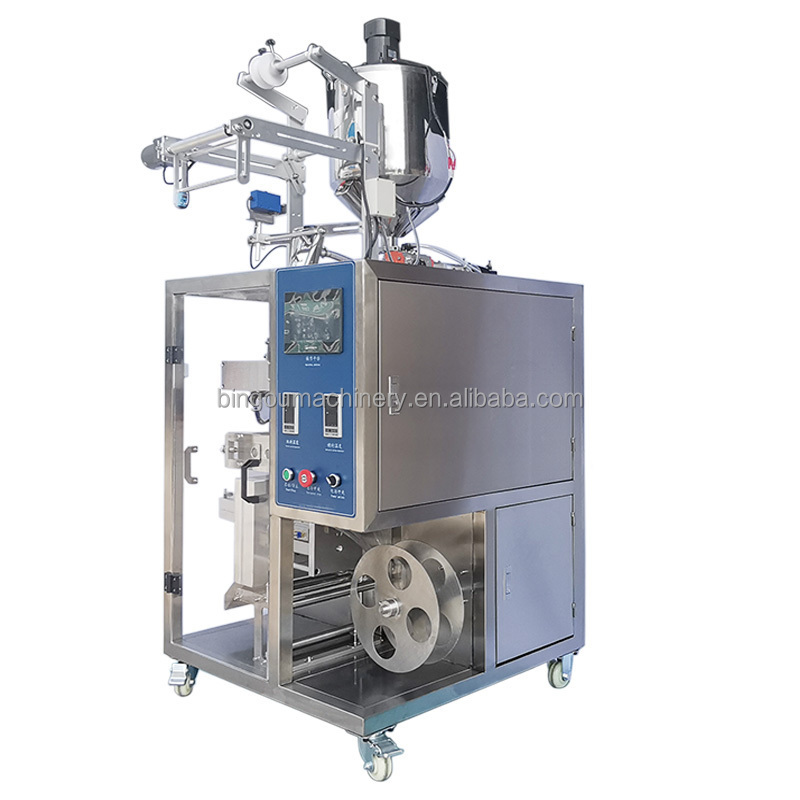

Automatic Liquid Packing Machine in Special Shape Bag Style
*
This machine is suitable for packing
all kinds of liquid or paste products such as water, juice, oil, cosmetic cream, jam, butter, tomato paste, ketchup, olive oil, honey,
sauce, shampoo, lotions, etc, into special shape bag style, such as round corner bag style, bottle shape bag style, client specially needed bag style, etc .
sauce, shampoo, lotions, etc, into special shape bag style, such as round corner bag style, bottle shape bag style, client specially needed bag style, etc .
Application
It is widely applied to different kinds of HERBAL TEA, healthy tea , powder tea, medical tea, etc.
Juice
Edible Oil
Honey
Chili Sauce
Tomato Paste
Shampoo
Sample Bags
Bottle shape, back sealing
Bottle shape, back sealing
bottle shape, side sealing
Round corner bag style
Product Paramenters
|
Item
|
Automatic Liquid or Paste Packing machine Special Bag Style
|
|
Model
|
BG-YX240Y
|
|
Sealing Method
|
heat sealing
|
|
Filling System
|
Piston pump or megnatic pump
|
|
Packing Speed
|
20-60 bags/min
|
|
Bag Size
|
Bag Length 40-170mm, bag Width 15-120mm
|
|
Filling range
|
Packing volume can be adjusted, depends on your packing variety and packing volume
|
|
Bag Type
|
Special bag style
|
|
Date printer
|
Optional to choose
|
|
Control system
|
Mitsubishi PLC+ screen
|
|
Air Consumpion
|
≥0.6Mpa, 0.4m³/min
|
|
Power
|
220V Single phase 50/60Hz
|
|
weight
|
200 kg
|
|
Overall Denmensions
|
L1000mm*W800mm*H1700 (mm) Package size
|
Features:
1) All the Electronic components adopt international famous brand excluding motor, the motor use regular domestic brand.
2) The raw material of the products adopts stainless steel.
2) Mitsubishi PLC control system
3) English panel
4) Noiseless stepping motor to improve steady working condition and decrease vibrator and noise.
5) Can get a perfect pictures when the packing material with color code.
6) This machine is easy to operate and maintain.
7) This machine can finish pulling, forming, fulfilling, measuring, sealing, cutting, printing automatically.
2) The raw material of the products adopts stainless steel.
2) Mitsubishi PLC control system
3) English panel
4) Noiseless stepping motor to improve steady working condition and decrease vibrator and noise.
5) Can get a perfect pictures when the packing material with color code.
6) This machine is easy to operate and maintain.
7) This machine can finish pulling, forming, fulfilling, measuring, sealing, cutting, printing automatically.
