Quick Details
-
name:
-

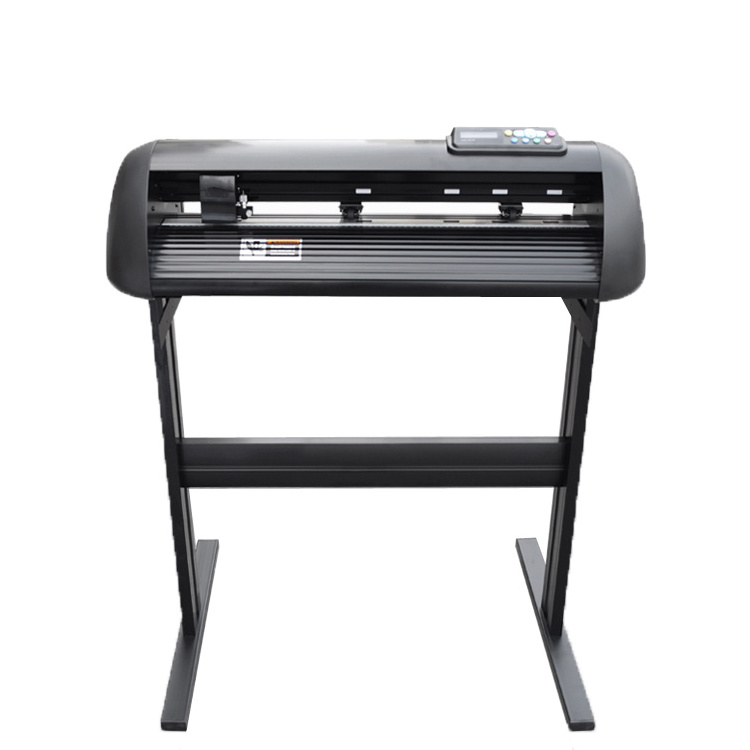

signmaster cutter plotter
-
Interface:
-
USB,COM Port
-
Software:
-
artcut
-
Blade:
-
roland blade
-
Speed:
-
Max speed: 800mm/s ,Curve speed 400mm/s
-
Knife Pressure:
-
10-1000g
-
Memory:
-
Standard: 2M for option
-
Resolution:
-
0.0125mm/step
-
Precision:
-
0.127mm
-
Language Format:
-
DM/PL,HPGL
Quick Details
-
Paper Feed Width:
-
630mm
-
Cutting Width:
-
630mm
-
Place of Origin:
-
Guangdong, China
-
name:
-
signmaster cutter plotter
-
Interface:
-
USB,COM Port
-
Software:
-
artcut
-
Blade:
-
roland blade
-
Speed:
-
Max speed: 800mm/s ,Curve speed 400mm/s
-
Knife Pressure:
-
10-1000g
-
Memory:
-
Standard: 2M for option
-
Resolution:
-
0.0125mm/step
-
Precision:
-
0.127mm
-
Language Format:
-
DM/PL,HPGL
Product Description
|
Technical Parameters:
|
|||
|
1. Automatic contour cutting, precise localization
|
|||
|
2. Roland steel cutter blade,be able to cut 2mm letter, reflective film, Max. cutting thickness 2.0mm
|
|||
|
Technical Parameters
|
|||
| Model | 330HWQ/12 inch | 630HWQ/24 inch | 1200HWQ/48 inch |
| Max Paper Feed Width | 415MM | 730MM | 1300MM |
| Max Cutting Width | 330MM | 635MM | 1205MM |
| Max Cutting Speed | 650mm/s | ||
| Main Board | High-performance & intelligent ARM 32 CPU | ||
| Driver | High speed Stepper motor,micro-step driver | ||
| Cutting Force | 0-1000g (Digital adjustment) | ||
| Mechanical Precision | 0.05mm | ||
| Repeatable Precision | <+-0.1mm | ||
| Plotter Instruction | DM-PL/GL automatic identification | ||
| Power Supply | AC110V /220V±10%,50Hz/60Hz | ||
| Power Consumption | <100W | <120W | |
| Red Dot Positioning | contour cutting function;Compatible with ARMS version Flexi, Artcut | ||
| Noise at Work | ≤75DB | ||
| External Dimension | 682*342*315MM | 982*342*315MM | 1562*342*395MM |
| Shipping Weight | 12KG | 18KG |
33KG
|
| Featurre: | |||
|
1. Contour Cutting Function(CCD Red Dot Laser optical eye positioning)
|
|||
| 2. Compatible:WindowsXP/Windows7(32and64bit)/Windows8/MAC OS | |||
| 3. USB 2.0 cable(support hot-swappable)/RS232 seril port/SD card reading | |||
| 4. Digital Blade Cutting force update to 1000g.(20-1000g adjustable) ensure it can cut reflective film better | |||
| 5. Digital Cutting Speed update to 650mm/s(30-650mm/s adjustable) | |||
| 6. Intelligent Mainboard ARM32 CPU,Cache update to 8M buffer memery ensure big file infinite loop output with a fast speed | |||
| 7. Cut minimum 2MM characters,thickness 2MM media | |||
| 8. Closing precision:0.05mm, after cutting 20000mm long figure. | |||
| 9. High quality Aluminum stands, more durable and Steady, high-grade. | |||
| 10.Emergency stops & stops to return at any time to monitor the cutting quality, easy to operate. | |||
| 11.Bulk copy up to 99, saving time and strength. | |||
| 12.Blue backlight LCD, more clear and bright. | |||
| 13.Inertial rotating blade holder enables more accurate and high quality cutting. | |||
| 14.Logo printing and sample purchasing available. | |||
| 15,Laser precision limit ,make sure the carriage start & stop safety and exactly | |||
| 16.A 0.3 mm thick Aluminum section bar grarantee the equipment work stable | |||
| 17.A Chrome plated shaft and the steel thorn roller guarantee a high precison during feeding process | |||
| 18.DM-PL/GL plotter instruction automatic identification | |||
| 19.Only less than 50 DB noise at working | |||
| 20.Fashion and elegant outlook design | |||
