Quick Details
-
Brand Name:
-
CALIN
-
Model Number:
-
DDSY168-I
-
Accuracy Class:
-
Class1s
-
Output Voltage:
-
220v/230v/240v
-
Operating Temperature:
-
-25℃ ~+70 ℃
-
Dimensions:
-
205*120*52 mm
-
Product name:
-
Indonesia 5 Terminals Keypad Prepaid Token Electricity Meter
-
Standard:
-
Indonesia Standard
-
Constant:
-
1000imp/kWh
-
Mounting:
-
BS5685 footprint
-
Weight:
-
850g
-
Display:
-
LCD Display
-
COST:
-
Low For Entry Level
-
Cover Type:
-
Extended Flush Straight
-
Features:
-
Low Cost Tamper Proof
-
Frequency:
-
50HZ/60HZ
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
5(80)A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CALIN
-
Model Number:
-
DDSY168-I
-
Accuracy Class:
-
Class1s
-
Output Voltage:
-
220v/230v/240v
-
Operating Temperature:
-
-25℃ ~+70 ℃
-
Dimensions:
-
205*120*52 mm
-
Product name:
-
Indonesia 5 Terminals Keypad Prepaid Token Electricity Meter
-
Standard:
-
Indonesia Standard
-
Constant:
-
1000imp/kWh
-
Mounting:
-
BS5685 footprint
-
Weight:
-
850g
-
Display:
-
LCD Display
-
COST:
-
Low For Entry Level
-
Cover Type:
-
Extended Flush Straight
-
Features:
-
Low Cost Tamper Proof
-
Frequency:
-
50HZ/60HZ
The DDSY168-I is exclusively designed for Indonesian market and therefore produced strictly in accordance with Indonesian
standards for energy meters. This meter type has been supplied in millions to Indonesian government and It is the lowest cost and
cheapest STS keypad prepayment meter of minimum defective rate. The meter has all standard function features of STS prepaid
meters, such as keypad, 20 digits' encryption, tamper detection, power limit setting and class 1 metrology accuracy.
This Token meter is a compact design in a BS5685 footprint standard housing and maintains IP54 rating, allowing it to be deployed
in very harsh environments. The meter serves as a secured utility dispenser with enhanced revenue protection features.

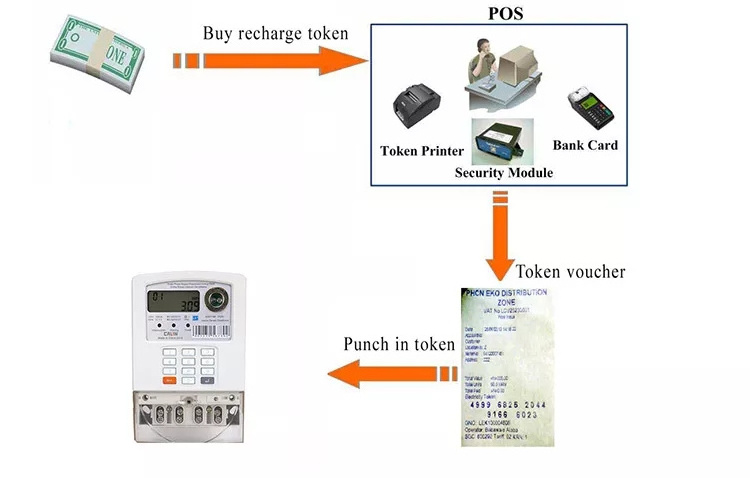

Token STS prepaid meter provides a compact solution for energy measurement and prepayment. Credit dispensing. The management data
is transferred from a point of sales (POS) to the meter via a 20-digit numeric token that is generated using the Standard Transfer
Specification (STS) encryption protocol. The meter keypad is used to punch in the token codes and information toggle codes.
This Token meter is an upgrade of highly successful DDSY range Single Phase keypad electricity meter. It is tailored to meet the
international demand for STS standard. Feedback received from customers for DDSY range over the last 10 years has been blended
into the design of the meter, making DDSY168 a reliable and robust product that exceeds customer requirements and expectations.
standards for energy meters. This meter type has been supplied in millions to Indonesian government and It is the lowest cost and
cheapest STS keypad prepayment meter of minimum defective rate. The meter has all standard function features of STS prepaid
meters, such as keypad, 20 digits' encryption, tamper detection, power limit setting and class 1 metrology accuracy.
This Token meter is a compact design in a BS5685 footprint standard housing and maintains IP54 rating, allowing it to be deployed
in very harsh environments. The meter serves as a secured utility dispenser with enhanced revenue protection features.
Token STS prepaid meter provides a compact solution for energy measurement and prepayment. Credit dispensing. The management data
is transferred from a point of sales (POS) to the meter via a 20-digit numeric token that is generated using the Standard Transfer
Specification (STS) encryption protocol. The meter keypad is used to punch in the token codes and information toggle codes.
This Token meter is an upgrade of highly successful DDSY range Single Phase keypad electricity meter. It is tailored to meet the
international demand for STS standard. Feedback received from customers for DDSY range over the last 10 years has been blended
into the design of the meter, making DDSY168 a reliable and robust product that exceeds customer requirements and expectations.
Main Features
* Significant reverse energy measurement SRE
* IEC62056-21 compliant optical communication port
* Operates in prepayment and credit mode
* Disconnects on overload and credit exhausts
* Adjustable power limit and low credit warning
* Tamper protection against opening cover, reverse connection, black-out and etc.
User Benefit
* Easy connection to User interface Unit (UIU) for split type applications
* PLC/RF/GPRS communication with a head-end AMR/AMI server
* Time of Use (TOU), Muti-tariff, holiday setting.
* Advanced load control and disconnection features
* Significant reverse energy measurement SRE
* IEC62056-21 compliant optical communication port
* Operates in prepayment and credit mode
* Disconnects on overload and credit exhausts
* Adjustable power limit and low credit warning
* Tamper protection against opening cover, reverse connection, black-out and etc.
User Benefit
* Easy connection to User interface Unit (UIU) for split type applications
* PLC/RF/GPRS communication with a head-end AMR/AMI server
* Time of Use (TOU), Muti-tariff, holiday setting.
* Advanced load control and disconnection features
|
Voltage
|
|
|
Nominal Voltage Un
|
230V
|
|
Limited Voltage
|
70%~120%Un
|
|
Frequency
|
|
|
Nominal frequency fn
|
50~60Hz
|
|
tolerance
|
5%
|
|
Current
|
|
|
Basic Current(Ib)
|
5A
|
|
Maximum current(Imax)
|
80A
|
|
Starting Current(Ist)
|
20mA
|
|
Active energy constant
|
1600imp/kWh
|
|
Measurement Accuracy
|
|
|
Active energy to IEC62053-21
|
Class1.0
|
|
Burden
|
|
|
Voltage circuit
|
<2W <8VA
|
|
Current circuit
|
<1VA
|
|
Temperature range
|
|
|
Operation meter
|
-25℃ to +75℃
|
|
Storage
|
-40℃ to +85 ℃
|
|
Insulation Level
|
4KV rms 1 min
|
|
Voltage impulse withstand
|
8KV 1.2/50 μs
|
|
Insulation System Classification
|
Protective Class Ⅱ
|
|
Electrostatic discharge
|
|
|
Contact discharge
|
8 kV
|
|
Air discharge
|
16 kV
|
|
Electromagnetic RF fields
|
|
|
27 MHz to 500 MHz typical
|
10V/m
|
|
100 kHz to 1GHz typical 30V/m
|
30V/m
|
|
Fast transient burst test
|
4kV
|
|
Meter shell Protection Rate
|
IP54
|
|
Insulation System Classification
|
Protective Class Ⅱ
|
|
Maximum cable size
|
8 mm
|
