Quick Details
-
Brand Name:
-
FESU
-
Model Number:
-
FS047
-
Max. Current:
-
16a
-
Mechanical Life::
-
1E4,5E4
-
Body Colour::
-
meet customers' require
-
Operating Temperature::
-
T125
-

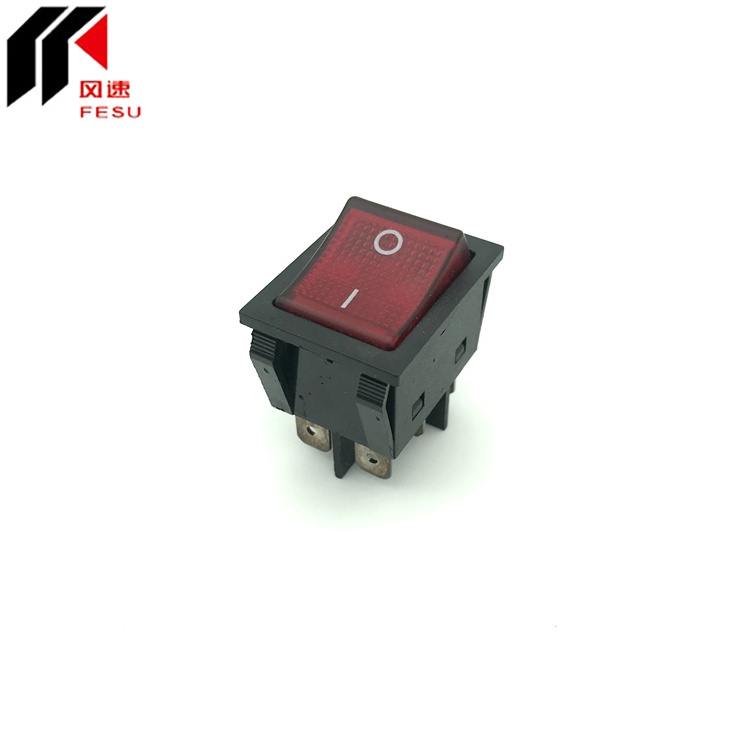

Type:
-
rocker switch
-
Feature:
-
optional red light or green
-
Certificate:
-
TUV CE
-
Rated current:
-
16a for 250v
-
Product name:
-
16a r250v rocker switch t125 r11
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FESU
-
Model Number:
-
FS047
-
Max. Current:
-
16a
-
Mechanical Life::
-
1E4,5E4
-
Body Colour::
-
meet customers' require
-
Operating Temperature::
-
T125
-
Type:
-
rocker switch
-
Feature:
-
optional red light or green
-
Certificate:
-
TUV CE
-
Rated current:
-
16a for 250v
-
Product name:
-
16a r250v rocker switch t125 r11
-
Certification:
-
CE
Product Description
Features Specifications:
1. Rating: 16A/125Vac 10A/250Vac
FAQ
| switch component materials: | 1. acutator :nylon |
| 2. housing :nylon | |
| 3. spring :iron | |
| 4. other component :copper | |
| switch electrical features: | 1.Optional rated current: 8A OR 12A |
| 2. optional rated voltage:250V OR 125V | |
| 3.frequency:50/60HZ | |
| 4.electrical life:5E4 | |
| 5. Certificated rating: 8A,250V; 12A,250V | |
| switch mechnical features: | 1. mechanical contact system: DPNO |
| 2. Optional with lock-on or lock off with lock on | |
| 3.Optional with dust-proof, with distub device | |
| 4.Optiona screw terminals M4; Plug-in terminals:6.3*0.8mm | |
| 5. mechanical life:1E4 | |
| 6. contact gap :upon users demand | |
| 7. approval :tuv ce cqc | |
| 8. trigger operating force:25N(MAX) release lock button | |
| 9. lock on button force:20n | |
| switch installation: | screw terminals accept stranded wire encapsulated with terminal pins |
