Quick Details
-
Weight (KG):
-
1300
-
Voltage:
-
220V50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Burgen
-
Dimension(L*W*H):
-
(L)1100mm*(W)75mm*(H)1540mm
-
Name:
-

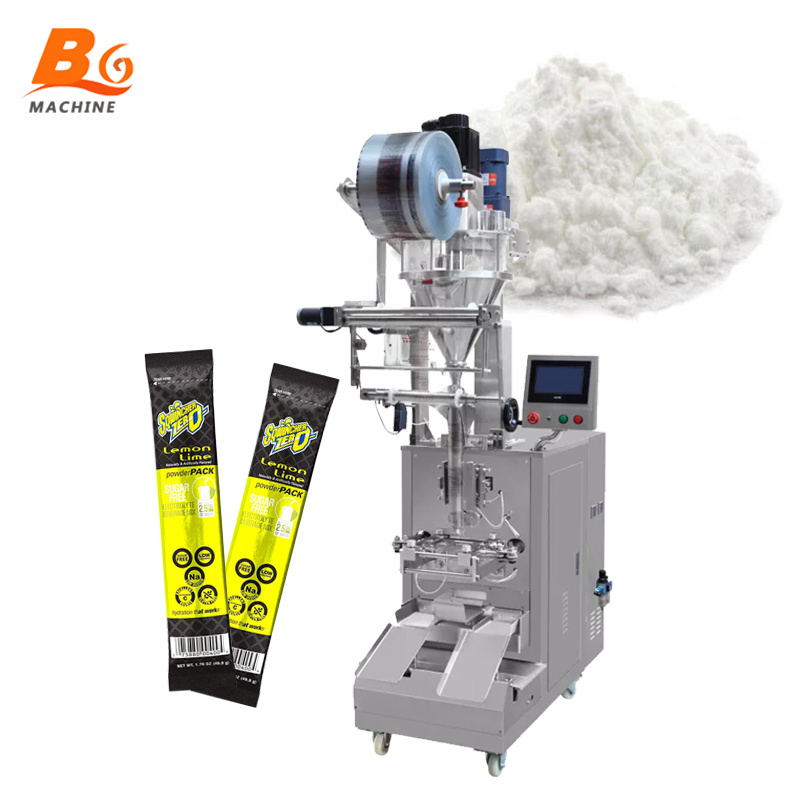

Power Vertical Automatic Packaging Machine
-
Product name:
-
Powder Packing Machine
-
Machine type:
-
Vertical Automatic Packing Machine
-
After-sales Service Provided:
-
Online Support
-
Bag type:
-
3/4 Sides Seal/Back Seal
-
Main Function:
-
Weighing Filling Sealing
-
Keyword:
-
Flour Packing Machine
-
Usage:
-
Powder
-
Packing speed:
-
60-80bags/min
-
Packing material:
-
CPP OPP
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing
-
Packaging Type:
-
Foil, Bags, Film, Pouch, case, Sachet/Pillow bag/Back bag
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood, OPP/CPP/PE
-
Weight (KG):
-
1300
-
Voltage:
-
220V50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Burgen
-
Dimension(L*W*H):
-
(L)1100mm*(W)75mm*(H)1540mm
-
Name:
-
Power Vertical Automatic Packaging Machine
-
Product name:
-
Powder Packing Machine
-
Machine type:
-
Vertical Automatic Packing Machine
-
After-sales Service Provided:
-
Online Support
-
Bag type:
-
3/4 Sides Seal/Back Seal
-
Main Function:
-
Weighing Filling Sealing
-
Keyword:
-
Flour Packing Machine
-
Usage:
-
Powder
-
Packing speed:
-
60-80bags/min
-
Packing material:
-
CPP OPP
ONE-STOP SOLUTION
POWDER
PACKING MACHINE UNIT
>>
We Are a Manufacturer
One-stop solution for packing machines and packing films Save
▷Packaging Machine Parameters
|
Model
|
BG-320FD
|
BG-420FD
|
BG-520FD
|
BG-720FD
|
|||
|
Film Width
|
Max.320MM
|
Max.420MM
|
Max.520MM
|
Max.720MM
|
|||
|
Bag Length
|
80-250MM
|
80-300MM
|
80-350MM
|
180-500MM
|
|||
|
Bag Width
|
50-150MM
|
60-200MM
|
100-250MM
|
100-350MM
|
|||
|
Roll Diameter
|
Max.320MM
|
Max.320MM
|
Max.320MM
|
Max.320MM
|
|||
|
Film Thickness
|
0.04-0.12MM
|
|
|
|
|||
|
Packing Speed
|
5-60Bag/Min
|
5-60Bag/Min
|
5-60Bag/Min
|
5-55Bag/Min
|
|||
|
Power
|
220V50/60HZ
2KW
|
220V 50/60HZ
2KW
|
220V 50/60HZ
3KW
|
220V 50/60HZ
3KW
|
|||
|
Machine Size(mm)
|
(L)1005* (W)850*(H)1241 MM
|
(L)1217* (W)1015*(H)1343 MM
|
(L)1488* (W)1080*(H)1490 MM
|
(L)1780* (W)1350*(H)2050 MM
|
|||
|
Machine Weight
|
About 620KG
|
About 650KG
|
About 680KG
|
About 750KG
|
|||
|
Option Device
|
Two synchronous belt device, air filling device, angle fold device, automatic rectifying device, hole-punching device, link bag device.
|
|
|
|
|||
APPLICATION
◆
Pouch Features Or Options
◆
Valves or Vents
Reclosable or Resealable Zippers
Tear Notches
Euro or Round Punch Holes
Paste wet wipes
Rounded Corners
MACHINE DETAILS
01.
Auger Feeder
02.
Injection Pump
★
Servo auger filler metering struture enable accurate measuring.
03.
Bag Former
04.
Touch Screen
1. With the function auto filling,measuring,bag forming,sealing and cutting. Bag-making system adopts step motor with
high precision(error is less than 1mm).
2.PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
3.To ensure the same length of each bag, high sensitive electro-optical sensor system is provide to the realize automatic a lignment on the packing film.
2.PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
3.To ensure the same length of each bag, high sensitive electro-optical sensor system is provide to the realize automatic a lignment on the packing film.
COMPANY PROFILE
→ Our Team
Certifications
PACKING&DELIVERY
If have
any special requirements
can be discussed,we will pack it as requested.
Delivery Time: Machine will be shipped in 15 working days after payment,before shipment,our technician will test the machine well,so our client can use directly when got the machine.
Further information (video,pictures, technical parameter and other models) needed,pls feel free to let me know.
Delivery Time: Machine will be shipped in 15 working days after payment,before shipment,our technician will test the machine well,so our client can use directly when got the machine.
Further information (video,pictures, technical parameter and other models) needed,pls feel free to let me know.
