Quick Details
-
Heating Power (kW):
-
18 kW
-
Production Speed(times/h):
-
10
-
Power Supply:
-
ac
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BaoYuantong
-
Voltage:
-
AC 380V 50HZ 3P
-
Dimension(L*W*H):
-
2870*1550*165mm
-
Weight (T):
-
0.95 T
-
Product name:
-
Acrylic Vacuum Molding Machine
-
Applicate material:
-
PMMA,PVC,ABS,PET,....
-
Working area:
-
2400*1200mm
-
Forming area:
-
2240*1040
-
Max suction forming depth:
-
300mm
-
Working voltage:
-
AC380V/50HZ/3P
-
Certification:
-
CE
-
Vacuum pump output:
-
63m3/h
-
Net weight(kgs):
-
950
-
Overall size (mm)(L*W*H):
-
2870*1550*1650
Quick Details
-
Max.Forming Height(mm):
-
300 mm
-
Forming Width (mm):
-
1040 mm
-
Forming Length (mm):
-
2240 mm
-
Heating Power (kW):
-
18 kW
-
Production Speed(times/h):
-
10
-
Power Supply:
-
ac
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BaoYuantong
-
Voltage:
-
AC 380V 50HZ 3P
-
Dimension(L*W*H):
-
2870*1550*165mm
-
Weight (T):
-
0.95 T
-
Product name:
-
Acrylic Vacuum Molding Machine
-
Applicate material:
-
PMMA,PVC,ABS,PET,....
-
Working area:
-
2400*1200mm
-
Forming area:
-
2240*1040
-
Max suction forming depth:
-
300mm
-
Working voltage:
-
AC380V/50HZ/3P
-
Certification:
-
CE
-
Vacuum pump output:
-
63m3/h
-
Net weight(kgs):
-
950
-
Overall size (mm)(L*W*H):
-
2870*1550*1650
Product Description
Application Industry and material ：
1)Plastic moulding&mask making
2)Advertising signage making
3)University or research institutions teaching experiments
4)Chocolate and cake package box making
5)Industrial & automobile decoration
6)Other thermoplastic material forming industrial
7) Application material: PMMA(Acrylic ), PVC,ABS,PE,PET ,Poly styrene ,poly propylene ect.
Feature：
1.Intelligent temperature control, heating box use the shaped reflector and thickened insulation layer, heating fast and with good insulation and safety performance.
2.Customized heaters from factory which can run 24hours continuously, service life up to 8000-10000 hours, the working temperature difference is±5 degrees, which can ensure even softening temperature of plate.
3.Working platform is made of steel which is high temperature resistant and long life service.Adopt single mould forming, easy operation, lower raw material and labor cost.
4. The aluminum alloy press frame controlled by two cylinders is more convenient to use and improves the sealing and forming effect.
5.Add movable platform controlled by two cylinder to ensure smooth lifting & increase the molding height.
6.More powerful vacuum pump , finish vacuum forming sample more beautiful
7.Air storage tank is installed to extend the service life of vacuum pump, at the moment of moulding, the suction force is
stronger and the forming effect is better.
8.Add blowing function, not only easy to demoulding, and can complete the ball blow molding.
1)Plastic moulding&mask making
2)Advertising signage making
3)University or research institutions teaching experiments
4)Chocolate and cake package box making
5)Industrial & automobile decoration
6)Other thermoplastic material forming industrial
7) Application material: PMMA(Acrylic ), PVC,ABS,PE,PET ,Poly styrene ,poly propylene ect.
Feature：
1.Intelligent temperature control, heating box use the shaped reflector and thickened insulation layer, heating fast and with good insulation and safety performance.
2.Customized heaters from factory which can run 24hours continuously, service life up to 8000-10000 hours, the working temperature difference is±5 degrees, which can ensure even softening temperature of plate.
3.Working platform is made of steel which is high temperature resistant and long life service.Adopt single mould forming, easy operation, lower raw material and labor cost.
4. The aluminum alloy press frame controlled by two cylinders is more convenient to use and improves the sealing and forming effect.
5.Add movable platform controlled by two cylinder to ensure smooth lifting & increase the molding height.
6.More powerful vacuum pump , finish vacuum forming sample more beautiful
7.Air storage tank is installed to extend the service life of vacuum pump, at the moment of moulding, the suction force is
stronger and the forming effect is better.
8.Add blowing function, not only easy to demoulding, and can complete the ball blow molding.
|

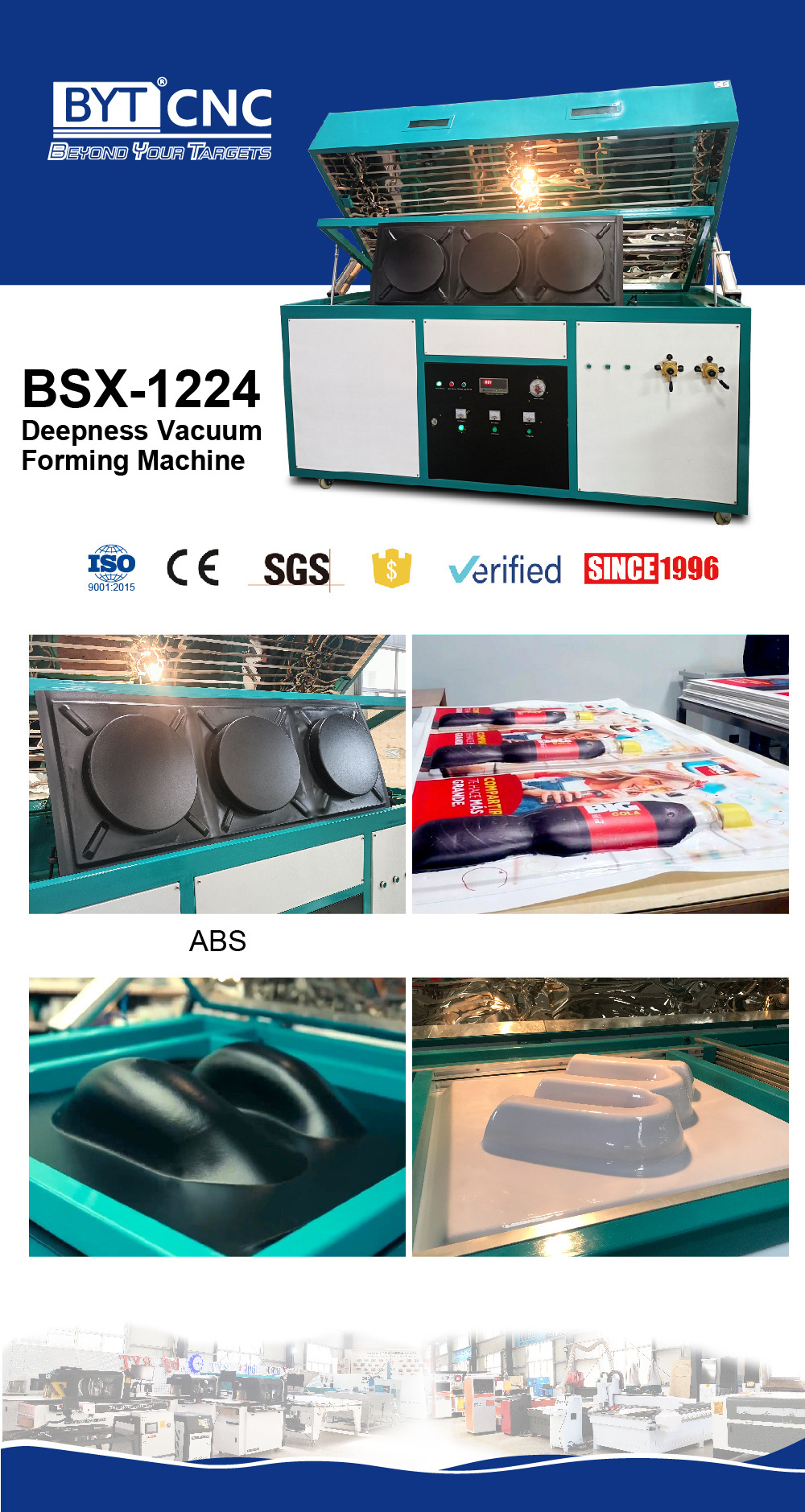

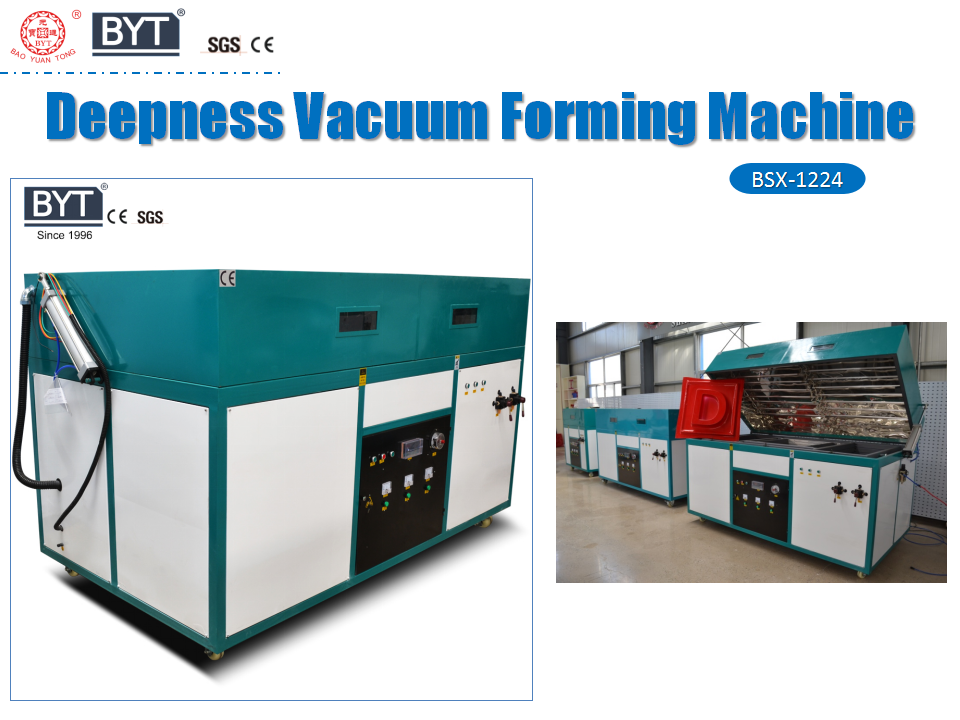

Model
|
BSX-1224
|
|
Working area(mm)(L*W)
|
1200*2400
|
|
Forming area(mm)(L*W)
|
1040*2240
|
|
Function
|
Suction & Blow
|
|
Max. suction forming depth(mm)
|
300
|
|
Oven open style
|
Automatic open
|
|
Heating area
|
1
|
|
Suction holes
|
1
|
|
Vacuum pump output
|
63m³/h
|
|
Total power(kw)
|
20.5
|
|
Working Voltage
|
AC380V/50HZ/3P
|
|
Net Weight (kgs)
|
950
|
|
Overall size (mm) (L*W*H)
|
2870*1550*1650
|
Customer feedback

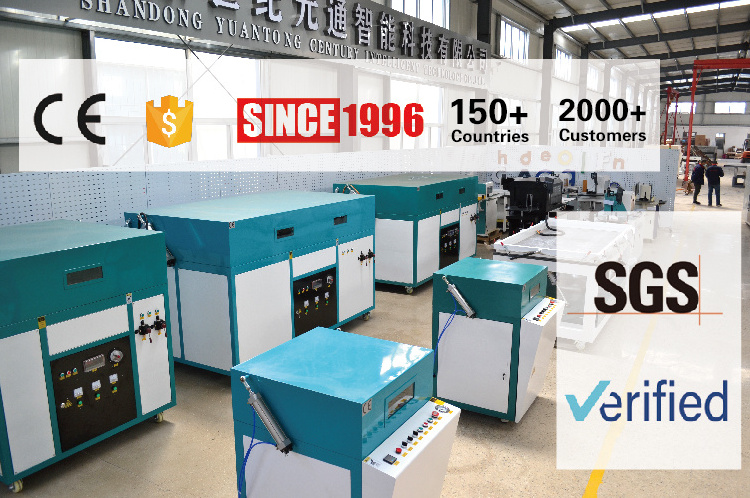

Our Company
Certifications
FAQ
Q1 Which material can use ?How to choose vacuum forming machine ?
A1 Vacuum forming machine can use PMMA(Acrylic ), PVC,ABS,PE,PET thermoplastic material .
About how to choose vacuum former ,usually we need to know below questions
1) The material type and material thickness ,Less than 6mm
2) Finish forming products size
3) Sample pictures
Q2 For this machine what is the working voltage,if you accept the customized voltage ?
A2 The BSX-600 and BX-1400 working voltage 220V 50HZ 1P ,Other type normally working voltage is 380V/50HZ/3P, we can accept
customized voltage,for example 220V/60HZ/3P ,415V/60HZ/3P act.
Q3 When this machine working ,if it need any accessory equipment ?
A3 If choose the heating box is moving by air cylinder ,when the machine working it need compressor air . For this machine working
if you use MDF mould and want to make by yourself ,so you need prepare wood CNC router ; When finish forming need trim off
unwanted edge , need trimmer . for this machines we all can provide
Q4 For the working area or forming height if you can accept customized ?
A4 Yes ,we can accept the customized working area and forming height , now we finish the BSX-2030 max forming height 450mm .
Q5 After I buy this machine how you arrange training ?
1)When delivery the machine with operation manual and video ,meantime all the files be saved in U disc ,send to you together .
2) After the machine delivery ,our sales-service engineer will contact with you and inform you ,when receive the machine contact
with him ,he will service for you.
3)When you use this machine , any questions you can contact with our after-sales service ,they provide 24Hours/7Days online
service
A1 Vacuum forming machine can use PMMA(Acrylic ), PVC,ABS,PE,PET thermoplastic material .
About how to choose vacuum former ,usually we need to know below questions
1) The material type and material thickness ,Less than 6mm
2) Finish forming products size
3) Sample pictures
Q2 For this machine what is the working voltage,if you accept the customized voltage ?
A2 The BSX-600 and BX-1400 working voltage 220V 50HZ 1P ,Other type normally working voltage is 380V/50HZ/3P, we can accept
customized voltage,for example 220V/60HZ/3P ,415V/60HZ/3P act.
Q3 When this machine working ,if it need any accessory equipment ?
A3 If choose the heating box is moving by air cylinder ,when the machine working it need compressor air . For this machine working
if you use MDF mould and want to make by yourself ,so you need prepare wood CNC router ; When finish forming need trim off
unwanted edge , need trimmer . for this machines we all can provide
Q4 For the working area or forming height if you can accept customized ?
A4 Yes ,we can accept the customized working area and forming height , now we finish the BSX-2030 max forming height 450mm .
Q5 After I buy this machine how you arrange training ?
1)When delivery the machine with operation manual and video ,meantime all the files be saved in U disc ,send to you together .
2) After the machine delivery ,our sales-service engineer will contact with you and inform you ,when receive the machine contact
with him ,he will service for you.
3)When you use this machine , any questions you can contact with our after-sales service ,they provide 24Hours/7Days online
service
