Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Max.laminating width:
-
540*700mm
-
Min.laminating width:
-
200*290mm
-
Laminating speed:
-
0-20m/min
-
Laminating temperature:
-
60-130℃
-
Thickness paper:
-
120-350g/m2
-
Total power:
-
6kW
Quick Details
-
Type:
-
Heated Roll Laminator
-
Brand Name:
-
Taoxing
-
Model Number:
-
TXZDFM540
-
Place of Origin:
-
Zhejiang, China
-
Max.laminating width:
-
540*700mm
-
Min.laminating width:
-
200*290mm
-
Laminating speed:
-
0-20m/min
-
Laminating temperature:
-
60-130℃
-
Thickness paper:
-
120-350g/m2
-
Total power:
-
6kW

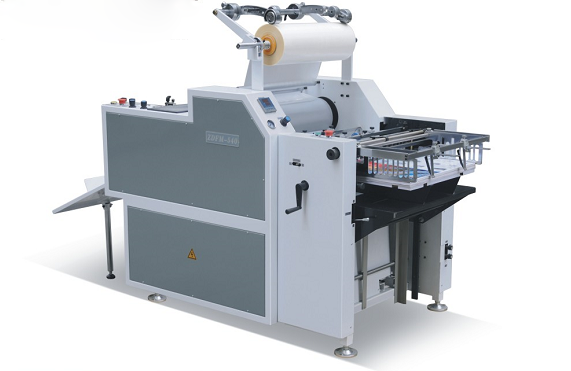

Machine Descriptions
ZDFM-540 automatic laminating machine is a pre-coat compounding equipment meticulously researched and developed by our company according to the market demand. This machine possesses the features of compact structure, small area occupancy and convenient operation.
|
Specification of TX-ZDFM540 Full Automatic Laminating Machine
|
|
|
|
Model
|
ZDFM-540
|
|
|
Max.laminating width
|
540*700mm
|
|
|
Min.laminating width
|
200*290mm
|
|
|
Laminating speed
|
0-20m/min
|
|
|
Laminating temperature
|
60-130℃
|
|
|
Thickness paper
|
120-350g/m2
|
|
|
Total power
|
6kW
|
|
|
Total weight
|
600kg
|
|
|
Dimension
|
2300*960*1400mm
|
|
|
Packaging size
|
1700*1100*1350mm
|
|
Features
1.Adopt the pneumatic pressure compound.
2.Adopt the automatic'paper feeding mechanism and realize once finishing of feeding, laminating and slitting.
3. The paper feeding mechanism is the pre-paper feeding structure, servo motor drive.
4. The edge lapping adopts the back-paper press pre- paper mode, while operating, only input the sheets length, the edge lapping length can achieve the automatic laminating, the edge lapping precision can reach up ±2mm.
5. The cylinder uses the guide heating oil to heat, surface temperature measurement, accurate and uniform temperature. 6. Equip with the thin paper anti- curl device, so as to ensure the thin paper compounding no crimp.
7. Equip with the front and back way holing device, which can prevent the paper breaks after cutting or before cutting while holing on the film so as to realize the more stable operation.

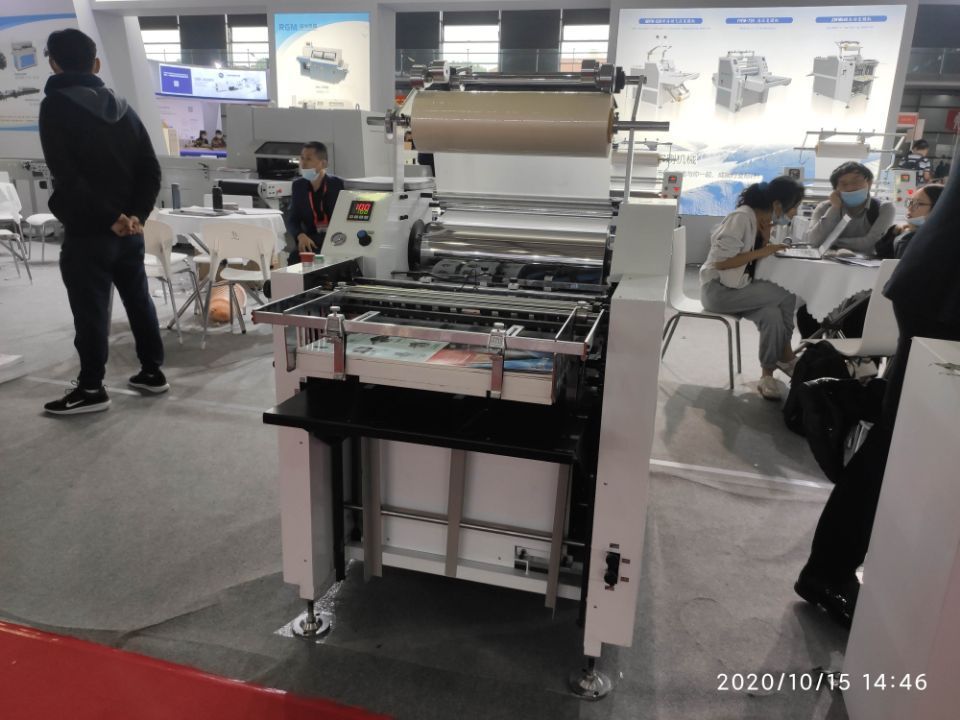

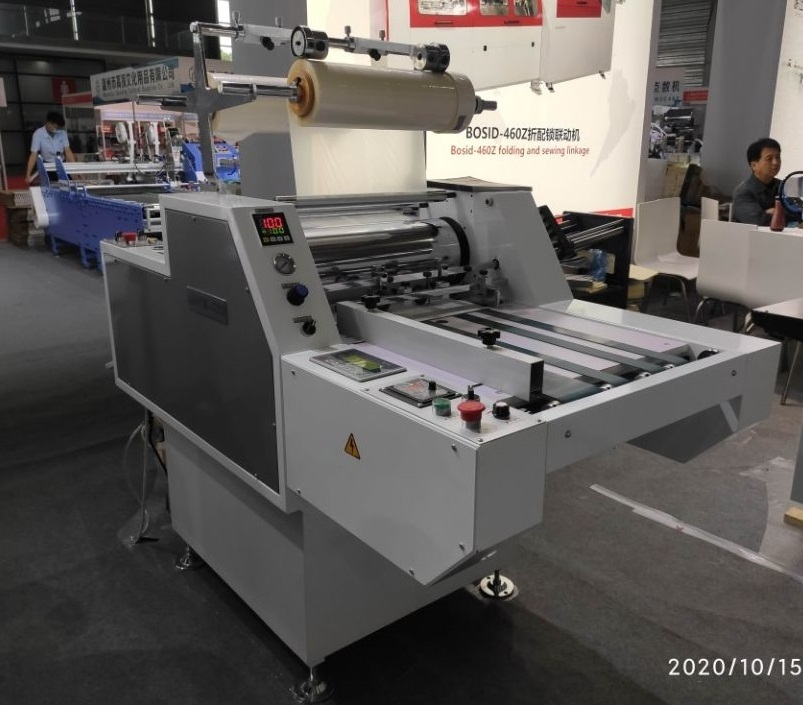

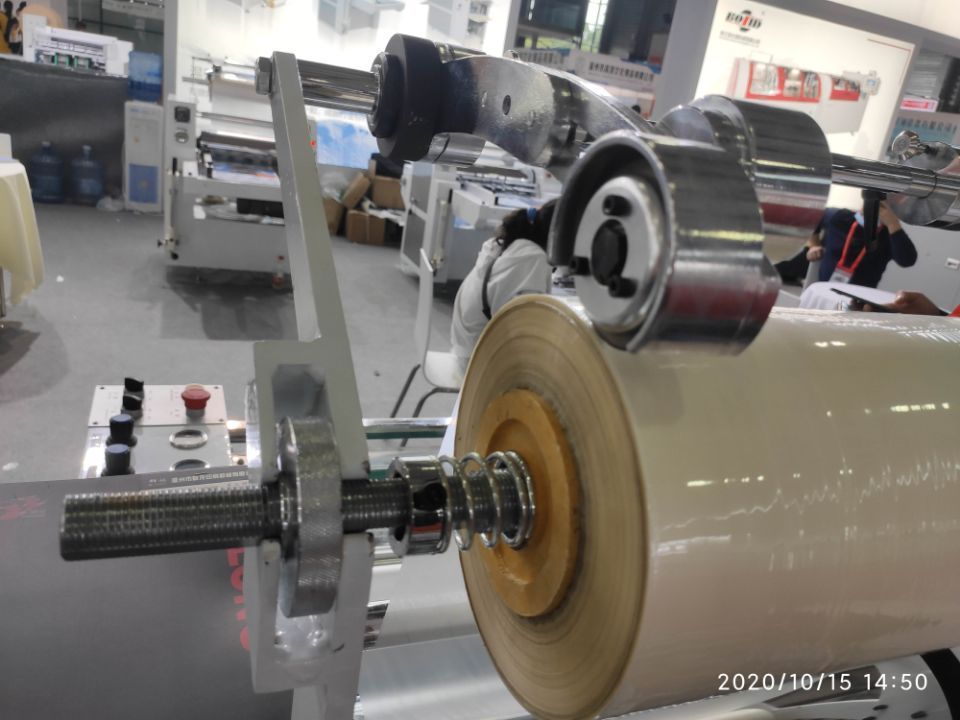

Detailed Images
Detail Images
Packing&Delivery
★ Packing & Delivery
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：3-35 business days after received the payment.
4. Delivery means: By sea from Shanghai or Ningbo Port
