Quick Details
-
Fluid:
-
Air
-
Operating Temperature:
-
0~60°C
-
Thread:
-
BSP
-
Port:
-
M5 M6 1/8" 1/4" 3/8"
-
Working pressure:
-
0-10bar
-
Ensured Pressure Resistance:
-
15bar
-
Sealing materials:
-
NBR
-
For:
-
compressed air cylinder
-
Body material:
-
Aluminum ,Steel
-
Can be customized:
-
yes
Quick Details
-
Weight (KG):
-
0.5
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
compressed air cylinder
-
Fluid:
-
Air
-
Operating Temperature:
-
0~60°C
-
Thread:
-
BSP
-
Port:
-
M5 M6 1/8" 1/4" 3/8"
-
Working pressure:
-
0-10bar
-
Ensured Pressure Resistance:
-
15bar
-
Sealing materials:
-
NBR
-
For:
-
compressed air cylinder
-
Body material:
-
Aluminum ,Steel
-
Can be customized:
-
yes

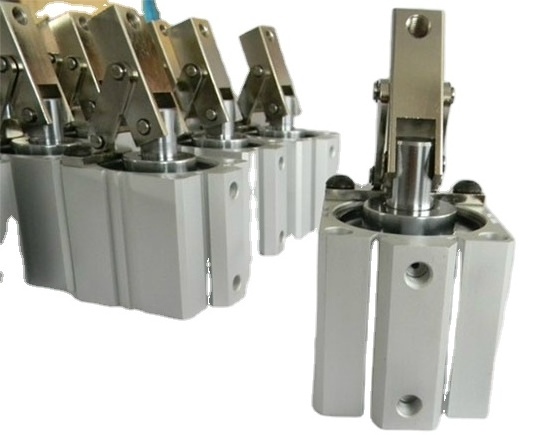

| Bore(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
| Acting Pattern | Double action | |||||||
| Rotary angle | 90°±10° | |||||||
| Rotary direction | R : Clockwise, L:Conterlockwise | |||||||
| Rotary stroke(mm) | 7.5 | 9.5 | 15 | 19 | ||||
| Clamp stroke(mm) | 10, 20 | 20,50 | ||||||
| Allowable moment Nm | 1 | 3.8 | 7 | 13 | 27 | 47 | 107 | 182 |
| Theoretical clamp force N | 40 | 75 | 100 | 185 | 300 | 525 | 825 | 1400 |
| Proof pressure | 1.5MPa | |||||||
| working pressure | 0.1-1.0MPa | |||||||
| Working Temperature | -5-70oC | |||||||
| Lubrication | no need | |||||||
| Piston Speed Range | 50-200mm/s | |||||||
| Port size | M5 | PT1/8 | PT1/4 | |||||
| mounting | Through hole&both ends tapped | both ends tapped, through hole, rear flange | ||||||
| Cushion | Rubber bumper | |||||||
| Non-rotary accuracy | ±4° | ±1.2° | ±0.9° | ±0.7° | ||||
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
