Quick Details
-
Color:
-
Silver
-
Application:
-
Industrial
-
Certificate:
-
ISO9001:2008
-
Working Pressure:
-
0-0.7MPa
-
Material:
-
Aluminium Alloy
-
Seals kit:
-
Twiwan Made
-
Type:
-
Single Action
-
Name:
-
stainless steel type cylinder
-
Working Temp.:
-
5-60
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BLCH or OEM
-

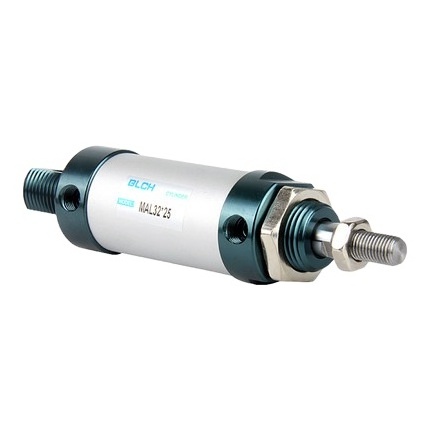

Product name:
-
Air cylinder
-
Color:
-
Silver
-
Application:
-
Industrial
-
Certificate:
-
ISO9001:2008
-
Working Pressure:
-
0-0.7MPa
-
Material:
-
Aluminium Alloy
-
Seals kit:
-
Twiwan Made
-
Type:
-
Single Action
-
Name:
-
stainless steel type cylinder
-
Working Temp.:
-
5-60
Product Description
| MA Specification | |||||||||||
| Bore size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | ||||
| Acting type | MSA,MTA | Single acting | - | ||||||||
| MA.MAD,MAJ | Double acting | - | |||||||||
| MAR | - | Double acting | |||||||||
| MAC,MACD,MACJ | - | Double acting with cushion | |||||||||
| Fluid | Air(to be filtered by 40µ m filter element) | ||||||||||
| Operating pressure | Double acting | 0.1~1.0MPa(15~145psi)(1.0~10.0bar) | |||||||||
| Sing acting | 0.2~1.0MPa(28~145psi)(2.0~10.0bar) | ||||||||||
| Proof pressure | 1.5MPa(215psi)(15bar) | ||||||||||
| Temperature ℃ | -20~70 | ||||||||||
| Speed range mm/s | Double acting:30~800 single acting:50~800 | ||||||||||
| Stroke tolerance | 0~150+1.0>150+1.4 | ||||||||||
| Cushion type | MAC,MACD,MACJ Series:Adjustable cushion Other series:Bumper | ||||||||||
| Port size | M5*0.8 | 1/8” | 1/4” | ||||||||
| PT thread,NPT thread and G thread are available. | |||||||||||
| Bore Size(mm) | *Standard Stroke(mm) | Allowable Strock |
| 16 | 25,50,75,100,125,150,160,175,200 | 500 |
| 20 | 25,50,75,100,125,150,160,175,200,250,300 | 650 |
| 25,32,40,50,63 | 25,50,75,100,125,150,160,175,200,250,300,350,400,450,500 | 650 |
