Quick Details
-
Measuring Capacitance Range:
-
6.000nF ~ 60.00mF
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UNI-T
-
Model Number:
-
UT195DS
-
Measuring Inductance Range:
-
none
-
Operating Temperature:
-
0~40
-
Dimensions:
-
605mm*335mm*405mm
-
Keyword:
-
Multiemter Digital
-
Name:
-
multimeter
-
Product color:
-
Red+Black
-
Package:
-
carton
-
MOQ:
-
2
-
Payment:
-
TT
-
LED Size:
-
66mm * 51mm
-
SELECT:
-
YES
-
Data retention:
-
YES
-
flashlight:
-
YES
Quick Details
-
Measuring Current Range:
-
600.0uA ~ 20A
-
Measuring Voltage Range:
-
600mV ~ 1000V
-
Measuring Resistance Range:
-
600.0Ω ~ 60.00MΩ
-
Measuring Capacitance Range:
-
6.000nF ~ 60.00mF
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UNI-T
-
Model Number:
-
UT195DS
-
Measuring Inductance Range:
-
none
-
Operating Temperature:
-
0~40
-
Dimensions:
-
605mm*335mm*405mm
-
Keyword:
-
Multiemter Digital
-
Name:
-
multimeter
-
Product color:
-
Red+Black
-
Package:
-
carton
-
MOQ:
-
2
-
Payment:
-
TT
-
LED Size:
-
66mm * 51mm
-
SELECT:
-
YES
-
Data retention:
-
YES
-
flashlight:
-
YES

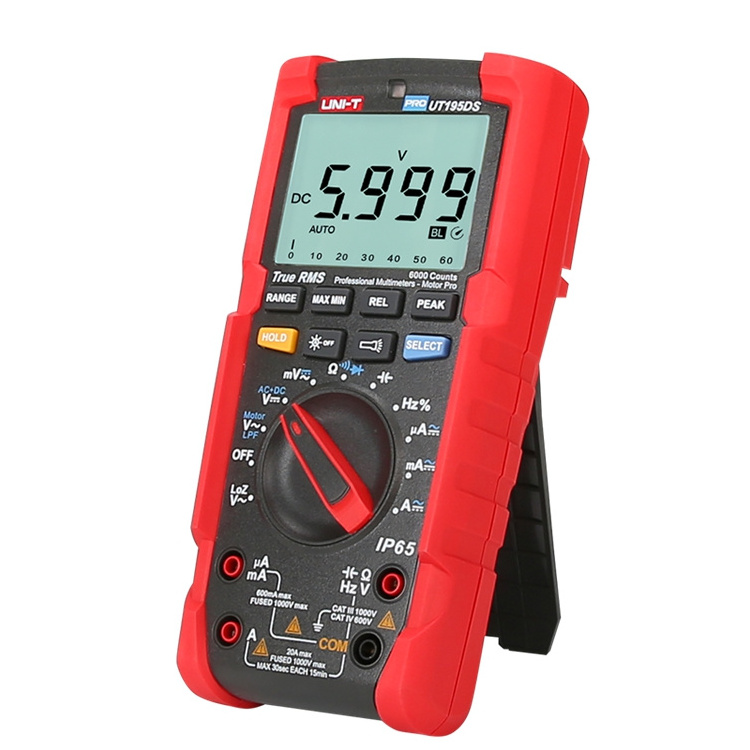

UNI-T UT195DS Industrial Professional True RMS AC DC Digital Multimeter Flashlight / Low Pass Filter Test / LoZ Measurement
| Specifications | Range | Best Accuracy | ||
| Model | UT195E | UT195M | UT195DS | |
| DC voltage | 600mV ~ 1000V | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
| AC+DC | 6.000V ~ 600V | ±(1.5%+4) | ||
| AC voltage | 600mV ~ 750V | ±(0.7%+3) | ±(0.7%+3) | ±(0.7%+3) |
| LoZ ACV | 600.0V | ±(2.0%+3) | ±(2.0%+3) | ±(2.0%+3) |
| DC current (A) | 600.0μA ~ 20A | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
| AC current (A) | 600.0μA ~ 20A | ±(1.0%+3) | ±(1.0%+3) | ±(1.0%+3) |
| Resistance (Ω) | 600.0Ω ~ 60.00MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance | 6.000nF ~ 60.00mF | ±(3%+5) | ±(3%+5) | ±(3%+5) |
| Frequency | 60.00Hz ~ 10.00MHz | ±(0.1%+4) | ||
| 60.00Hz ~ 40.00MHz | ±(0.1%+4) | ±(0.1%+4) | ||
| Duty ratio | 0.1% ~ 99.9% | ±(2.0%+5) | N/A | ±(2.0%+5) |
| Temperature (°C) | -40 ~ 1000°C | ±(1.5%+4°C) | ||
| Temperature (°F) | -40 ~ 1832°F | ±(2.0%+5°F) | ||
| Peak hold | 250μs | |||
| Features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Display (HTN) | Single | Single | Dual | |
| Measurement sampling rate | times/s | 3 | 3 | 5 |
| Analog bar sampling rate | times/s | 10 | 20 | |
| Analog bar | 31 bars | √ | √ | |
| True RMS | √ | √ | √ | |
| AC voltage frequency response | 45 ~ 400Hz | 45 ~ 1kHz | 45 ~ 5kHz | |
| AC current frequency response | 45 ~ 400Hz | 45 ~ 1kHz | 45 ~ 5kHz | |
| 3-phase motor sequence test | 600.0V | √ | √ | |
| Low pass filter test | √ (1kHz 3dB attenuation) | √ | ||
| Diode/Continuity test | 3.5V | 3V | 3V | |
| Auto/Manual range | √ | |||
| Auto power off | √ | |||
| Continuity buzzer | √ | |||
| Low battery indication | √ | |||
| Data hold | √ | |||
| Max/Min | √ | |||
| Function selection | √ | |||
| Flashlight | √ | |||
| Auto backlight | √ | |||
| Operating temperature | 0 °C ~40 °C | |||
| 2m drop test | √ | |||
| Safety rating | IP65 | |||
| General Characteristics | ||||
| Power | 9V battery (6F22/6LR61) | |||
| LCD size | 66mm×51mm | |||
| Device color | Red and grey | |||
| Device weight | 450g | |||
| Device size | 206.5mm×95.5mm×61mm | |||
| Standard accessories | Test probes, battery, carrying bag, temperature probe (UT195M), PC software CD (UT195DS) | |||
| Standard individual packing | Blister, gift box, manual | |||
| Standard quantity per carton | 10pcs | |||
| Standard carton measurement | 605mm×335mm×405mm | |||
| Standard carton gross weight | 11.8kg | |||
