- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
50m*12m*7m
-
Year:
-
2022
-
Power (kW):
-
120 kW
-
Weight (KG):
-
10000 KG
-
After-sales Services:
-
Engineers available to service
-
Raw material:
-
All kinds of plastics
-
Throughput Capacity:
-
>=30Mt/Day
-
Oil output rate:
-
40%-70%
-
Certification:
-
CE/TUV/ATEX
-
Reactor life:
-
Over 10 years
-
Noise:
-
<80dB
-
Local Service Location:
-
Germany/India/Thailand/Thailand/Malaysia
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Online/Video technical support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Niutech
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
50m*12m*7m
-
Year:
-
2022
-
Power (kW):
-
120 kW
-
Weight (KG):
-
10000 KG
-
After-sales Services:
-
Engineers available to service
-
Raw material:
-
All kinds of plastics
-
Throughput Capacity:
-
>=30Mt/Day
-
Oil output rate:
-
40%-70%
-
Certification:
-
CE/TUV/ATEX
-
Reactor life:
-
Over 10 years
-
Noise:
-
<80dB
-
Local Service Location:
-
Germany/India/Thailand/Thailand/Malaysia
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Online/Video technical support
Product Description

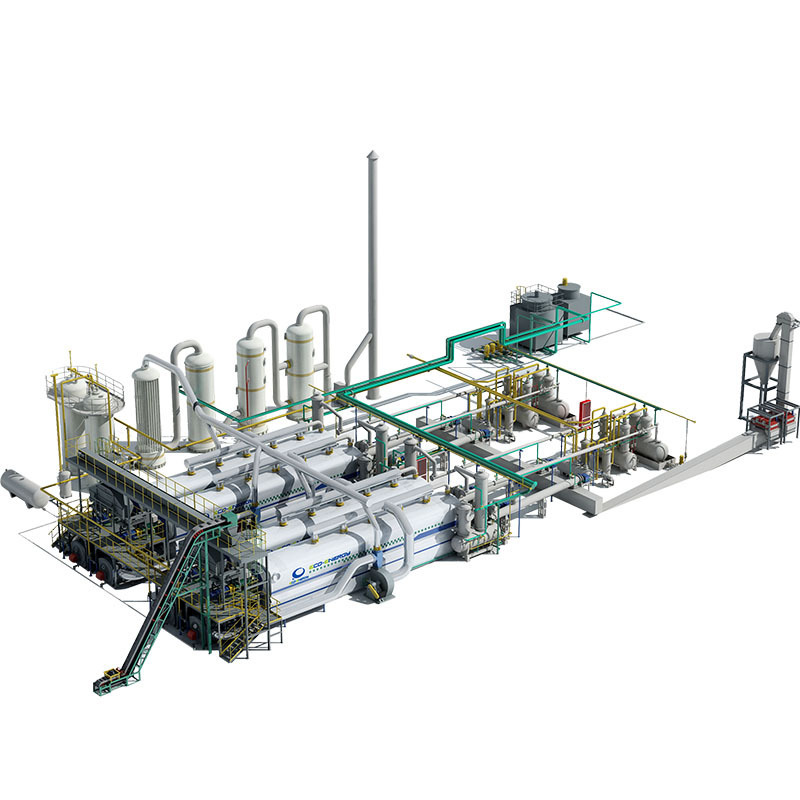

Scrap tire recycling production line can process all kinds of waste tires. By thoroughly decomposition, the polymer in waste tire can be cracking into small molecular or monomers, producing pyrolysis oil.
Technical Parameters
|
No.
|
Item
|
Technical Parameter
|
|
1
|
Suitable Raw Material
|
All kiinds of waste tires(rubber)
|
|
2
|
Operation Mode
|
fully continuous operation
|
|
3
|
Structure
|
horizontal type
|
|
4
|
Loading and Discharging
|
fully automatic feeding and discharging
|
|
5
|
Capacity(24h)
|
>=30Mt/Day (customized)
|
|
6
|
Work Pressure
|
normal pressure(slightly negative)
|
|
7
|
Oil Yield
|
43~48%
|
|
8
|
Power
|
50~60kw/h
|
|
9
|
Cooling System
|
cycle water
|
|
10
|
Heating System
|
hot air
|
|
11
|
Noise
|
<=85(dB)
|
|
12
|
Main Reactor Weight
|
40Mt
|
Main Parts of System
Feeding System
The raw material is automatically transported to the transitional hopper through the feeding conveyor. This system can also
realize on-line weighing, conveying, feeding seal and other functions.
Pyrolysis System
Non-condensable combustible (NCG) gas scrubbing system
Oil Gas Cooling and Separating System
Discharging System
Electrical control system
Niutech Pyrolysis Core Technology Advantages
End Product
Oil
Solid Feul
Certifications
CE/UKCA/ATEX certified.
Emission comply with EEA standard in EU and EPA standard in USA.
Emission comply with EEA standard in EU and EPA standard in USA.
80+ Domestic and abroad patents.
Partial of our patents and awards.
Packing & Delivery
Case Show
This project was delivered successfully marks Niutech environmental pyrolysis equipment already met EU and Germany strict requirement on environment and technology performance
