Quick Details
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
2160*1780*1090
-
Weight:
-
1.4 t
-
Product name:
-
Vibrating screen
-
Customized:
-
support
-
advantage:
-
Low noise and high yield
-
Number of layers:
-
1-5 layers
-
Screen material:
-
High manganese steel
-
frequency:
-
50/60 Hertz
-
characteristic:
-
High screening efficiency
-
Color:
-
Customer requirement
-
Usage:
-
Quarrying and sand production lines
-
After-sales service:
-
lifetime
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Baixu
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
2160*1780*1090
-
Weight:
-
1.4 t
-
Product name:
-
Vibrating screen
-
Customized:
-
support
-
advantage:
-
Low noise and high yield
-
Number of layers:
-
1-5 layers
-
Screen material:
-
High manganese steel
-
frequency:
-
50/60 Hertz
-
characteristic:
-
High screening efficiency
-
Color:
-
Customer requirement
-
Usage:
-
Quarrying and sand production lines
-
After-sales service:
-
lifetime
mining aggregate small vibrating motor rocks vibrating screen price in china
Product Description
Vibrating screen is widely used in mining, building materials, transportation, energy, chemical and other industries of product screening, according to the material products and user requirements, so as to use high manganese steel braid screen mesh, perforated screen plate and rubber screen plate, screen plate is divided into single layer and multi-layer, all kinds of screen plate can meet the different requirements of screening effect.
Circular vibrating screen motion track is round, suitable for coal, limestone, gravel, gravel, metal or non-metallic ore and other materials screening.

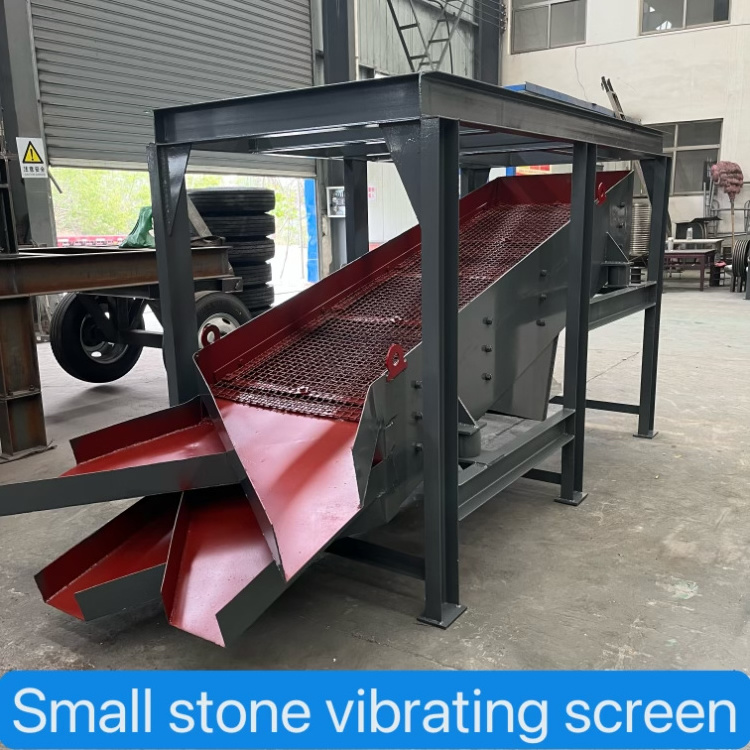

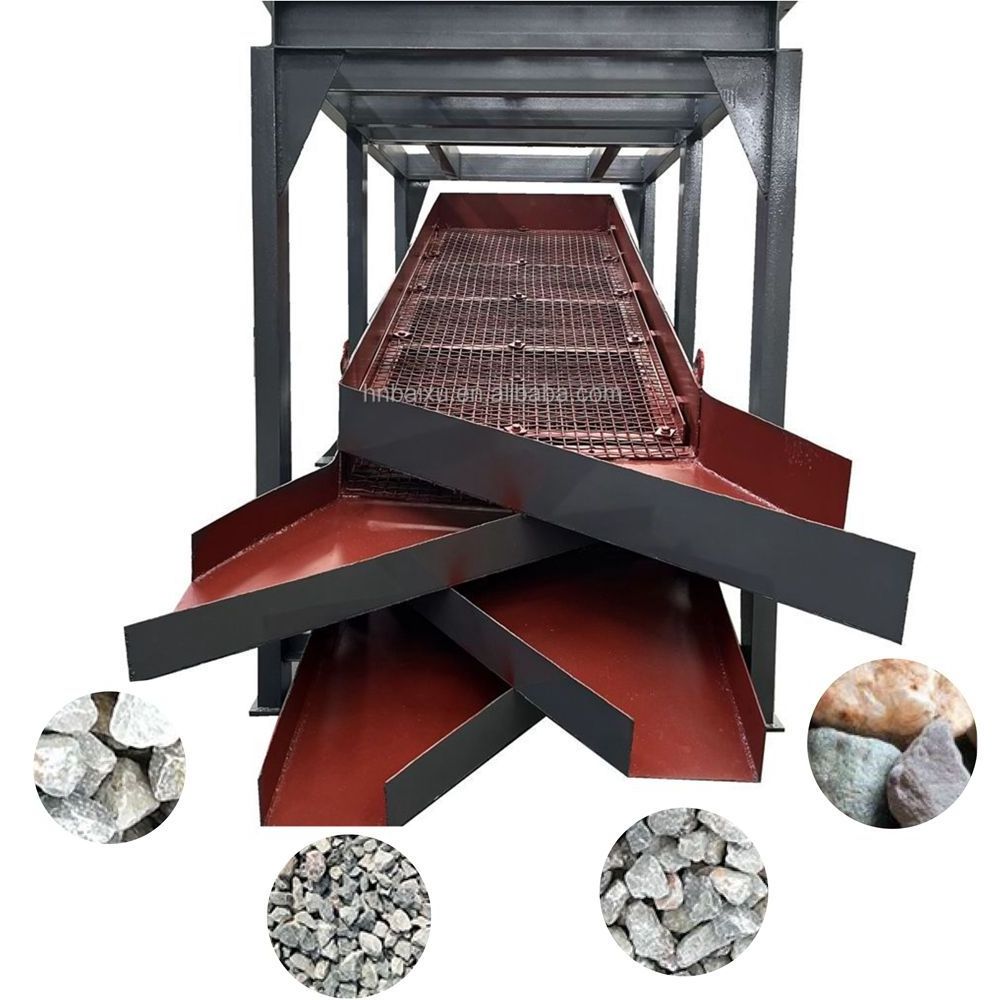

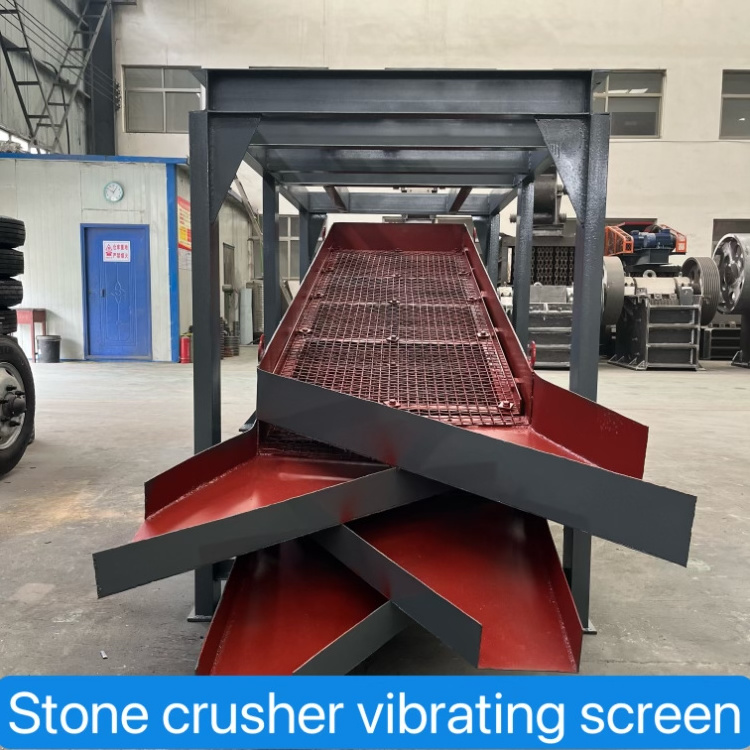

Product display

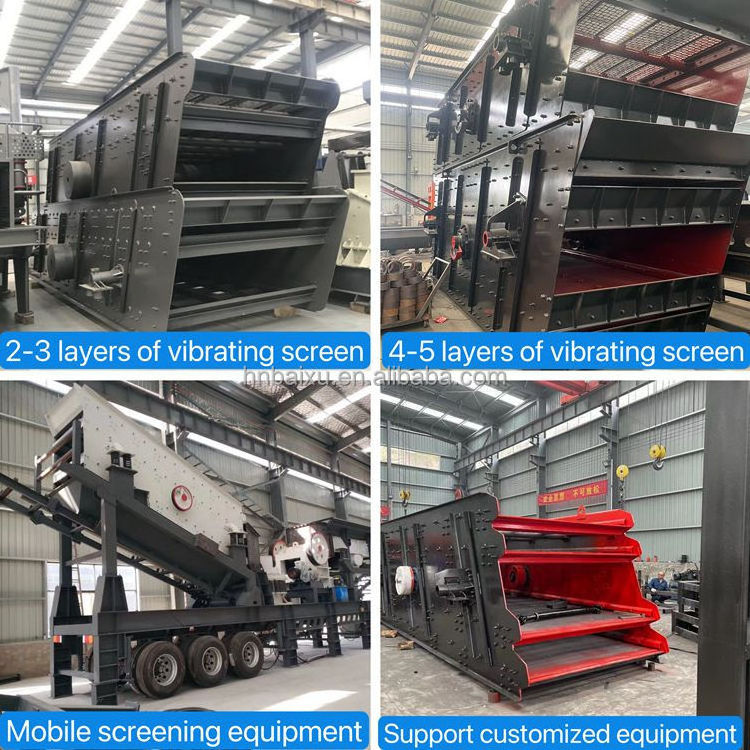

The style configuration can be customized on request
The screen is the most prone to wear
Baixu machinery adopts high manganese steel material to increase the service life of wear-resistant parts
Technical parameter
|
Model number
|
Number of screen layers
|
Screen area (m²)
|
Motor power (kw)
|
yield（t/h)
|
|
2yk1236
|
2
|
4.32
|
7.5
|
20-50
|
|
3yk1236
|
3
|
4.32
|
11
|
30-60
|
|
4yk1236
|
4
|
4.32
|
15
|
30-60
|
|
2yk1548
|
2
|
7.2
|
11
|
50-100
|
|
3yk1548
|
3
|
7.2
|
18.5
|
60-100
|
|
4yk1548
|
4
|
7.2
|
22
|
70-100
|
|
5yk1548
|
5
|
7.2
|
37
|
80-100
|
|
2yk1860
|
2
|
10.8
|
18.5
|
80-140
|
|
3yk1860
|
3
|
10.8
|
22
|
80-150
|
|
4yk1860
|
4
|
10.8
|
37
|
90-150
|
|
5yk1860
|
5
|
10.8
|
45
|
100-150
|
|
2yk2160
|
2
|
12.6
|
22
|
80-150
|
|
3yk2160
|
3
|
12.6
|
37
|
90-180
|
|
4yk2160
|
4
|
12.6
|
45
|
90-180
|
|
5yk2160
|
5
|
12.6
|
45
|
100-200
|
Product advantage
Title goes here.
1. Adopt cylindrical eccentric shaft vibrator and offset block to adjust amplitude, easy to use and easy to maintain.
2, round vibrating screen using spring steel braided screen or perforated screen plate, long service life, not easy to plug holes.
3, reliable structure, strong vibration force, high screening efficiency, small vibration noise.
Company introduction
Henan Baixu Machinery Equipment Co., Ltd. has become and mining equipment, cement machinery, building materials equipment production, research and development, sales in one of the enterprises. The main production of jaw crusher, hammer crusher, impact crusher, crusher production lines, engineering building materials machinery and other products. It is widely recognized in stone crushing, construction sand, mineral processing equipment and other business fields. Business and service agencies all over the
country, and exported to Eastern Europe, Central Asia and other countries.
country, and exported to Eastern Europe, Central Asia and other countries.
Exhibition hall, workshop, well equipped：
Customer feedback：
Mine equipment has been exported to more than 20 countries, serving more customers
