Quick Details
-
Brand Name:
-
QiangLin
-
Color:
-
Black ,Yellow,Blue. Customization are available
-
Working medium:
-
Water Glycol and Oil
-
Working Temperature:
-
-20~80°C
-
Working Pressure:
-
7Mpa~31.5Mpa
-
Mounting Style:
-
Optional&Customizable
-
After Warranty Service:
-
Video technical support
Quick Details
-
Weight (KG):
-
40
-
Core Components:
-
Piston,Rod,Cap,Head,Barrel,Seals,Mounts,Valves
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
QiangLin
-
Color:
-
Black ,Yellow,Blue. Customization are available
-
Working medium:
-
Water Glycol and Oil
-
Working Temperature:
-
-20~80°C
-
Working Pressure:
-
7Mpa~31.5Mpa
-
Mounting Style:
-
Optional&Customizable
-
After Warranty Service:
-
Video technical support
Why Choose Us
Products Description
|
Product Name
|

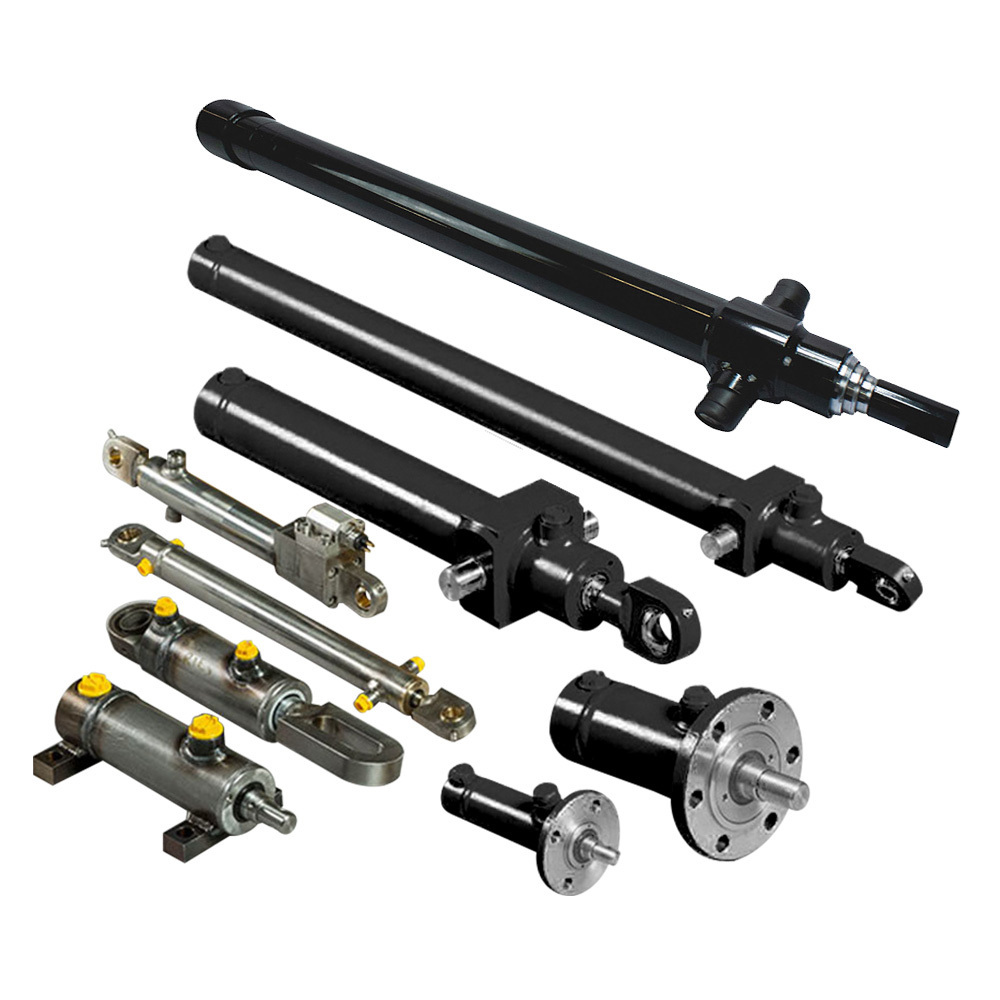

HSG Series Hydraulic Cylinder
|
|
|
|
|||
|
Work Press
|
7/14/16/21/31.5MPa 37.5/63MPa Can be Customized
|
|
|
|
|||
|
Material
|
Aluminum,Cast Iron,45mnb Steel,Stainless Steel
|
|
|
|
|||
|
Bore Size
|
40mm--320mm,Customizable
|
|
|
|
|||
|
Shaft Diameter
|
20mm--220mm,Customizable
|
|
|
|
|||
|
Stroke Length
|
30mm--14100mm,Customizable
|
|
|
|
|||
|

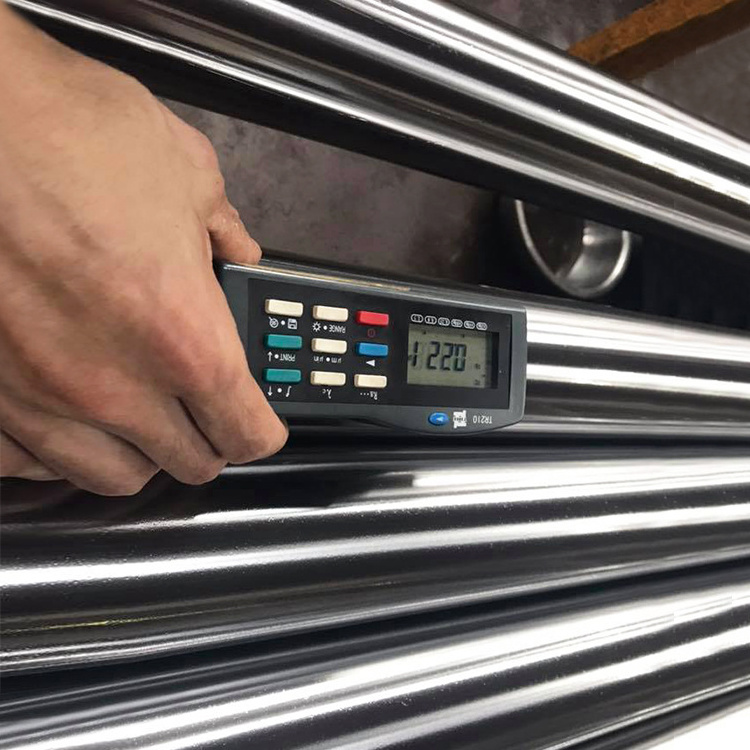

Rod Surface Hardness
|
HRC48-54
|
|
|
|
|||
|
Paint Color
|
Black,Yellow,Blue,Brown,Customizable
|
|
|
|
|||
|
Mounting
|
Earring,Flange,Clevis.Foot,Trunnion,Customizable
|
|
|
|
|||
|
Warrenty
|
1 Year
|
|
|
|
|||
|
MOQ
|
1 Piece
|
|
|
|
|||
|
Delivery Time
|
7-15 Days,Also depands on specific demands
|
|
|
|
|||
|
Certification
|
ISO9001,CE
|
|
|
|
|||
