Quick Details
-
Weight (KG):
-
410
-
Voltage:
-
220V,50/60HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fadekang
-
Dimension(L*W*H):
-
L4020*W720*H1320
-
Product name:
-
Horizontal Packing Machine
-
Packing speed:
-
40-230bags/min
-
Bag type:
-
Pillow Bag
-
Packing material:
-
Laminated Film
-
Feature:
-
Easy Opperation
-
Optional Devices:
-
Data Printer
-
Keyword:
-
hardware pillow packing machine
-
Main Function:
-
Wrapping Packing
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing
-
Packaging Type:
-
Bags, Film
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
410
-
Voltage:
-
220V,50/60HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fadekang
-
Dimension(L*W*H):
-
L4020*W720*H1320
-
Product name:
-
Horizontal Packing Machine
-
Packing speed:
-
40-230bags/min
-
Bag type:
-
Pillow Bag
-
Packing material:
-
Laminated Film
-
Feature:
-
Easy Opperation
-
Optional Devices:
-
Data Printer
-
Keyword:
-
hardware pillow packing machine
-
Main Function:
-
Wrapping Packing
Automatic Door Handle Taps Faucets Power Cord Bearing Packing Machine
Application
Scope Of Application:
Food: cake, bread, biscuits, cookies, meat muffin, flaky pastry, moon cake, several sausage in a bag, noodles, beef jerky, egg roll, etc
Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers
Hardwares: hinge, stainless steel pipe,bearings , screw, nuts and washer, etc
Hotel Supplies: soap, disposable comb, tooth paste and brush in one set.
Stationary: pencil, eraser, notebook, paper card, adhensive tape
Electric Products: battery, usb cable, earphone, user manual and accessories in one set.
Medical: face mask, glove, gauze, capsule, disposable syringe.
Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, bottles, napkin, baby diaper, etc.
Food: cake, bread, biscuits, cookies, meat muffin, flaky pastry, moon cake, several sausage in a bag, noodles, beef jerky, egg roll, etc
Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers
Hardwares: hinge, stainless steel pipe,bearings , screw, nuts and washer, etc
Hotel Supplies: soap, disposable comb, tooth paste and brush in one set.
Stationary: pencil, eraser, notebook, paper card, adhensive tape
Electric Products: battery, usb cable, earphone, user manual and accessories in one set.
Medical: face mask, glove, gauze, capsule, disposable syringe.
Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, bottles, napkin, baby diaper, etc.

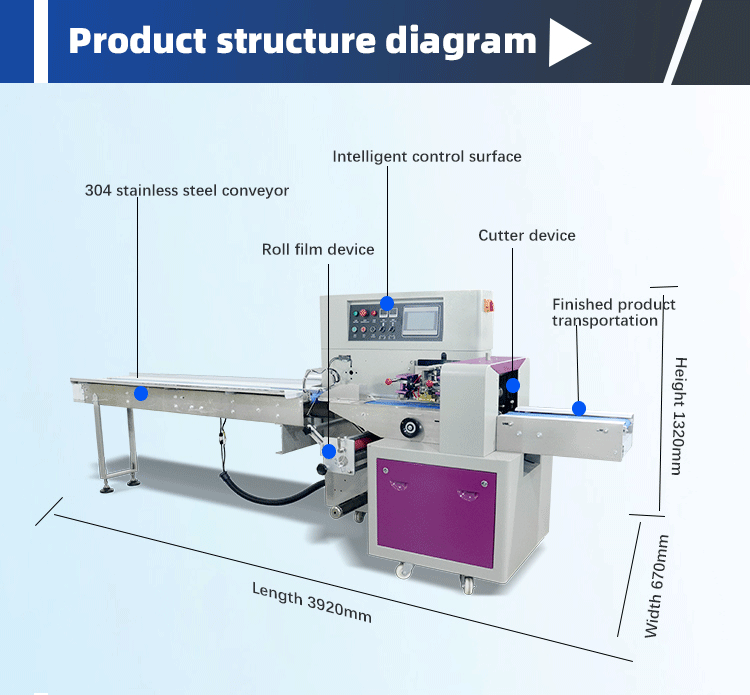

Details of the Machine
|
Model：
|
FDKZB-350XS
|
|
Film width：
|
Max.350mm
|
|
Bag width:
|
Max. 160mm
|
|
Bag Length:
|
Max.5000mm
|
|
Product Height:
|
Max.50mm
|
|
Speed:
|
40-230bags/min
|
|
Power:
|
220V,50/60HZ, Single Phase
|
I. Main performance and structure features
1. Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and
saving films.
1. Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and
saving films.
2. human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting
more accurate.
more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
II. Optional device
1. Code applying machine
1. Code applying machine
2. line sealing wheel
3. Moire terminal sealing mould
4. Extra big screen
Recommend Products
customer feedback
Packing & Delivery
The wooden case is customized according to the dimension of the machine for the long time shipping and transfering.
Shipping a whole set of the machine:
1. Preparing and checking the toolbox wearing part and the manual book.
2. Cleaning the dust and the scrap after testing the machine with the air pump.
3. Apply rust-proof liquid.
4. Disassemble some certain part of the machine.
5. All the disassemble part, toolbox, main machine package by film
6. There will have screw fix the machine at the bottom of the wooden case
A small spare part:
The film first than delivered by the DHL,UPS,TNT,EMS etc.
Shipping a whole set of the machine:
1. Preparing and checking the toolbox wearing part and the manual book.
2. Cleaning the dust and the scrap after testing the machine with the air pump.
3. Apply rust-proof liquid.
4. Disassemble some certain part of the machine.
5. All the disassemble part, toolbox, main machine package by film
6. There will have screw fix the machine at the bottom of the wooden case
A small spare part:
The film first than delivered by the DHL,UPS,TNT,EMS etc.
