Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Megaplant
-
Dimension(L*W*H):
-
417*441*494mm
-
Weight:
-
42
-
Rated power/speed:
-
3600
-
Product name:
-

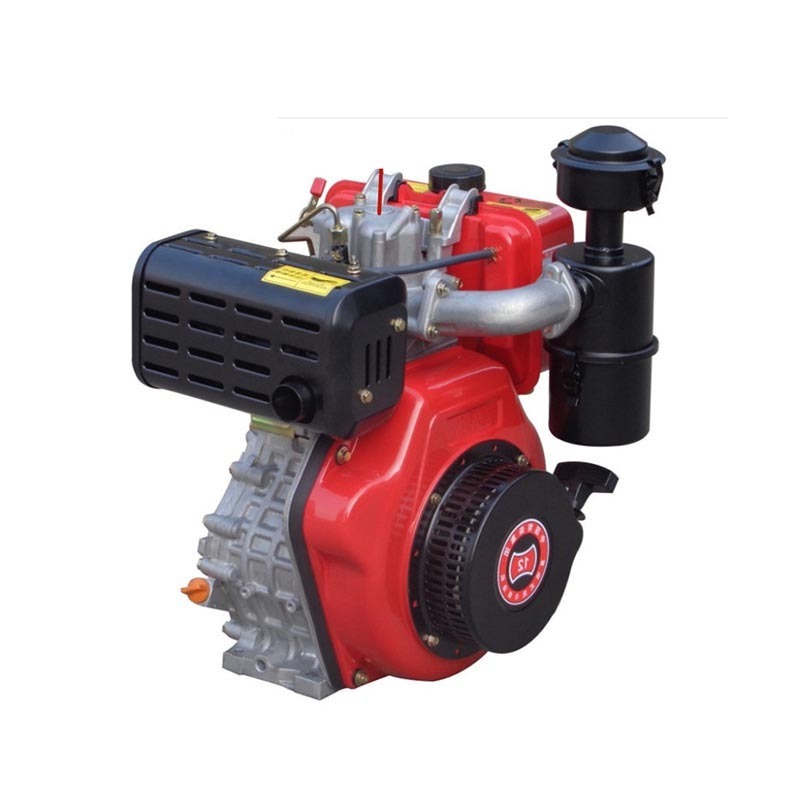

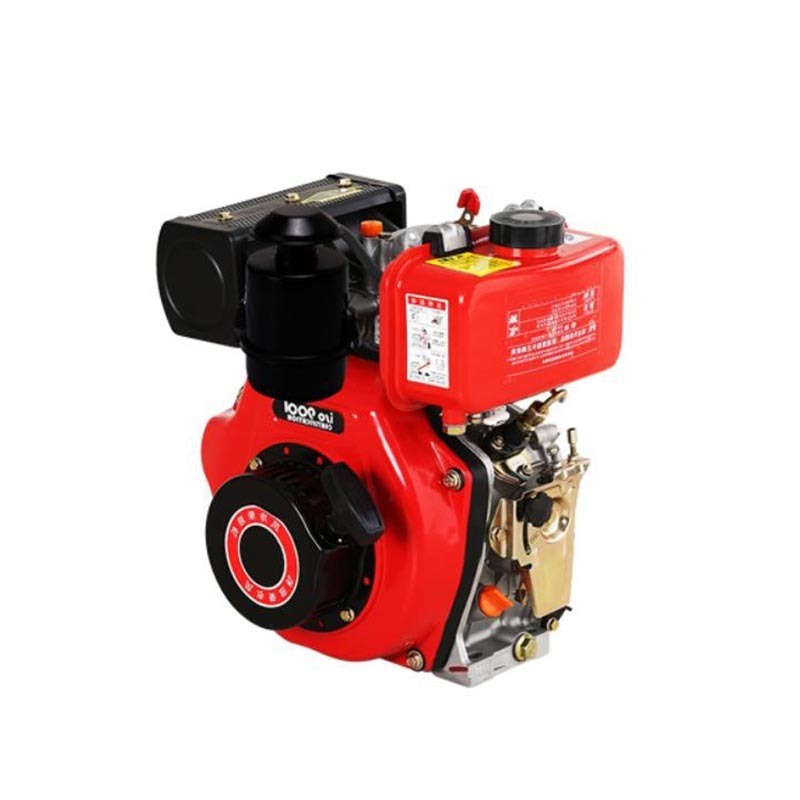

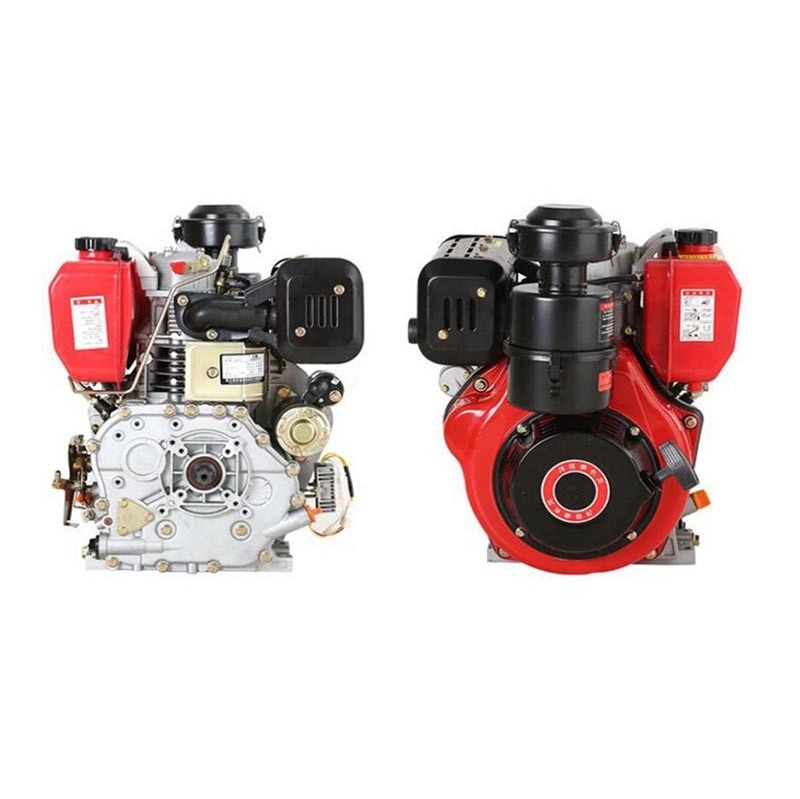

New product single cylinder water cooled diesel engine 15hp in stock
-
Engine Model:
-
188F
-
Application:
-
Farm
-
Cooling System:
-
Air Colled
-
Engine Feature:
-
Excellent Combustion Efficiency
-
Engine type:
-
Water-cooled 4-stroke
-
Rated Power:
-
1.5hp~13.5hp
-
Function:
-
Small Diesel Engine Power Support
Quick Details
-
Displacement:
-
418cc
-
Emission Standard:
-
EPA Tier2
-
Power:
-
6HP, 9HP, 12HP, 15HP, 5HP, 10HP
-
Place of Origin:
-
China
-
Brand Name:
-
Megaplant
-
Dimension(L*W*H):
-
417*441*494mm
-
Weight:
-
42
-
Rated power/speed:
-
3600
-
Product name:
-
New product single cylinder water cooled diesel engine 15hp in stock
-
Engine Model:
-
188F
-
Application:
-
Farm
-
Cooling System:
-
Air Colled
-
Engine Feature:
-
Excellent Combustion Efficiency
-
Engine type:
-
Water-cooled 4-stroke
-
Rated Power:
-
1.5hp~13.5hp
-
Function:
-
Small Diesel Engine Power Support
Specifications
|
Model
|
173F
|
178F
|
186FA
|
188F
|
192F
|
195F
|
|
House power
|
5HP
|
6HP
|
9HP
|
10HP
|
12HP
|
15HP
|
|
Power
|
3.5KW
|
4.0KW
|
6.3KW
|
7.5KW
|
8.5KW
|
11.0KW
|
|
Swept volume
|
247cc
|
296cc
|
418cc
|
456cc
|
499cc
|
532cc
|
|
Oil tank
|
2.5L
|
3.5L
|
5.5L
|
5.5L
|
5.5L
|
5.5L
|
|
Engine oil tank
|
0.7L
|
1.1L
|
1.65L
|
1.65L
|
1.65L
|
1.65L
|
|
Speed
|
3600rpm
|
3600rpm
|
3600rpm
|
3600rpm
|
3600rpm
|
3600rpm
|
|
Fuel consumption
|
≤280g/kwh
|
≤280g/kwh
|
≤280g/kwh
|
≤280g/kwh
|
≤280g/kwh
|
≤280g/kwh
|
|
Cylinder Diameter
|
73mm
|
78mm
|
86mm
|
88mm
|
92mm
|
95mm
|
|
Piston Stroke
|
59mm
|
62mm
|
75mm
|
75mm
|
75mm
|
75mm
|
|
Weight
|
23kg
|
33kg
|
41kg
|
41kg
|
42kg
|
42kg
|
