Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Type:
-
Calcium Silicate Fireproof Board
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jiaheng
-
Model Number:
-
GSFHCSB
-
Color, pattern and Diemension:
-
Can be Customized
-
Surface:
-
natural flat
-
Thickness:
-
9/12/15/20mm
-
Edge:
-
Square Edge
-
Density:
-
1.25---1.4 G/cm3
-
Fire Resistance:
-
A Class
-
Service:
-
OEM
-
Standard Size:
-
1220*2440mm/1220*3000mm
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Type:
-
Calcium Silicate Fireproof Board
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jiaheng
-
Model Number:
-
GSFHCSB
-
Color, pattern and Diemension:
-
Can be Customized
-
Surface:
-
natural flat
-
Thickness:
-
9/12/15/20mm
-
Edge:
-
Square Edge
-
Density:
-
1.25---1.4 G/cm3
-
Fire Resistance:
-
A Class
-
Service:
-
OEM
-
Standard Size:
-
1220*2440mm/1220*3000mm
Jiaheng product line
Product details
Green Wall Material
Green Energy Conservation
Effectively reduce the water and electricity, consumptive material, reduce the construction waste and dust pollution, shorten the construction period, greatly reduce the building activities and energy consumption for building use, reduce 50% civilized construction cost of the part project of branch company.
Green Construction Working
Class A Environmental Protection
Specification
|
Items
|
Low Density Calcium Silicate Board, Fireproof Board
|
|
|
||
|
Executive Standard
|
JC/T564.1-2008 Fiber Cement Flat Sheets Part 1: Non-asbestos Calcium Silicate Board
|
|
|
||
|
Product Ingredient
|
High purity quartz sand + mica + perlite and other mineral fillers + plant fiber + moderate amount of low alkali cement
|
|
|
||
|
Standard dimension (mm)
|
2440x1220x9mm 、12mm 、15mm 、20mm, other size can be customized
|
|
|
||
|
Density (g/cm3)
|
0.95≤D≤1.20
|
|
|
||
|
Bulking Factor %
|
≤0.25
|
|
|
||
|
Rupture Strength MPa
|
≥8, aspect intensity ratio≥58%
|
|
|
||
|
Thermal Conductivity W/(m.k)
|
≤0.2
|
|
|
||
|
Thermal Shrinkage %
|
≤0.50
|
|
|
||
|
Environmental Protection Evaluation
|
100% asbestos-free, non-hazardous substances
|
|
|
||
|
Radioactivity
|
Class A materials, with unrestricted range of production, sale and use in conformity with the Limits of Radionuclides in Building Materials（GB6566-2001）
|
|
|
||
|
Non-inflammability
|
Class A in-combustibility conforms to Classification for Burning Behavior of Building Materials and Products（GB8624）
|
|
|
||
|
Color, pattern and surface
|
Can be customized
|
|
|
||

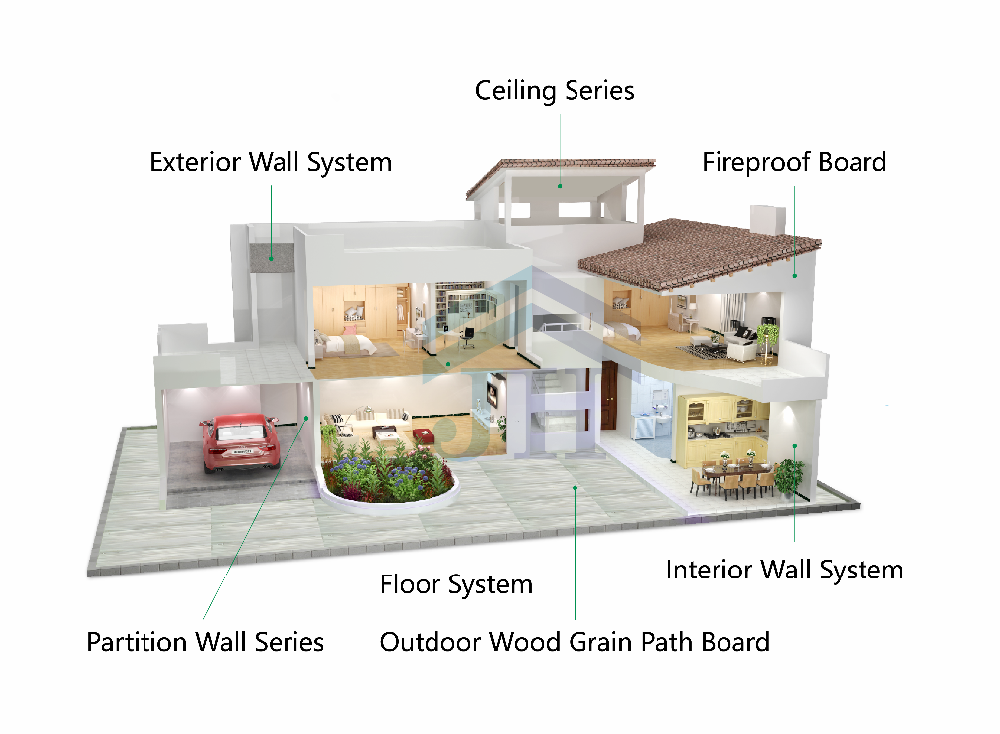

Applications
