Quick Details
-
Brand Name:
-
OncQue
-
Model Number:
-
VBS020701
-
Max. Current:
-
1.0
-
Certificate:
-
RoSH
-
Function:
-

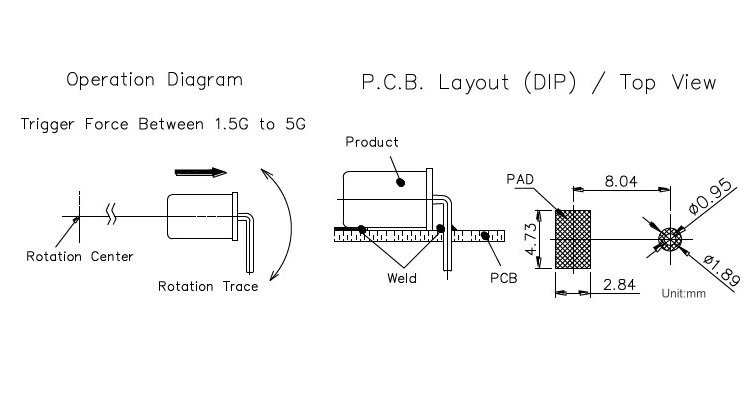

Trigger Force Between 1.5G to 5G
-
Specification:
-
Horizontal and Vertical PCB
-
Production Process:
-
DIP
-
Theory:
-
Centrifugal Ball-Contact sensor
-
Switch State:
-
Normal open
-
Dimension:
-
4.9*7.8 mm
-
Usage:
-
TPMS / Laser Marker / Step Counters
-
Quality:
-
MADE IN TAIWAN
-
Certification:
-
RoHS
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
5V
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
OncQue
-
Model Number:
-
VBS020701
-
Max. Current:
-
1.0
-
Certificate:
-
RoSH
-
Function:
-
Trigger Force Between 1.5G to 5G
-
Specification:
-
Horizontal and Vertical PCB
-
Production Process:
-
DIP
-
Theory:
-
Centrifugal Ball-Contact sensor
-
Switch State:
-
Normal open
-
Dimension:
-
4.9*7.8 mm
-
Usage:
-
TPMS / Laser Marker / Step Counters
-
Quality:
-
MADE IN TAIWAN
-
Certification:
-
RoHS
Product Description
|
Input Current (mA)
|
Operating Voltage (V)
|
Condition
|
|
1.0
|
5
|
--
|
|
Contact Rating
|
10 mA , 5 VDC
|
|
Contact Resistance
|
10 Ω max.
|
|
Insulation Resistance
|
1000 MΩ min. ,100 VDC
|
|
Dielectric Strength
|
500 VDC min. ,1 minute
|
|
Capacitance
|
5 pF max.
|
|
Operating Temperature
|
-25°C to 85°C
|
|
Storage Temperature
|
-40℃~85℃
|
|
Humidity
|
40℃ / 95%RH
|
|
Mechanical Life
|
2Hz, horizontal
1,000,000 times |
|
Electrical Life
|
100,000 times
|

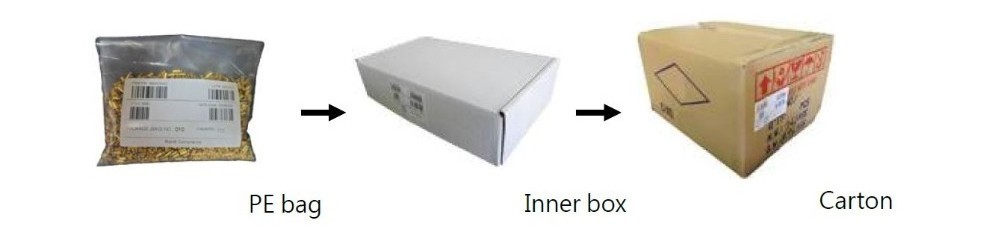

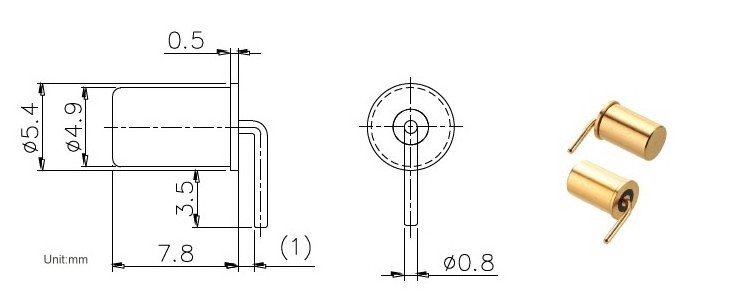

Dimension & Packing
|
Package
|
Quantity
|
Total Q'ty
|
Dimension(mm)
|
|
PE bag
|
1,000 pcs
|
1,000 pcs
|
205L*145W
|
|
Inner box
|
10 PE bags
|
10,000 pcs
|
348L*191W*85H
|
|
Carton
|
3 Boxes
|
30,000 pcs
|
364L*278W*213H
|
Application
