Quick Details
-
Type:
-
Tablet PC
-
Weight:
-
1.7kg
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
UsingWin
-
Model Number:
-
US-65101
-
Network:
-
Wifi/ Ethernet/3G
-
Certification:
-
CE/ROHS/FCC/ISO, FCC, ce, RoHS
-
CPU:
-
Cortex-A17 RK3288/RK3399
-
Keywords:
-
Capactive Touch Screen
-
Application:
-
Industrial Automation Fields
-
Brightness:
-
250cd/m2
-
Interface:
-
RS232/OTG/Sim Slot/USB/RJ45
-
Product name:
-
10 Inch OEM Android Tablet
-
Material:
-
Aluminum Metal ABS
Quick Details
-
Memory Capacity:
-
16GB
-
Display resolution:
-
1280x800
-
Operating System:
-
Android5.1/7.1
-
Type:
-
Tablet PC
-
Weight:
-
1.7kg
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
UsingWin
-
Model Number:
-
US-65101
-
Network:
-
Wifi/ Ethernet/3G
-
Certification:
-
CE/ROHS/FCC/ISO, FCC, ce, RoHS
-
CPU:
-
Cortex-A17 RK3288/RK3399
-
Keywords:
-
Capactive Touch Screen
-
Application:
-
Industrial Automation Fields
-
Brightness:
-
250cd/m2
-
Interface:
-
RS232/OTG/Sim Slot/USB/RJ45
-
Product name:
-
10 Inch OEM Android Tablet
-
Material:
-
Aluminum Metal ABS
|
10.1inch Android Industrial Tablet PC
|
|
|
|
System
|
|
|
|
CPU: Rk3288/RK3399,
Quad-core Cortex-A72 1.8GHz
|
Storage: 2GB +8GB /2GB +16GB
|
|
|
GPU: Mali-T864 IP65
|
Operation system: Android 5.1/7.1.2
|
|
|
Screen diagonal (Inch/cm): 10.1/25.65
|
Resolution: 1280x800
|
|
|
Display active screen size: 21.70x13.60
|
Aspect ratio: 16:10
|
|
|
Brightness: 250cd/m2
|
COM TTL serial port: 3.81mm terminal lead
|
|
|
Backlight Lifetime: LED / 30,000hours
|
WIFI: 802.11/B/G/N
|
|
|
3/4G, barcode/QRcode, Fingerprint Can be customized.
|
|
|
|

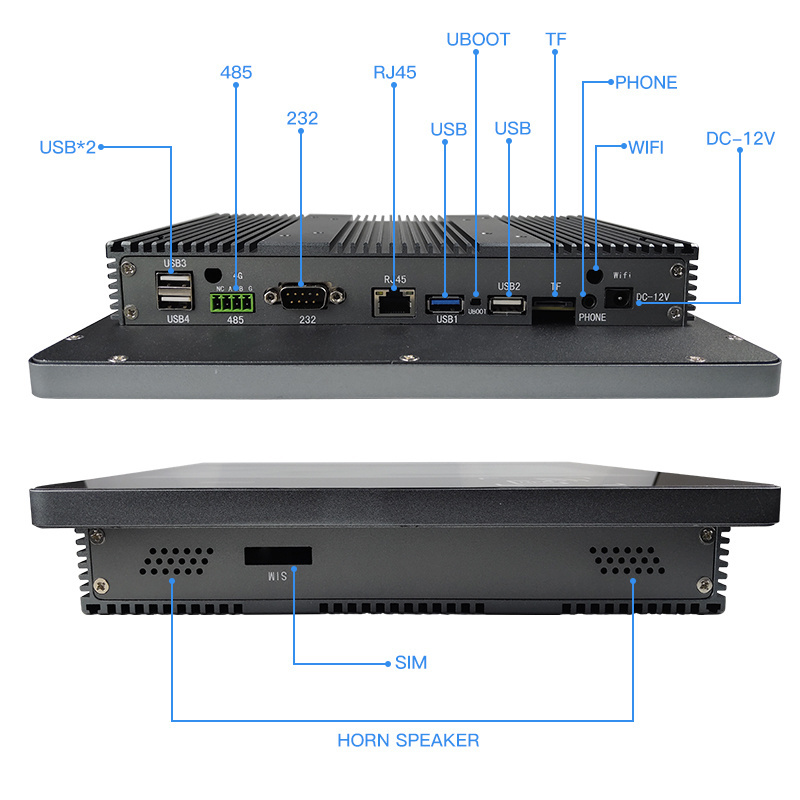

I/O: 1*12DC. 1*RS232. 1*RS485. 1*SIM. 4*USB. 1*RJ45. 1*UBOOT. 1*4G. 1*TF card. 1*Phone. 1*Wifi. 2*Speaker. (Optional)
|
|
|
|
Other Specification
|
|
|
|
Touch screen: 10-point capacitive touch
|
Power Indicator: Green LED
|
|
|
Housing material: Aluminium, Metal+ABS
|
Working Power: 12V
|
|
|
Touch Life (Contacts): Unlimited
|
Power Consumption: 11W
|
|
|
Surface Hardness: 7H
|
Mounting: VESA 75/100
|
|
|
Humidity Range :10%-90% RH
|
Weight: 1.7kg
|
|
|
Operating Temperature:-10 ~ +65 °C
|
Overall size(LxWxH): 260×180×43.5mm
|
|
|
Power Supply: 100-240V AC DC ; 12V DC-Out
|
Package dimensions: 550×110×395mm
|
|
|
3C, CE, ROHS, ISO...
|
|
|
