Quick Details
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Base on different model
-
Weight:
-
3500 KG
-
Name:
-

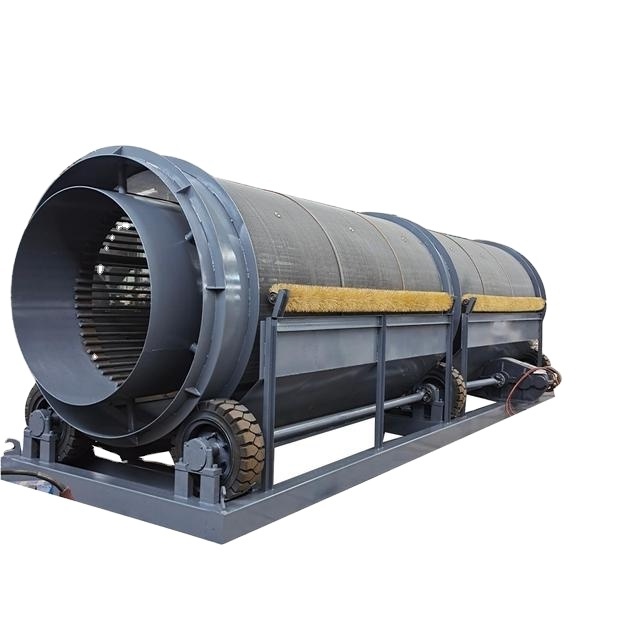

Drum Screen
-
Keyword:
-
Rotary Vibrating Separator
-
Function:
-
Screening\separation\sorting\sieving
-
Material:
-
Carbon Steel
-
Motor:
-
Vertical Vibrating Motor
-
Feature:
-
High Screening Efficiency
-
Cleaning system:
-
Bouncing Ball
-
Screen Mesh:
-
2-500 Mesh
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Mingxin
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Base on different model
-
Weight:
-
3500 KG
-
Name:
-
Drum Screen
-
Keyword:
-
Rotary Vibrating Separator
-
Function:
-
Screening\separation\sorting\sieving
-
Material:
-
Carbon Steel
-
Motor:
-
Vertical Vibrating Motor
-
Feature:
-
High Screening Efficiency
-
Cleaning system:
-
Bouncing Ball
-
Screen Mesh:
-
2-500 Mesh
Product Description
Characteristic
| Model | Working area(m2) | Sieve layers | Max. feed(mm) | Capacity(t/h) | Sieve hole size(mm) | Vibrations | Power(kw) |
| 400×800 | 0.29 | 1 | 50 | 12 | 1-25 | 1500 | 1.1 |
| 400×800 | 0.29 | 2 | 50 | 12 | 1-15 | 1500 | 0.5 |
| 800×1600 | 1.2 | 1 | 100 | 20-25 | 3-40 | 1430 | 2.2 |
| 900×1800 | 1.52 | 1 | 60 | 20-25 | 1-25 | 1000 | 2.2 |
| 900×1800 | 1.52 | 2 | 60 | 20-25 | 1-25 | 1000 | 2.2 |
| 1250×2500 | 3.15 | 1 | 100 | 150 | 6-40 | 850 | 5.5 |
| 1250×2500 | 3.15 | 2 | 150 | 150 | 6-40 | 1200 | 5.5 |
