Quick Details
-
Roll Ratio(Front/Back):
-
Free to adjust
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XH
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
1150*750*1450mm
-
Year:
-
2021
-
Power (kW):
-
7.5
-
Weight (KG):
-
400 KG
-
Type:
-
Open Mixing Mill
-
machine type:
-
testing machine
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE
Quick Details
-
Diameter of Roll(mm):
-
160 mm
-
Rotation Speed of Front Roll(rpm):
-
1 - 30 rpm
-
Length of Roll(mm):
-
350 mm
-
Roll Ratio(Front/Back):
-
Free to adjust
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XH
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
1150*750*1450mm
-
Year:
-
2021
-
Power (kW):
-
7.5
-
Weight (KG):
-
400 KG
-
Type:
-
Open Mixing Mill
-
machine type:
-
testing machine
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE
Product Description
Product Application
|

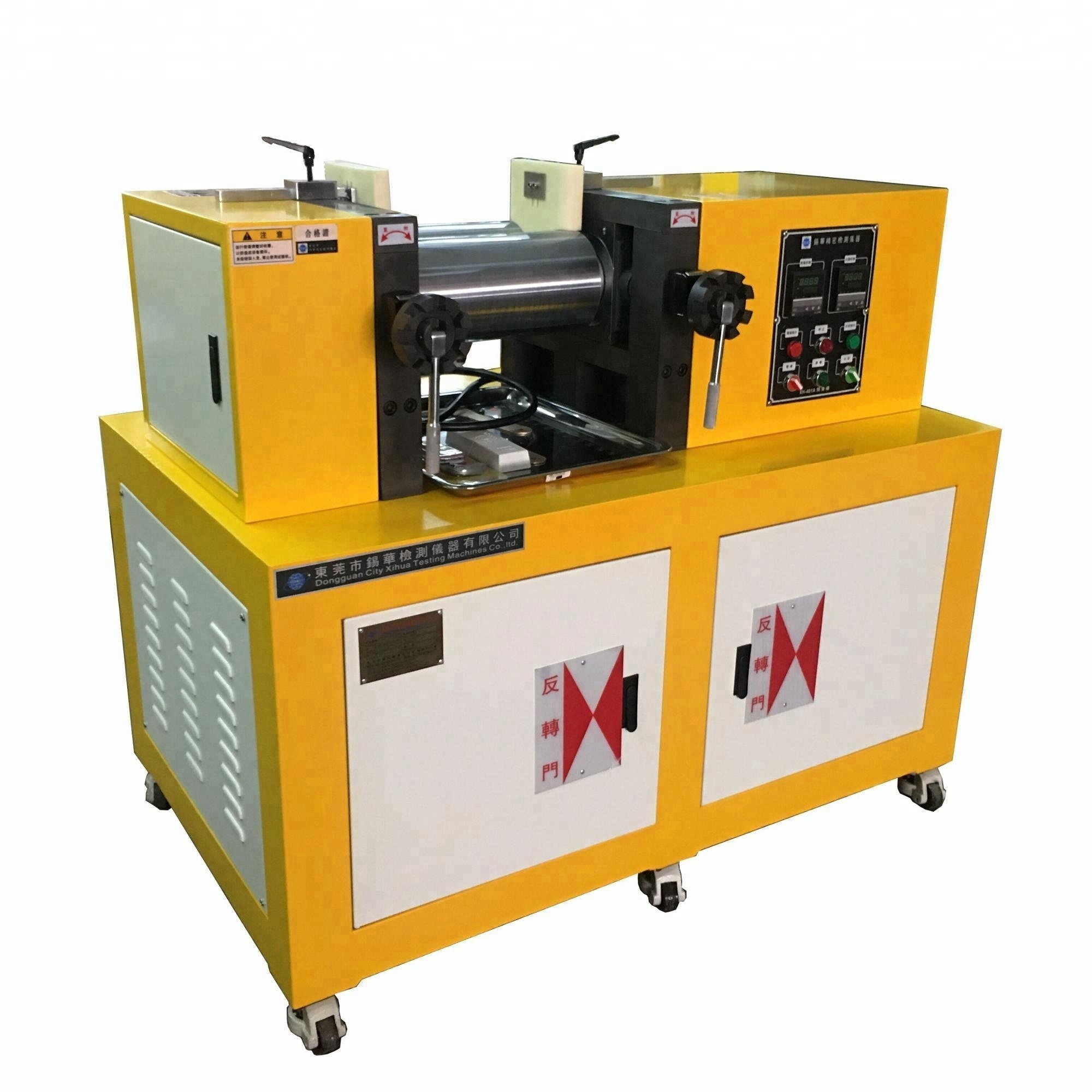

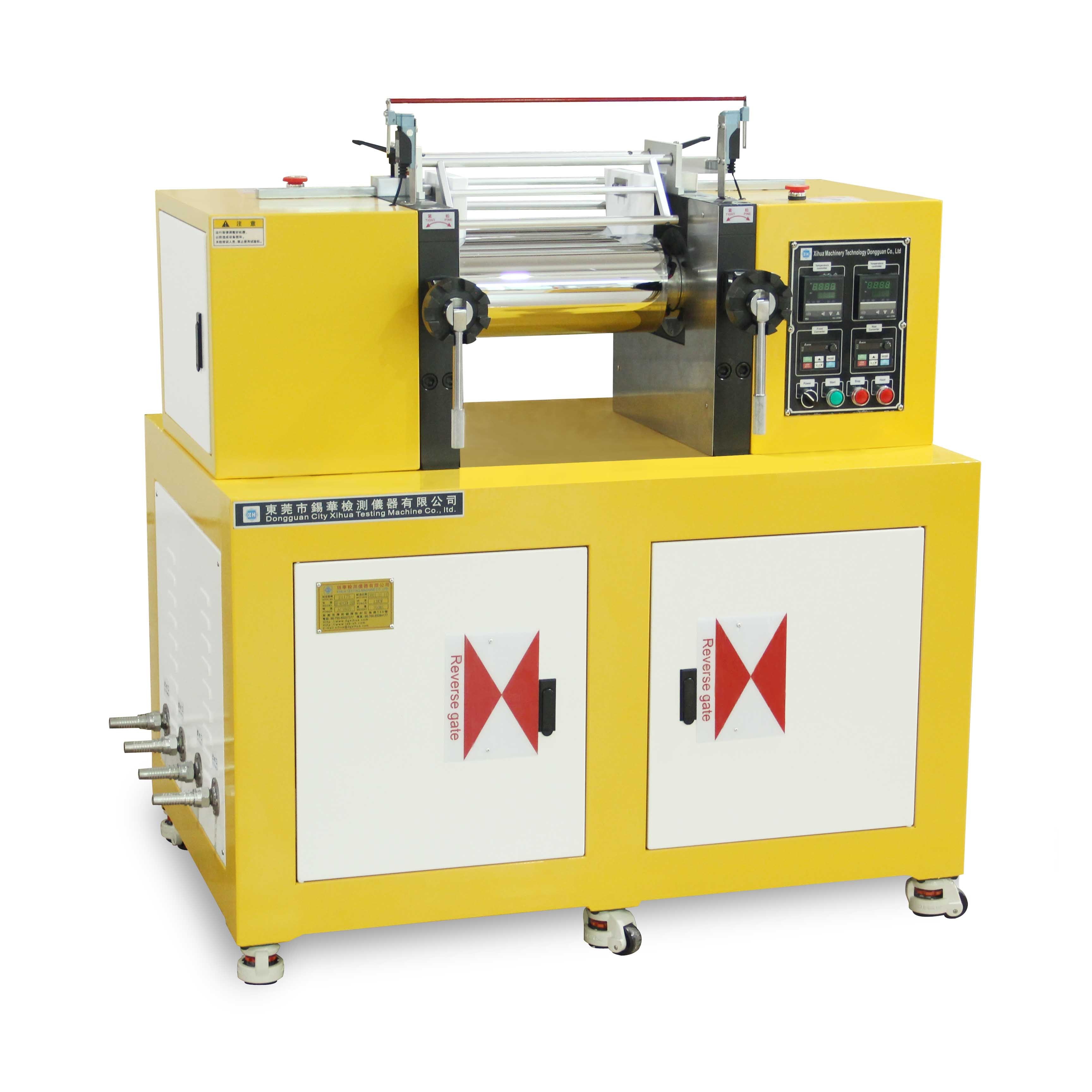

SPECIFICATIONS FOR XH-401CEW-160 TWO ROLL MILL
|
|
|
|
|||
|
Technical Parameter
|
Applicable materials
|
PP, PE, PVC, rubber, etc.
|
|
|||
|
|
Mixing capacity
|
0.5-1kgs or designated
|
|
|||
|
|
Roller diameter
|
160mm
|
|
|||
|
|
Roller width
|
350mm
|
|
|||
|
|
Roller gap
|
0.1 - 5mm (adjustable)
|
|
|||
|
|
Speed of roller
|
0 - 30r/min (self-adjust for speed and speed ratio)
|
|
|||
|
|
Temperature range of the roller
|
room temperature - 300°C
|
|
|||
|
|
Temperature control accuracy
|
±2°C
|
|
|||
|
|
Heating mode
|
electrical heating
|
|
|||
|
|
Cooling mode
|
water cooling
|
|
|||
|
|
Safety device
|
protective cover, safety lever, reverse door, emergency stop button
|
|
|||
|
|
Motor
|
2.2kW (2 Sets)
|
|
|||
|
|
Power supply
|
380V/50Hz/3 phases or Customerized
|
|
|||
Main Features
Certifications
Detailed Images

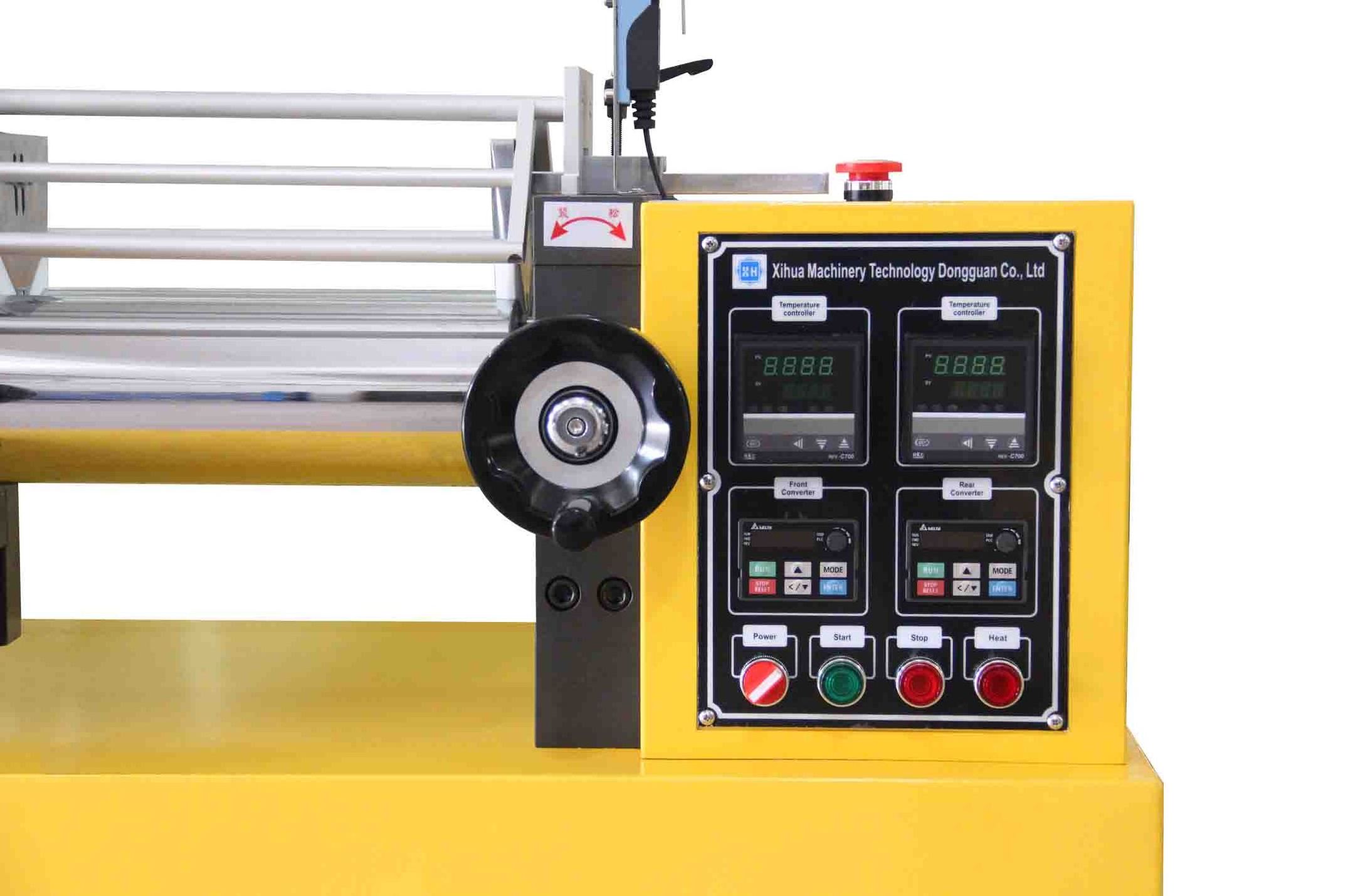

Machine Parts
Main Features
Machine Parts
Main Features
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
1150(L) * 750 (W) * 1450 (D)
|
|
|
Weight
|
500kgs
|
|
|
Packaging Details
|
|
|
